Measurement
| fl | 2 Hz | Lower frequency limit |
| fh | 5,000 Hz | Upper frequency limit |
| amax | 16 | Amplitude range ± |
3 | Number of measurement axis | |
RMSLow, RMSHigh, ISO, KurtosisLow, KurtosisHigh, H | Calculated KPI | |
Yes | Time waveform | |
| ≈m | 0.1 kg | 重量 |
Communication
| f | 2,4 GHz ISM band | Frequency band communication, sensor - gateway |
| l | 100 m | Sensor range (line of sight) |
per NFC | Sensor activation |

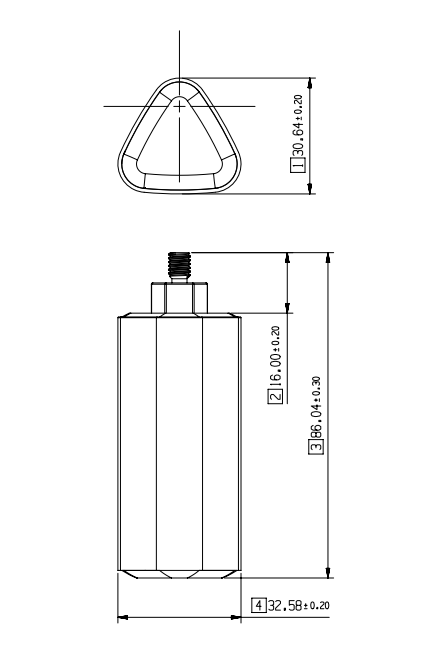

主要尺寸與性能資料
| h | 86.04 mm | Sensor height (with bolt) |
| b1 | 32.58 mm | Sensor width (1) |
| b2 | 30.64 mm | Sensor width (2) |
科技數據
| Tmax | 85 °C | Upper temperature limit |
| Tmin | -40 °C | Lower temperature limit |
IP 69K | Ingress protection | |
| tbat | 5 | Calculated battery life |
您目前的產品型號
| Measurement types | Vibration, Temperature | Vibration, Temperature |
| Communication sensor - gateway | Wirepas | Wirepas mesh network |
| Mounting bolt | M6 | DIN13-1 metric thread |
| Explosion Protection | none | none |
