BKE.TKSD45-SO

Braking/clamping element BKE.TKSD45-SO

加入詢價

主要尺寸與性能資料

H	60 mm	height sytem
	沒有	adapter plate
B	85 mm	width of braking and clamping element
L	141 mm	length braking and clamping element
	4,300 N	clamping force ¹
≈m	2.96 kg	重量

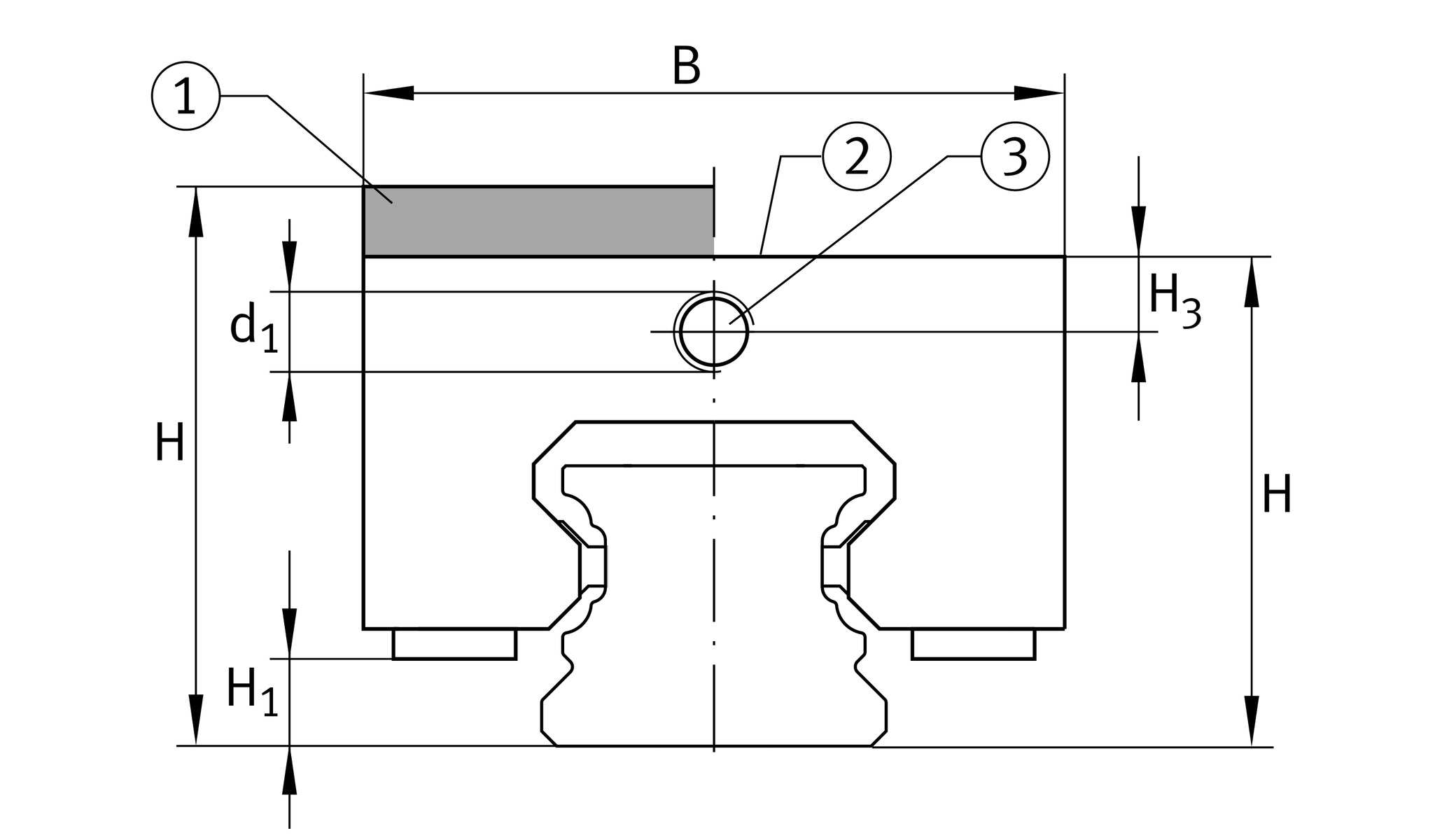

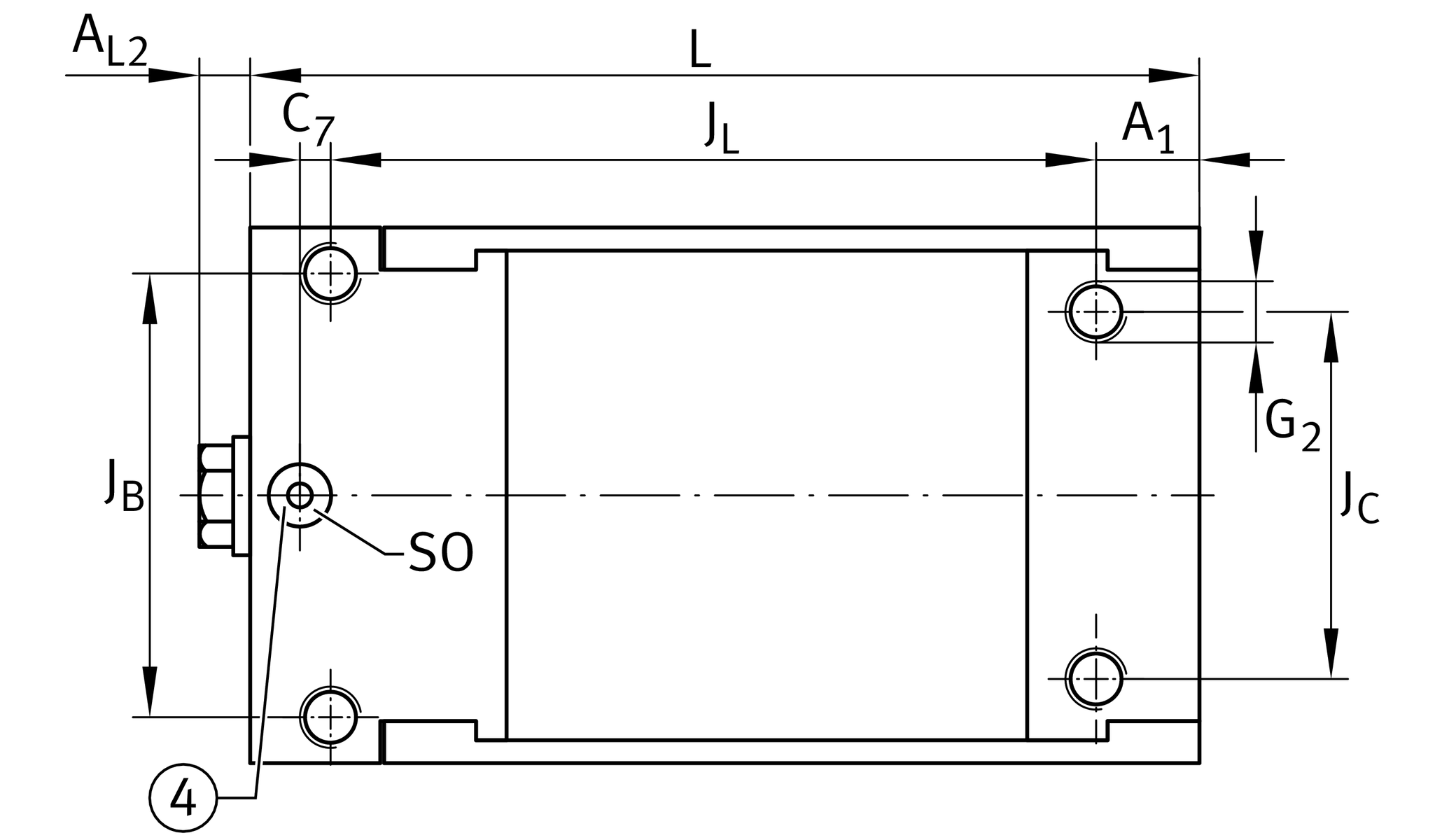

尺寸

J_B	70 mm	hole pattern
J_C	60 mm	hole pattern
A₁	15 mm	distance
J_L	113 mm	hole pattern
H₁	11.8 mm	space (system)
H₃	10 mm	mounting dimension
A_L2	5 mm	distance
d₁	M8x1	size thread
SO	7x1,5	O-ring ²
	6 mm	max. diameter of the oil feed hole
G₂	M10	size thread above for DIN ISO 4762-12.9
M_A	83 Nm	tightening torque above ³

您目前的產品型號

Size code	45
Oil connector	SO
