科技數據

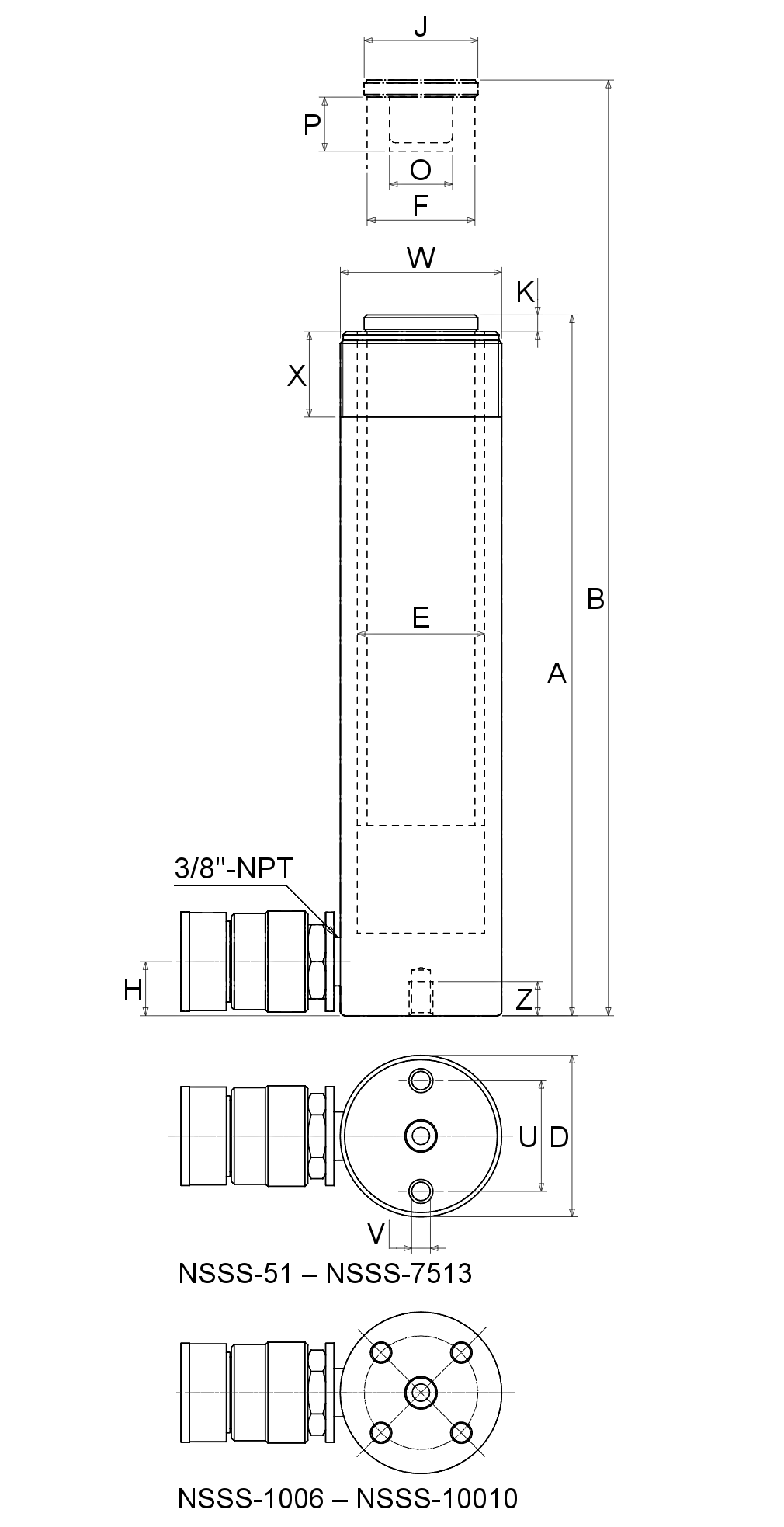

75 | Capacity class (tons) | |
| sp | 155 mm | Stroke |
| Fa | 791 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 1,752 cm³ | Oil capacity |
| A | 285 mm | Height, retracted |
| B | 440 mm | Height, extended |
| D | 152 mm | 外徑 |
| E | 120 mm | Cylinder 內徑 |
| F | 95 mm | Plunger diameter |
| H | 30 mm | Base to advance port |
| J | 70 mm | Saddle diameter |
| K | 3 mm | Saddle protrusion from plunger |
| W | 5¾"-12 UN | Collar thread (UN) |
| X | 45 mm | Collar thread, length |
| ≈m | 29.5 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 75T | Capacity class 75 |
