ARCALUB-X.PINION-MD6,0-Z17-B60-G-G
Lubrication gear ARCALUB-X.PINION-MD6,0-Z17-B60-G-G
加入詢價
科技數據
Relubrication of tooth sets
Usage
straight teeth
Design
axial
Lubricant feed
open cell PU foam
Material
top
-30 °C ... +140 °C
Operating temperature
5 m/s
Max. permissible circumferential speed at 外徑
Oil, greases up to NLGI 2
Lubricant

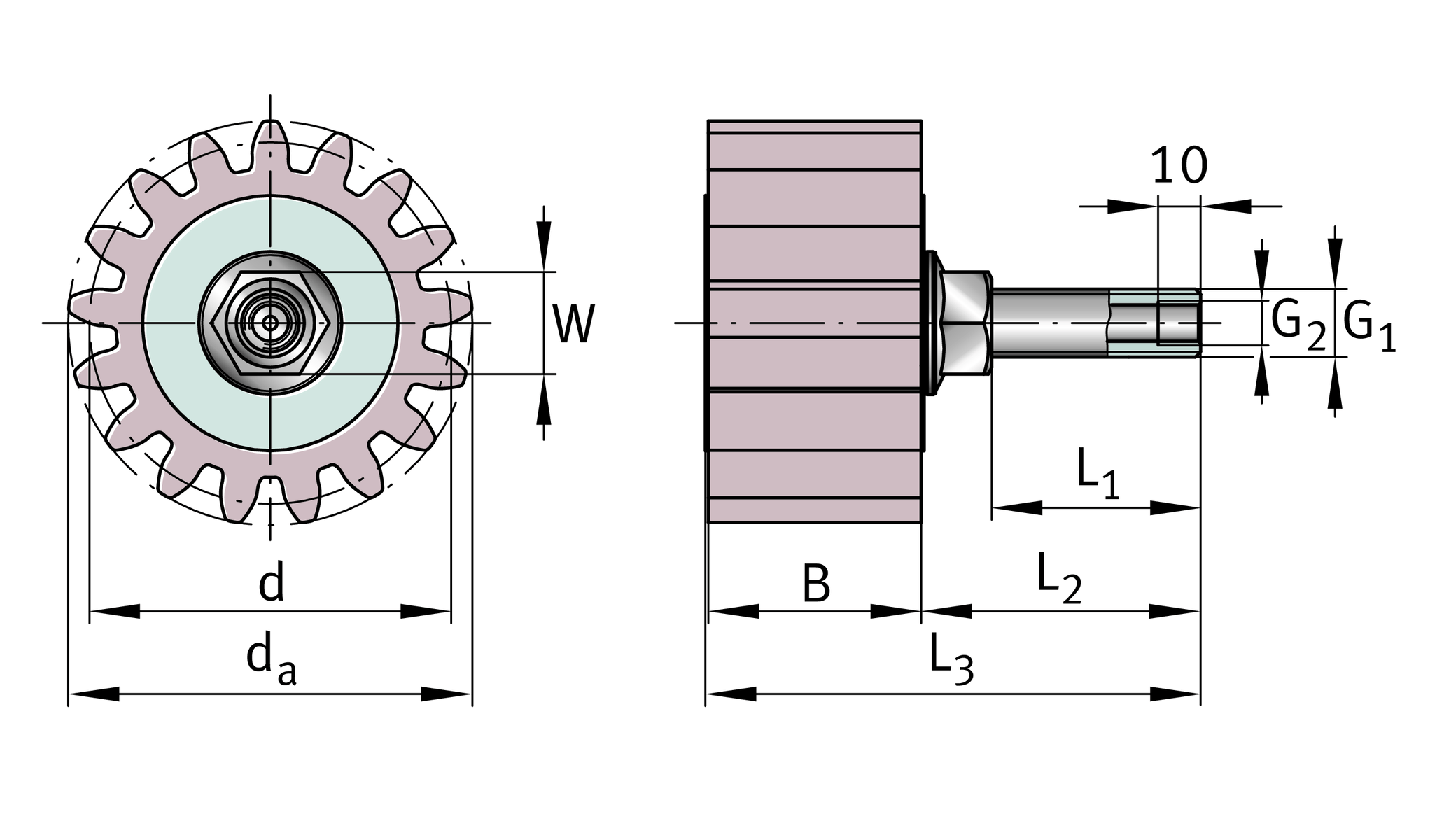

m
6 mm
Modulus
z
17
Teeth number
d
102 mm
Pitch circle diameter
da
114 mm
B
60 mm
L1
49 mm
L2
75.7 mm
L3
126.4 mm
G1
M16
G2
M10x1
W
24 mm
平面寬度s
≈m
0.7 kg
重量

您目前的產品型號
VersionGLubrication gears, straight teeth
