ARCALUB-X.PINION-MD5,0-Z17-B50-G-W
Lubrication gear ARCALUB-X.PINION-MD5,0-Z17-B50-G-W
加入詢價
科技數據
Relubrication of tooth sets
Usage
straight teeth
Design
radial
Lubricant feed
open cell PU foam
Material
top
-30 °C ... +140 °C
Operating temperature
5 m/s
Max. permissible circumferential speed at 外徑
Oil, greases up to NLGI 2
Lubricant

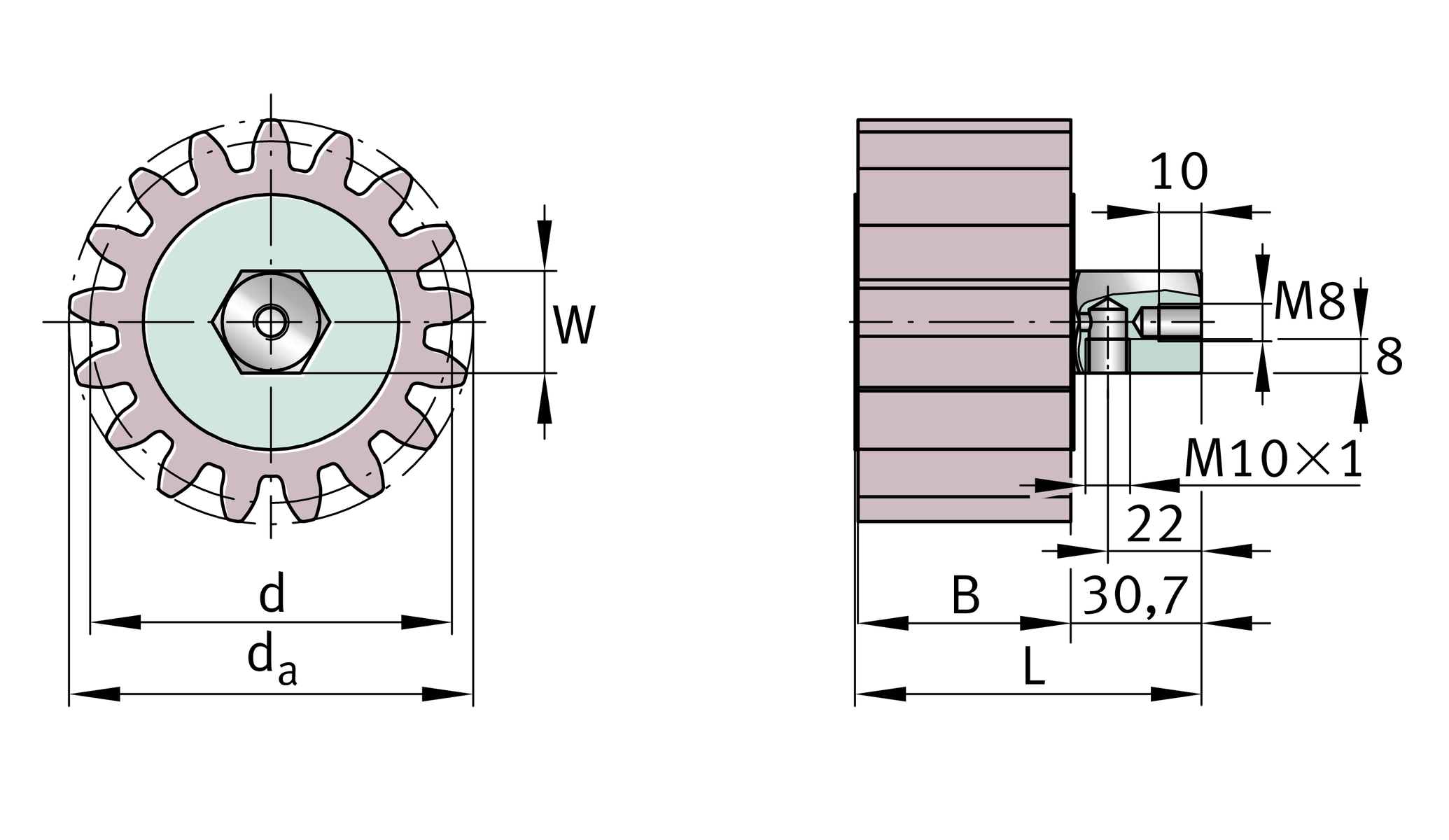

m
5 mm
Modulus
z
17
Teeth number
d
85 mm
Pitch circle diameter
da
95 mm
B
50 mm
L
81.4 mm
≈m
0.6 kg
重量

您目前的產品型號
VersionGLubrication gears, straight teeth
