科技數據
Relubrication of tooth sets | Usage | |
left hand helical teeth | Design | |
axial | Lubricant feed | |
open cell PU foam | Material | |
| top | -30 °C ... +140 °C | Operating temperature |
5 m/s | Max. permissible circumferential speed at 外徑 | |
Oil, greases up to NLGI 2 | Lubricant | |

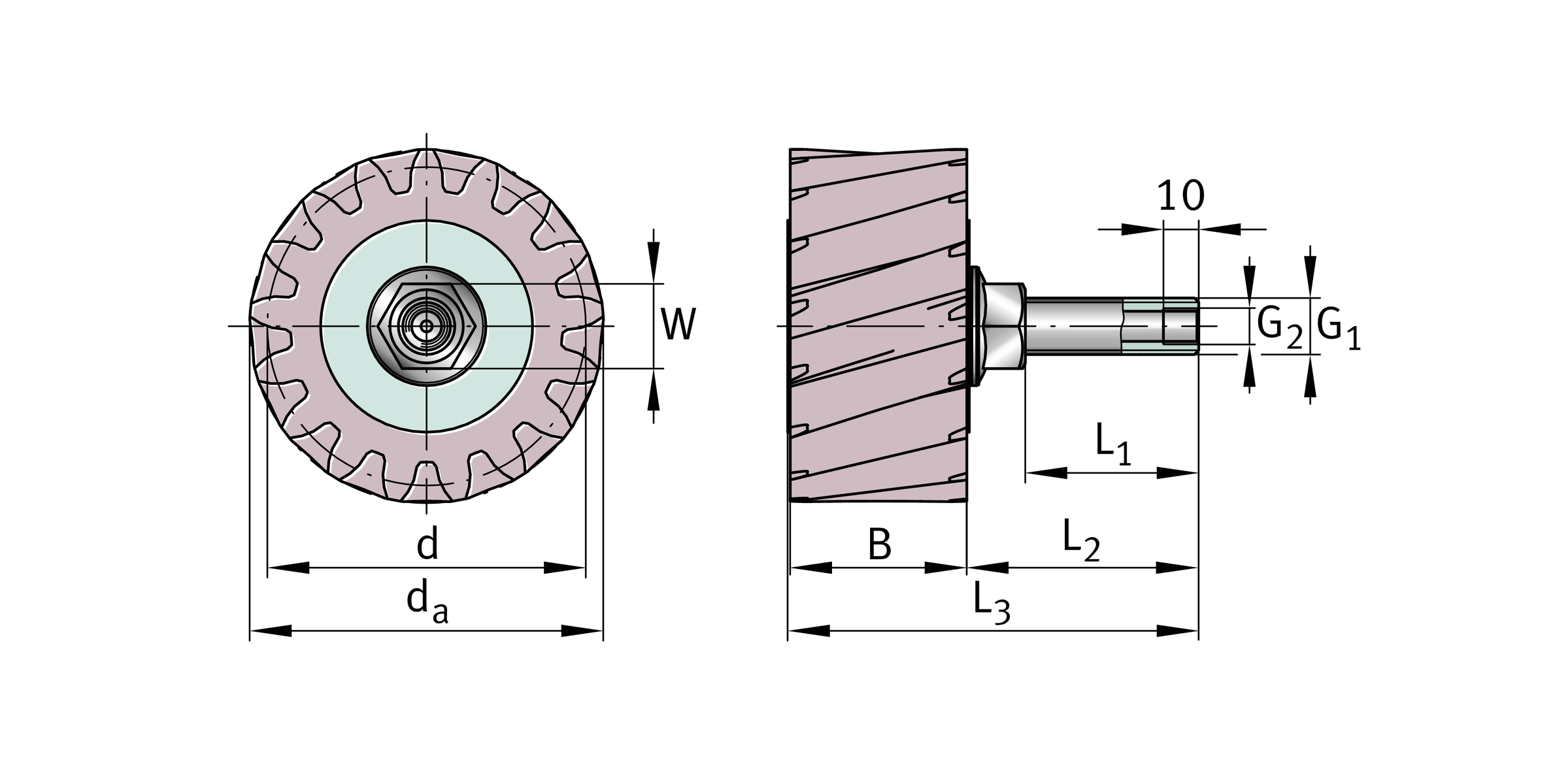

| m | 3 mm | Modulus |
| z | 17 | Teeth number |
| d | 54.11 mm | Pitch circle diameter |
| da | 60.1 mm | |
| B | 30 mm | |
| L1 | 30 mm | |
| L2 | 40.5 mm | |
| L3 | 71.2 mm | |
| G1 | M10 | 線 |
| G2 | M6 | 線 |
| W | 15 mm | 平面寬度s |
| β | 19.53 ° | Helix angle |
| ≈m | 0.4 kg | 重量 |
您目前的產品型號
| Version | SL | Lubrication gears, left hand helical teeth |
