ARCALUB-X.PINION-MD10,0-Z17-B100-G-G

Lubrication gear ARCALUB-X.PINION-MD10,0-Z17-B100-G-G

加入詢價

科技數據

	Relubrication of tooth sets	Usage
	straight teeth	Design
	axial	Lubricant feed
	open cell PU foam	Material
t_op	-30 °C ... +140 °C	Operating temperature
	5 m/s	Max. permissible circumferential speed at 外徑
	Oil, greases up to NLGI 2	Lubricant

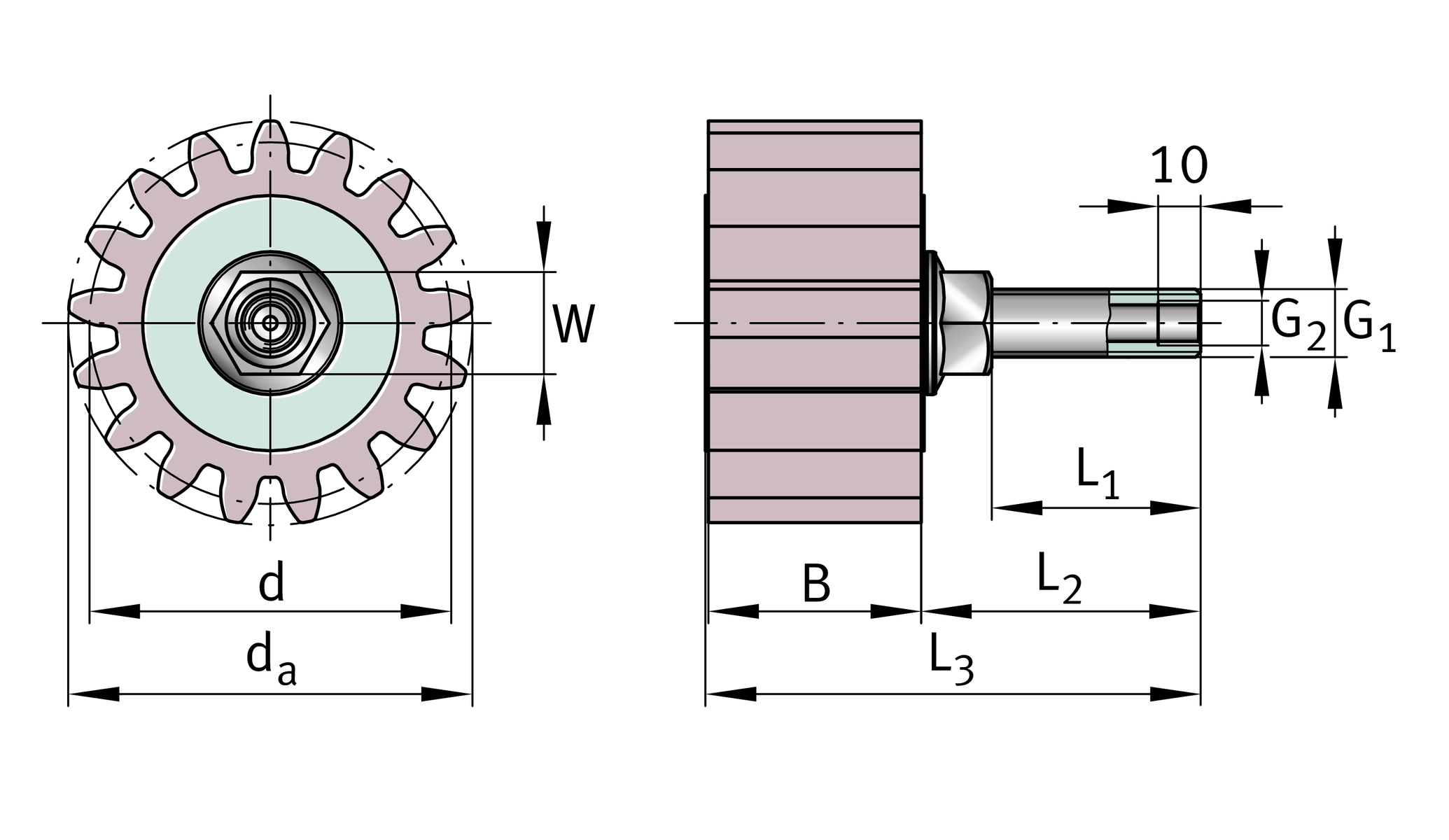

m	10 mm	Modulus
z	17	Teeth number
d	170 mm	Pitch circle diameter
d_a	190 mm
B	100 mm
L₁	49 mm
L₂	115.7 mm
L₃	166.4 mm
G₁	M16	線
G₂	M10x1	線
W	24 mm	平面寬度s
≈m	0.9 kg	重量

您目前的產品型號

Version	G	Lubrication gears, straight teeth
