科技數據
Lubrication of chains | Usage | |
Simplex (single-row) | Design | |
Pinion: plastic, roller: open cell PU foam | Material | |
| top | 0 °C … +60 °C | Operating temperature |
7 m/s | Max. permissible circumferential speed at 外徑 | |
Oil | Lubricant | |
16 B-1 | Chain type according to ISO 606 | |

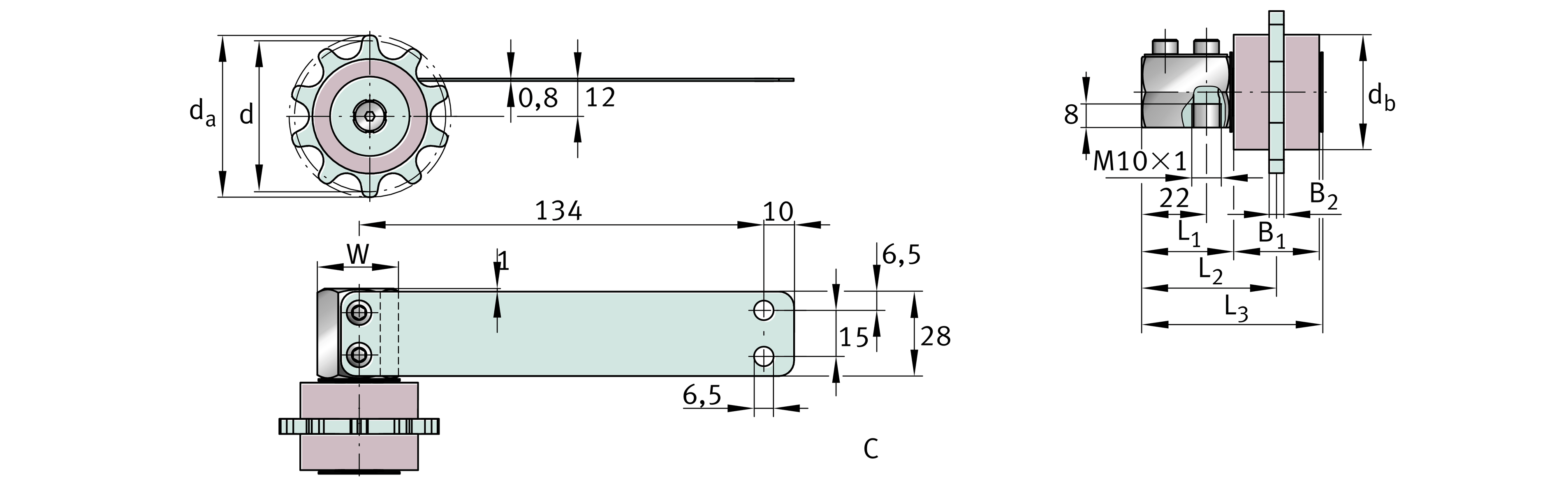

| z | 8 | Teeth number |
| d | 66.37 mm | Pitch circle diameter |
| da | 75 mm | |
| db | 48 mm | |
| B1 | 40 mm | |
| B2 | 10 mm | |
| L1 | 30.7 mm | |
| L2 | 50.7 mm | |
| L3 | 71.4 mm | |
| W | 24 mm | 平面寬度s |
| ≈m | 0.4 kg | 重量 |
您目前的產品型號
| Version | AB-/B-1 | Chain lubrication pinions, simplex design |
