科技數據
Lubrication of chains | Usage | |
Duplex (double-row) | Design | |
axial | Lubricant feed | |
Pinion: plastic, roller: open cell PU foam | Material | |
| top | 0 °C … +60 °C | Operating temperature |
7 m/s | Max. permissible circumferential speed at 外徑 | |
Oil | Lubricant | |
12 B-2 | Chain type according to ISO 606 | |

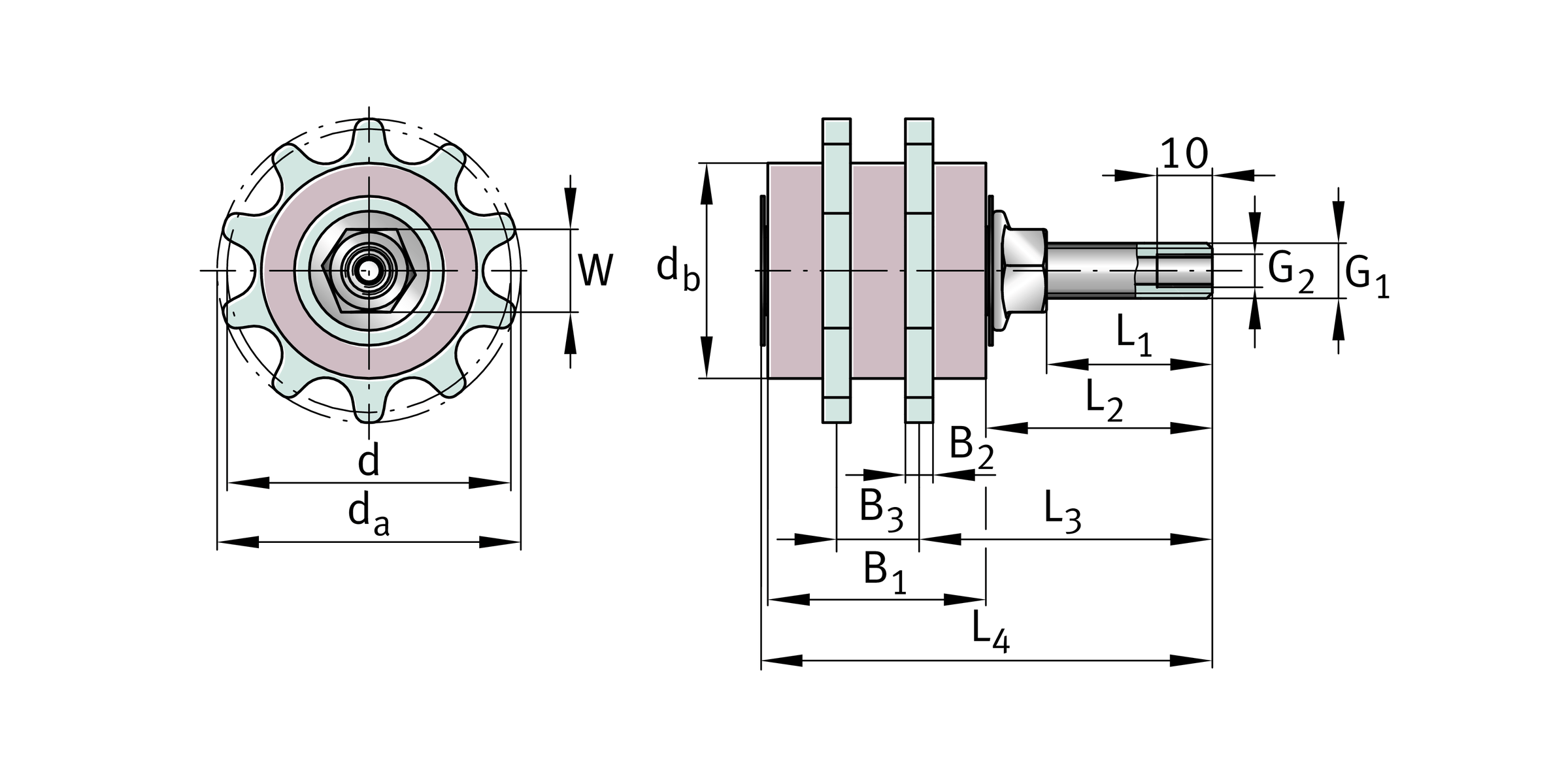

| z | 8 | Teeth number |
| d | 49.78 mm | Pitch circle diameter |
| da | 55 mm | |
| db | 36 mm | |
| B1 | 29 mm | |
| B2 | 5 mm | |
| B3 | 15 mm | |
| L1 | 30 mm | |
| L2 | 41 mm | |
| L3 | 55.5 mm | |
| L4 | 71.2 mm | |
| G1 | M10 | 線 |
| G2 | M6 | 線 |
| W | 15 mm | 平面寬度s |
| ≈m | 0.4 kg | 重量 |
您目前的產品型號
| Version | AB-/B-2 | Chain lubrication pinions, duplex design |
