科技數據
| U | 400 V | Operating voltage |
| f | 50 - 60 Hz | Power frequency |
| P | 8 kVA | Power consumption |
| I | 20 A | Current rating |
| HR | < 2 A/cm | Residual magnetism |
| ≈m | 85 kg | 重量 |

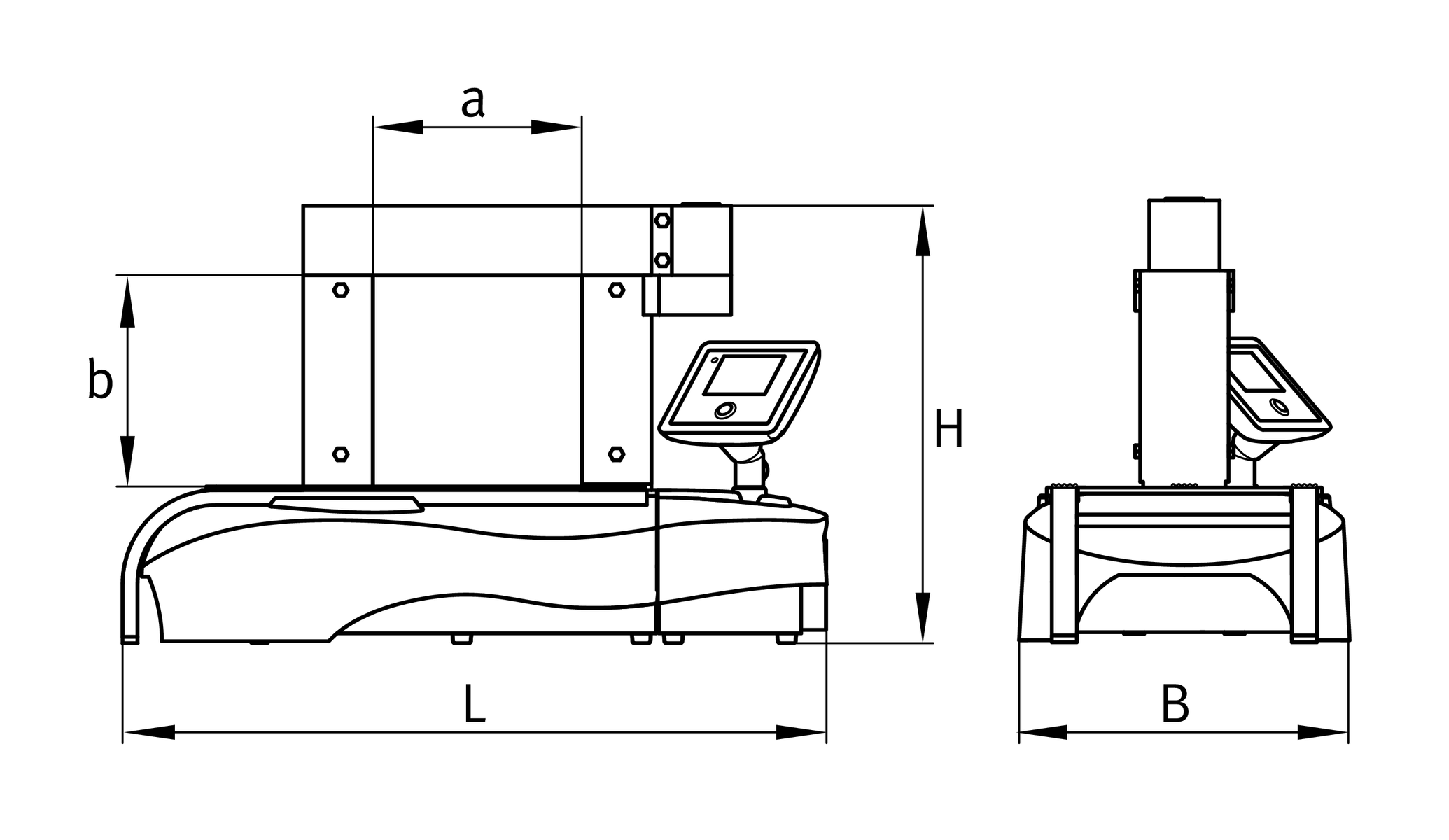

尺寸
695 mm | Length HEATER | |
330 mm | Width HEATER | |
370 mm | Height HEATER | |
| a | 210 mm | |
| b | 210 mm |
Workpiece to be heated
100 mm | Min. 內徑 workpiece (by using the ledge in 供貨範圍) | |
| ØAmax | 600 mm | Max. 外徑 workpiece |
| mb max | 200 kg | Max. workpiece weight |
| mc | 150 kg | Max. workpiece weight: other component |
