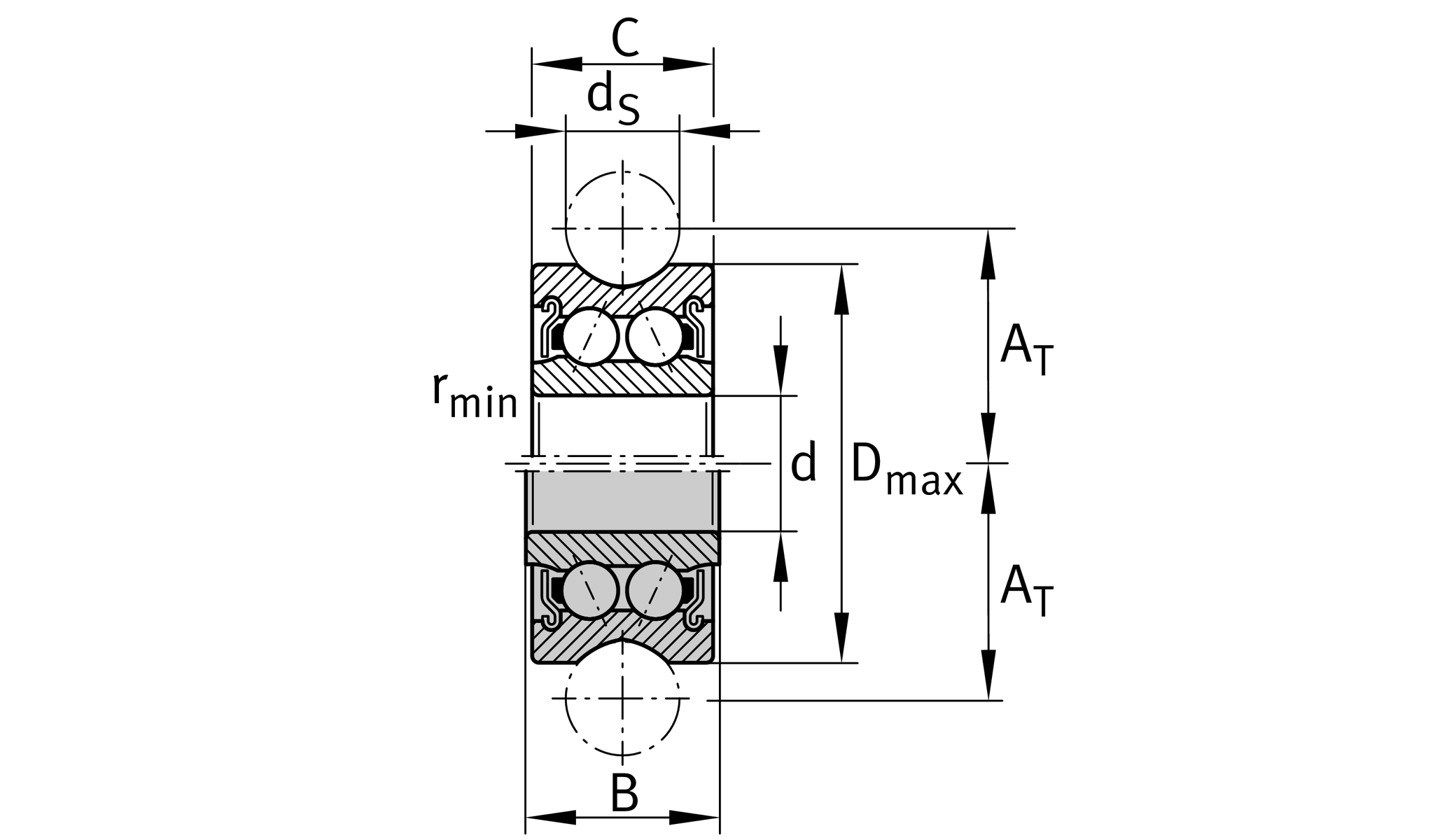

主要尺寸與性能資料
| d | 12 mm | |
| Dmax | 42 mm | |
| B | 19 mm | |
| ≈m | 0.137 kg | 重量 |
安裝尺寸
| AT | 24 mm | |
| C | 19 mm | |
| Da | 38.95 mm | Diameter of rolling |
| ds | 10 mm | |
| rmin | 0.6 mm |
Main dimensions
| Cr w | 13,200 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 7,700 N | Effective static load rating as track roller (radial) |
| Cur w | 370 N | Limit of fatigue load |
| Fr per | 6,400 N | Permissible dynamic limit load |
| F0r per | 15,400 N | Permissible static limit load |
附加資訊
| LFE/LFZ | siehe Katalog: LF1 | Possible roller-pin combination |
您目前的產品型號
| Size code | 5301 | |
| Seal | 2Z | 兩側間隙密封 |
