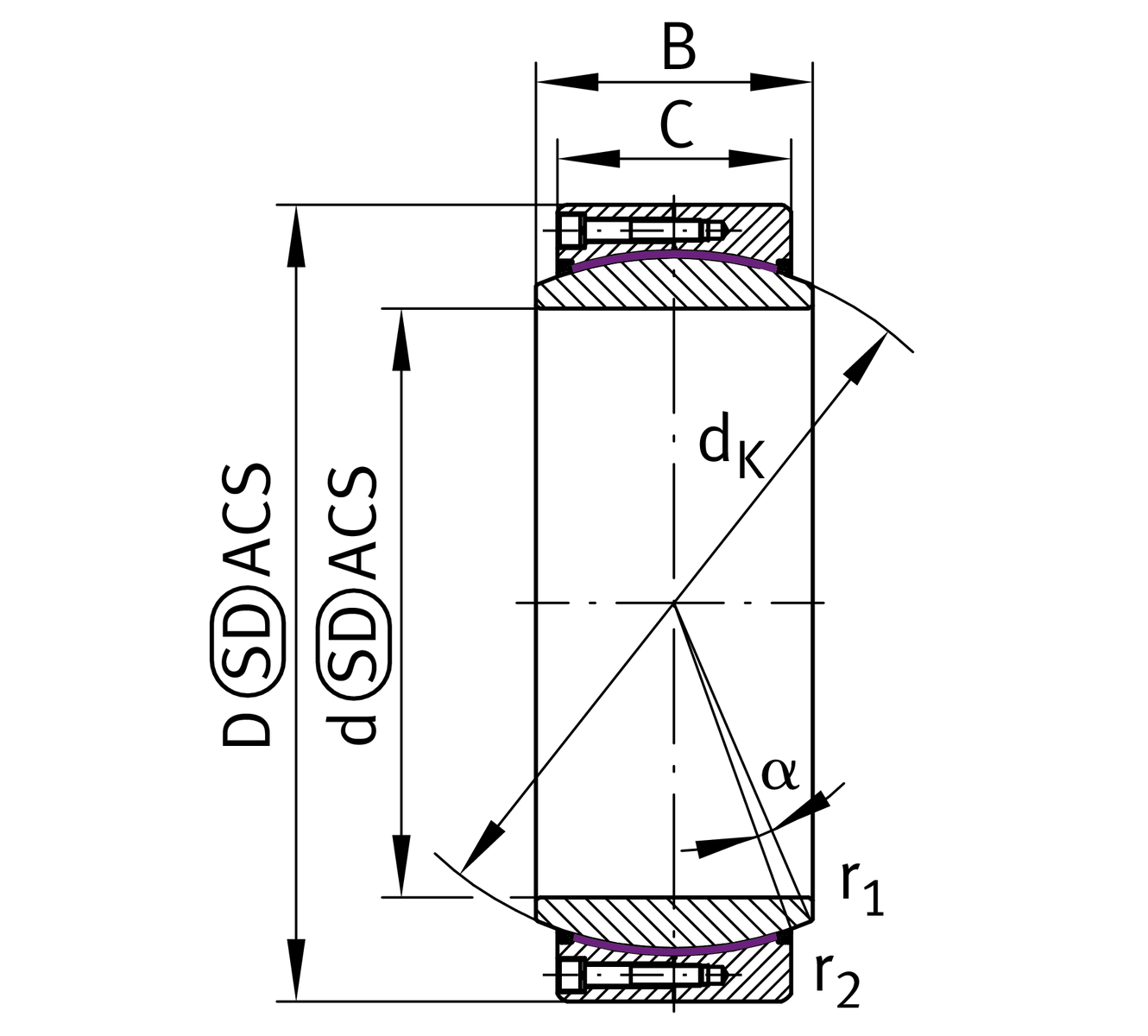

主要尺寸與性能資料
| d | 670 mm | 內徑 bearing |
| D | 900 mm | 外徑 bearing |
| B | 308 mm | 內圈寬度 |
| C | 260 mm | Width Outer ring |
| Cr | 54,600,000 N | 基本額定動載荷，徑向 |
| C0r | 91,100,000 N | 基本額定靜態負荷，徑向 |
| ≈m | 595.2 kg | 重量 |
安裝尺寸
| r1smin | 3 mm | 邊緣間距 |
| r2smin | 6 mm | 邊緣間距 |
| Da min | 746 mm | 軸承座 Connection Diameter |
| damax | 722 mm | Connection measurement, inner ring |
尺寸
| dK | 785 mm | 球直徑 |
| α | 3.7 ° | 傾斜角度 |
| DOT | 0.018 mm | 外徑、公差上限 |
| DUT | -0.09 mm | 外徑，公差下限 |
| BOT | 0 mm | 內圈寬度, 公差上限 |
| dUT | -0.075 mm | 內徑 bearing, 較低的公差 |
| BUT | -0.75 mm | 內圈寬度, 較低的公差 |
| dOT | 0 mm | 內徑 bearing, 公差上限 |
| COT | 0 mm | Width outer ring, 公差上限 |
| CUT | -1.2 mm | Width outer ring, 較低的公差 |
| Gr | 0 - 0,16 | 徑向間隙 |
| Grmax | 0.16 mm | 最大徑向間隙 |
| Grmin | 0 mm | 徑向間隙，最小 |
溫度範圍
| Tmin | -40 °C | 最低工作溫度 |
| Tmax | 120 °C | 最高操作溫度 |
您目前的產品型號

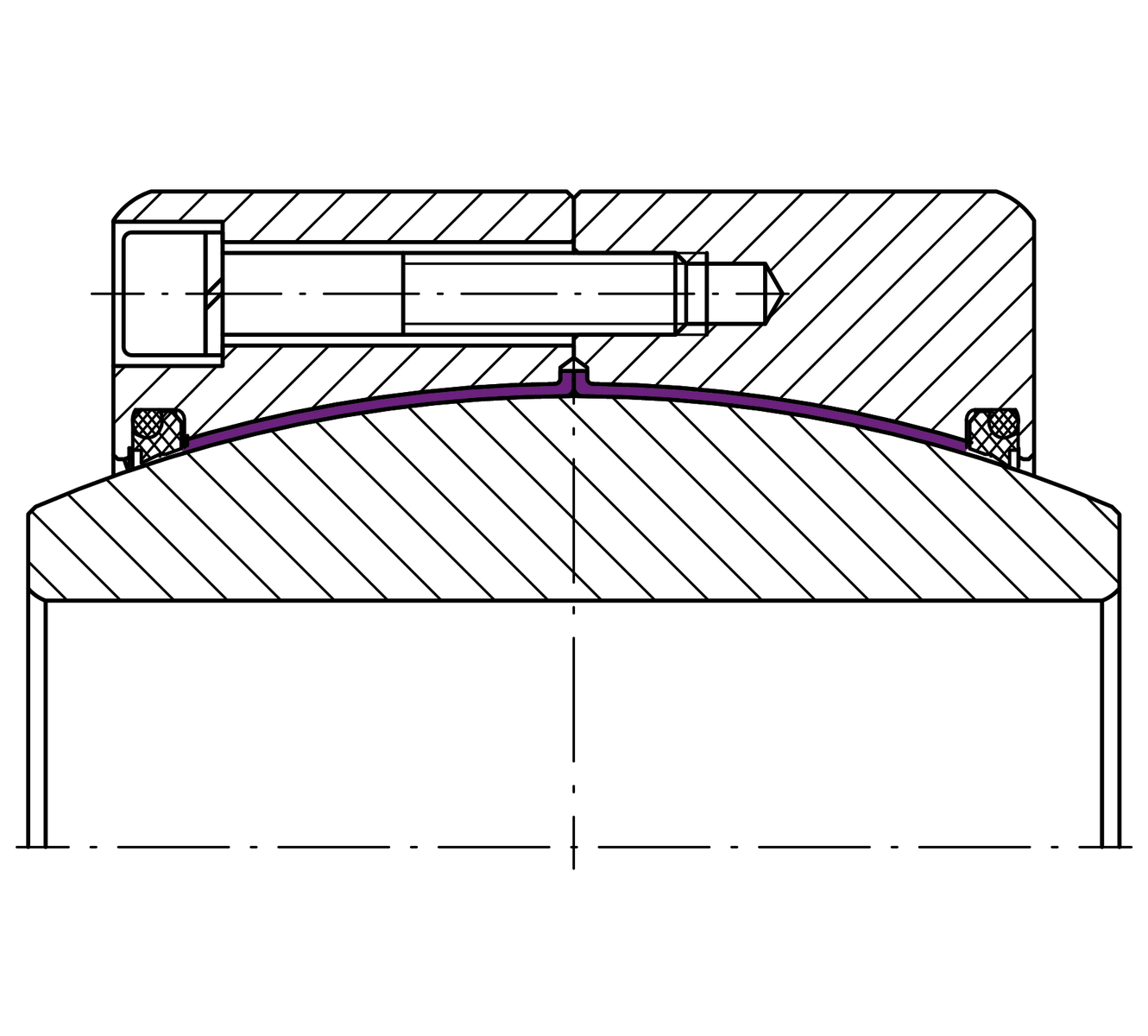

| Sealing | 2RS2 | lip seals with increased sealing action on both sides |
| Bore lining | 沒有 | |
| Coating | G8 | Outer ring with Corrotect ZN Coating, curved and end surfaces of inner ring with hard chromium coating |
| Material | Steel | Steel |
| Fabric | W11 | For low contact pressures (starting as low as 1 N/mm²) and minimal friction |
