FAG INA Schaeffler
FAG
MB14
Securing plate MB14
加入詢價

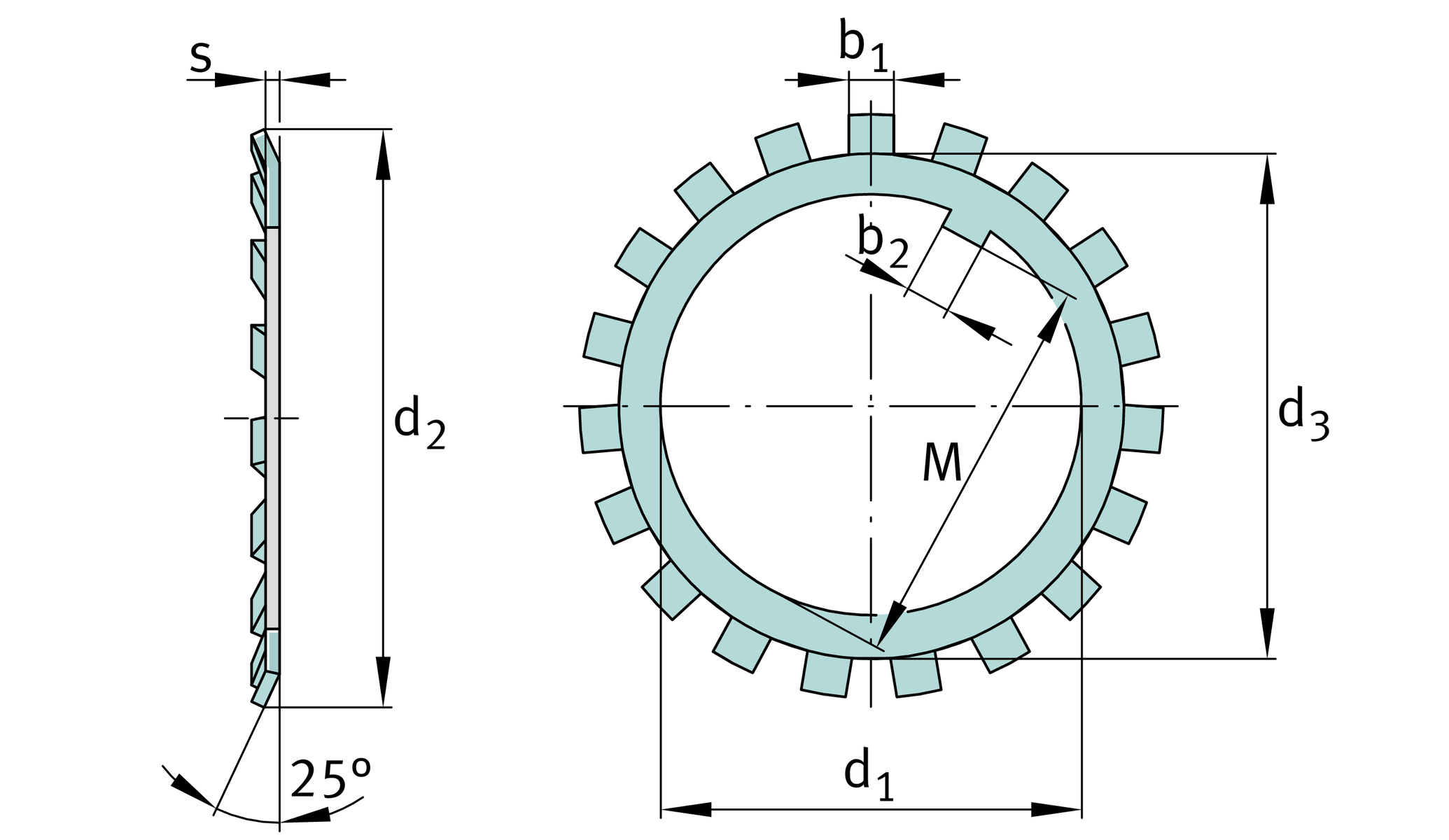

主要尺寸與性能資料
d1
70 mm
內徑
d2
98 mm
外徑
s
1.5 mm
厚度
≈m
32 g
重量

安裝尺寸
d3
85 mm
Plant diameter outside
b2
8 mm
Distance lug
M
66.5 mm
Distance lug
b1
8 mm
Width lock washer tab

附加資訊
100
Counted quantity
