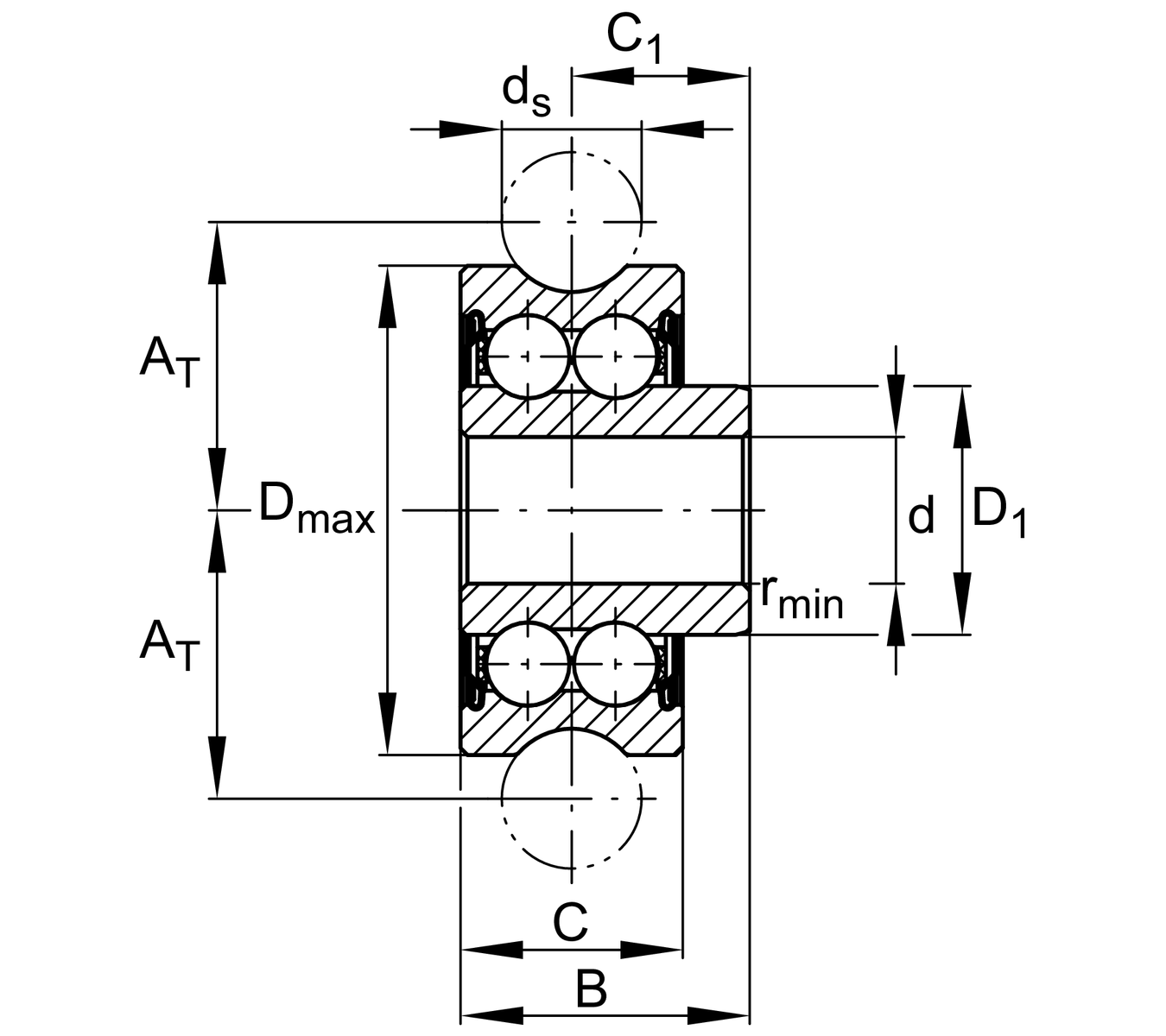

主要尺寸與性能資料
| d | 6.1 mm | |
| Dmax | 24 mm | |
| B | 15.1 mm | |
| ≈m | 25 g | 重量 |
安裝尺寸
| AT | 14 mm | |
| C | 11 mm | |
| C1 | 9.6 mm | |
| D1 | 12.6 mm | |
| D1 Tol | j6 | |

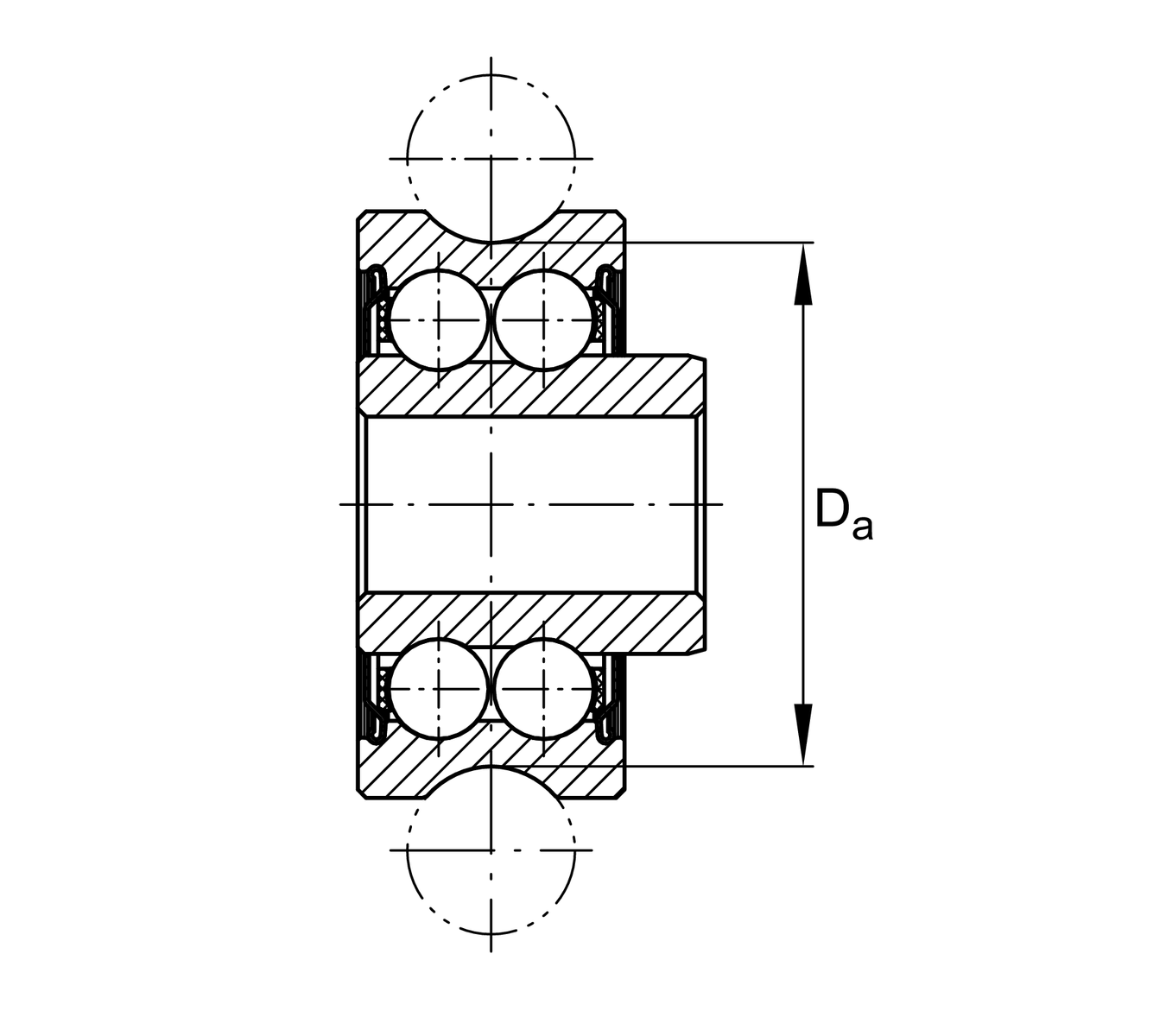

| Da | 22.8 mm | Diameter of rolling |
| ds | 6 mm | |
| rmin | 0.5 mm |
Main dimensions
| Cr w | 4,100 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 2,300 N | Effective static load rating as track roller (radial) |
| Cur | 115 N | Limit of fatigue load |
| Fr per | 2,550 N | Permissible dynamic limit load |
| F0r per | 4,600 N | Permissible static limit load |
您目前的產品型號
| Size code | 50/8 | |
| Seal | 2Z | 兩側間隙密封 |
