INA
ADE26
Covering strip ADE26
加入詢價

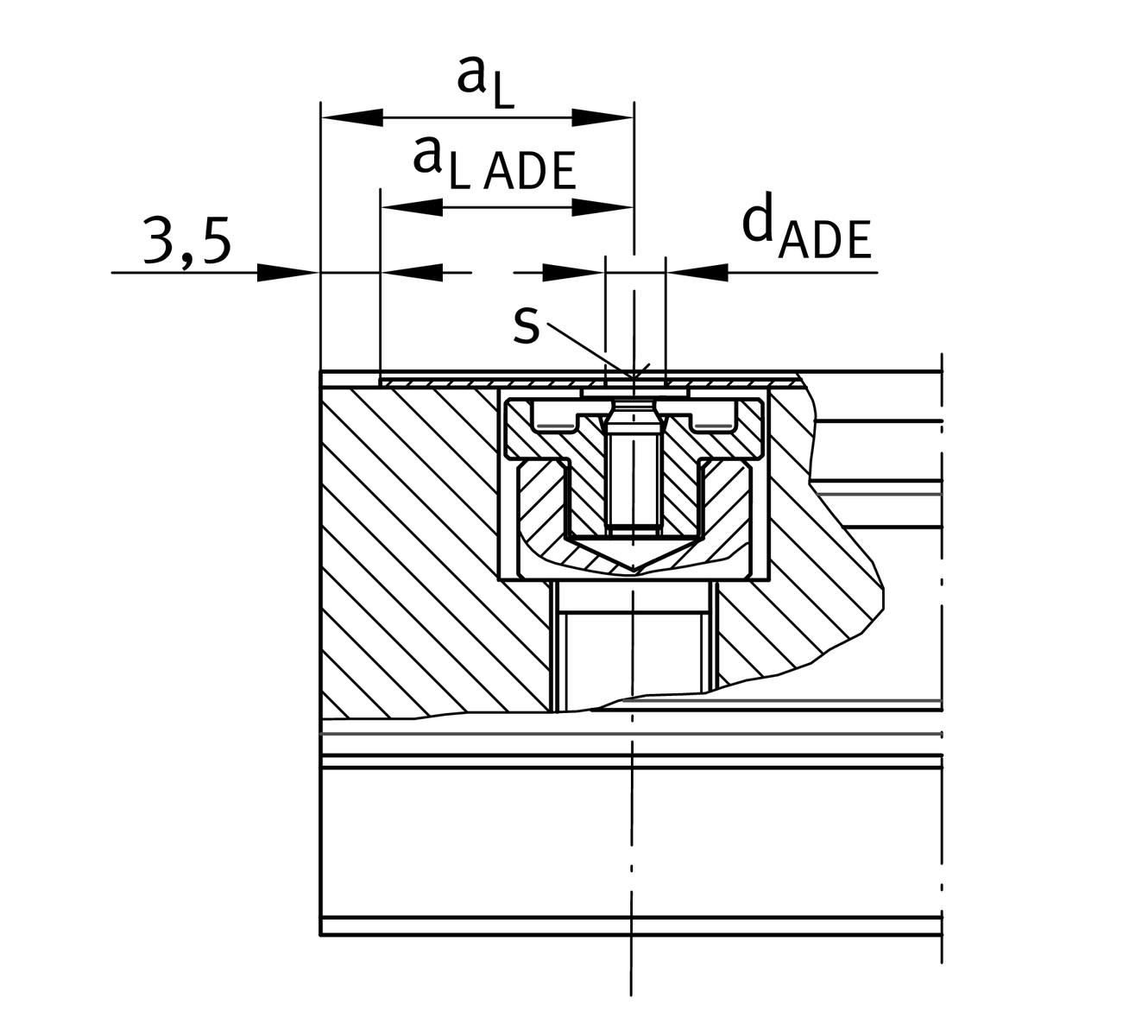

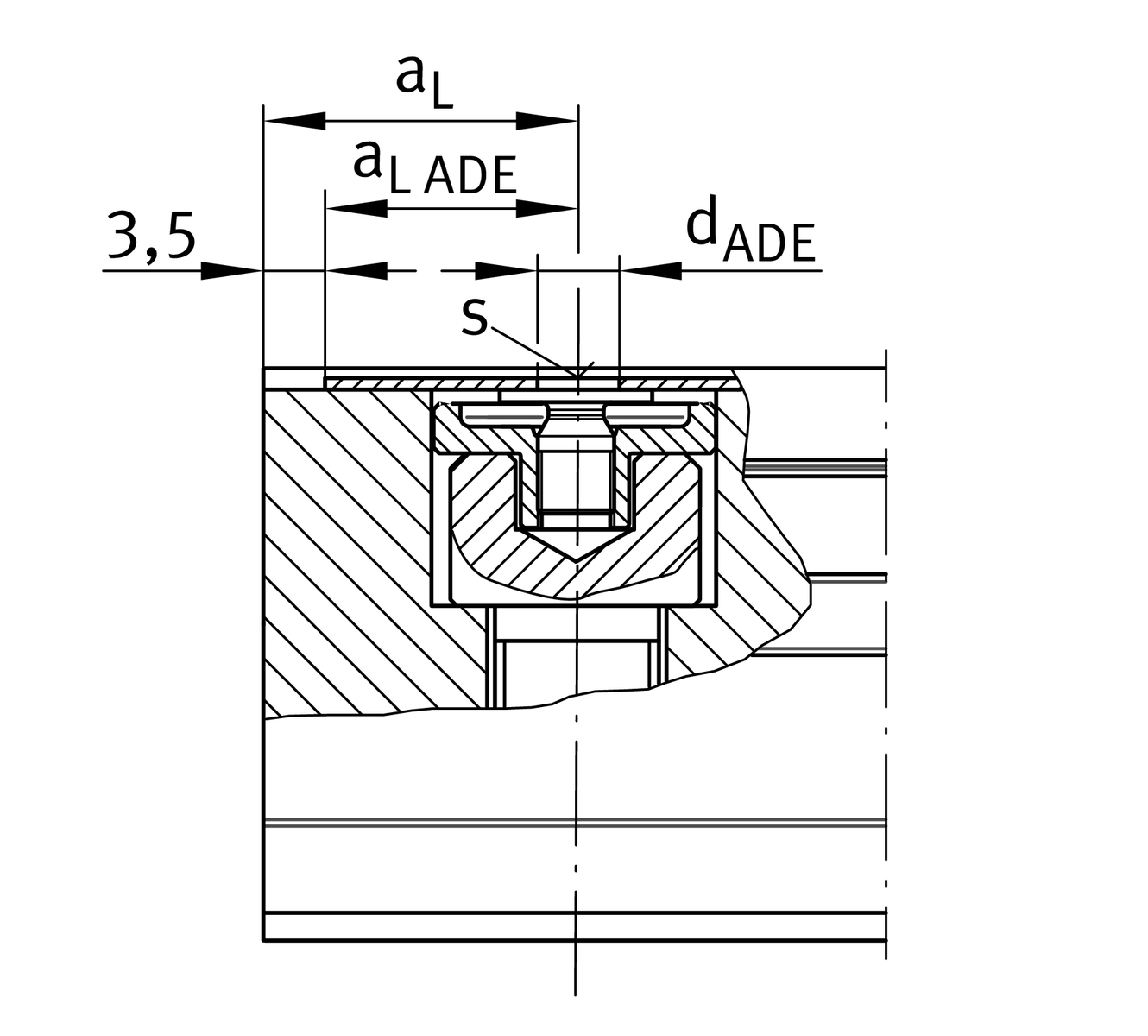

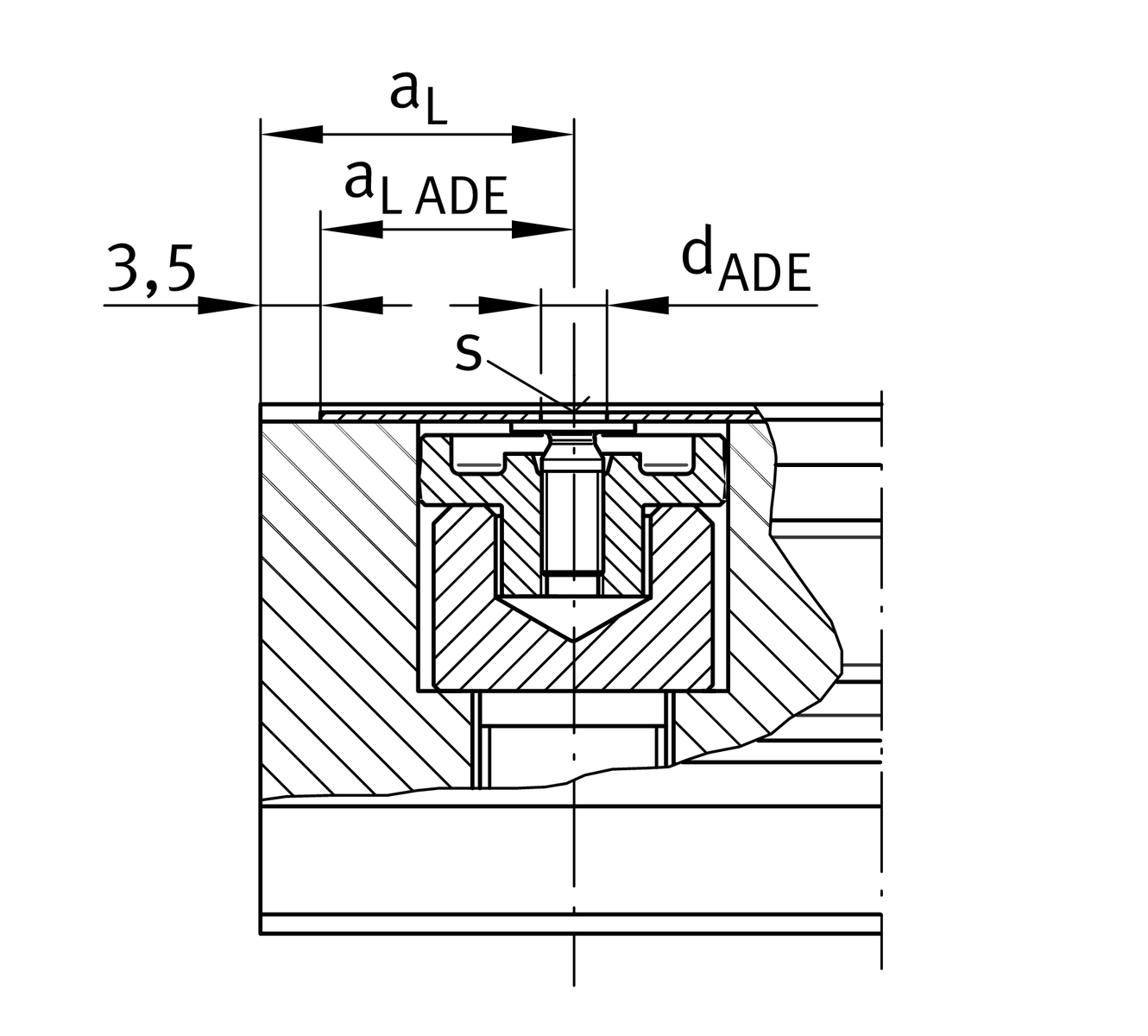

Main dimensions
| dADE | 3.9 mm | |
| S | 0.6 mm | |
| b1 | 26 mm | |
| h2 | 1.1 mm | |
| lmin | 360 mm | |
| aLmin | 16.2 mm | |
| aLmax | 103.5 mm | |
附加資訊
| MSATZ.ADE26-0010 | mounting set |
| TKVD55-B-ADE | usable rails |
| TSX55-E-ADE | usable rails |
您目前的產品型號
| Material name | ADE | |
| Size code | 26 | |
加入詢價
