INA
ADE22
Covering strip ADE22
加入詢價

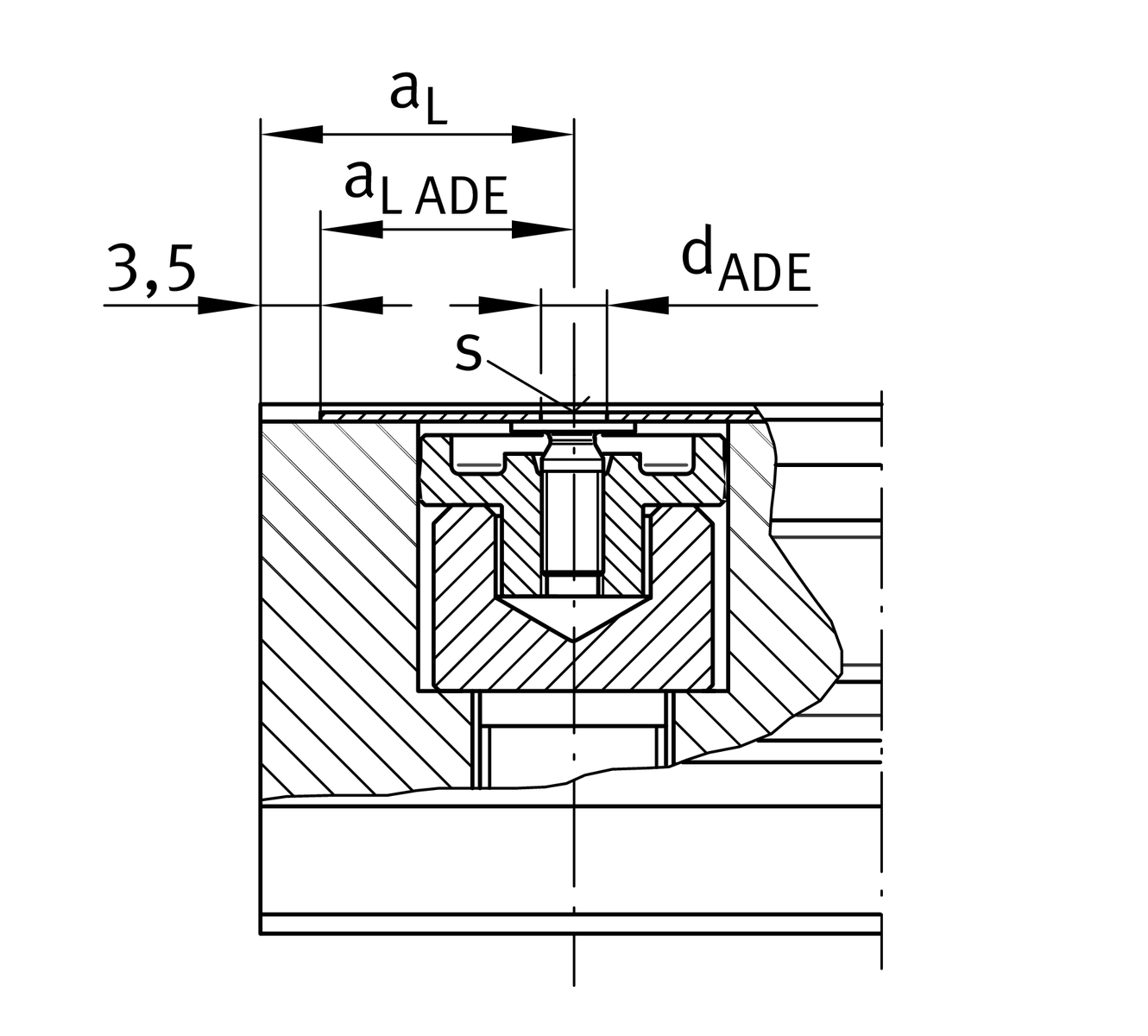

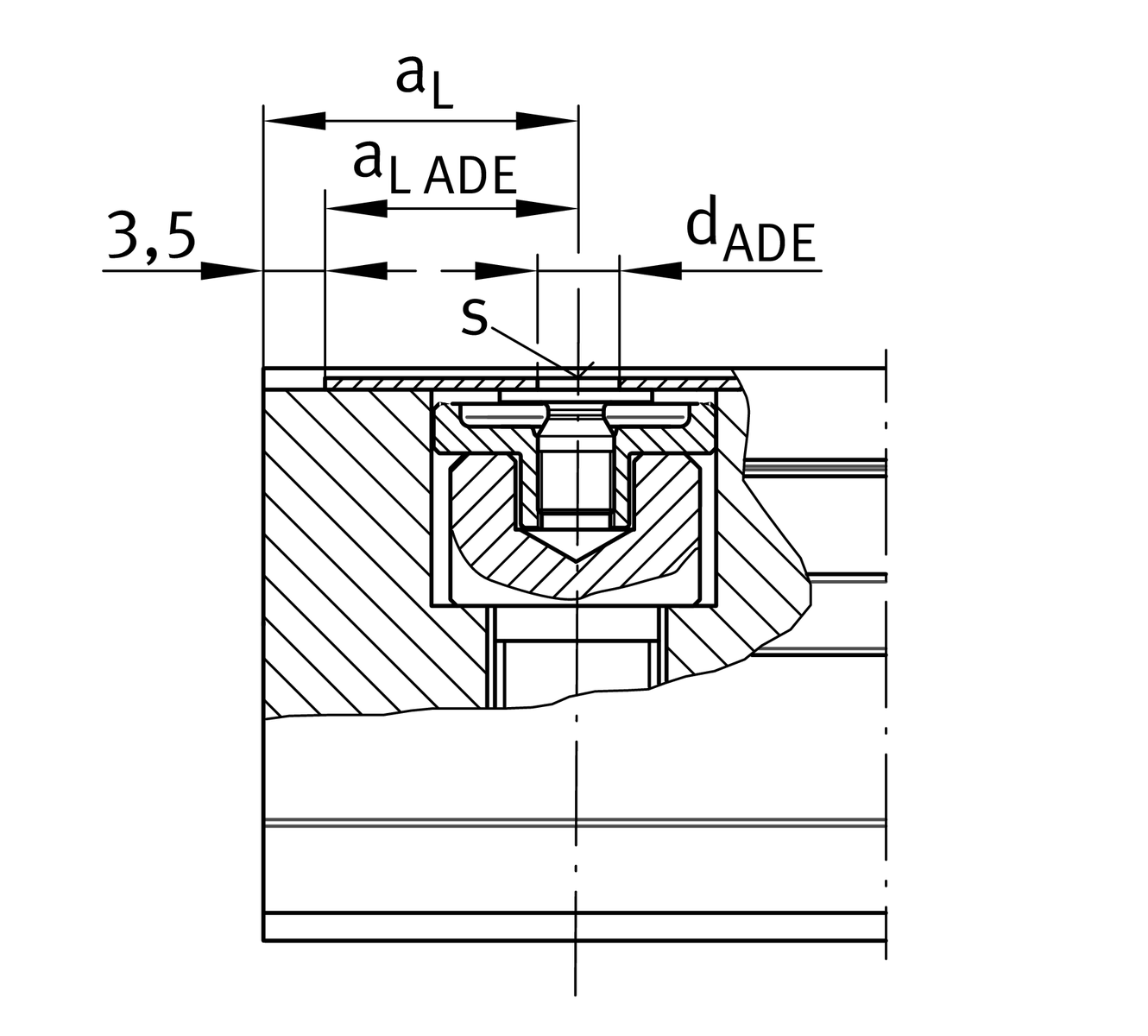

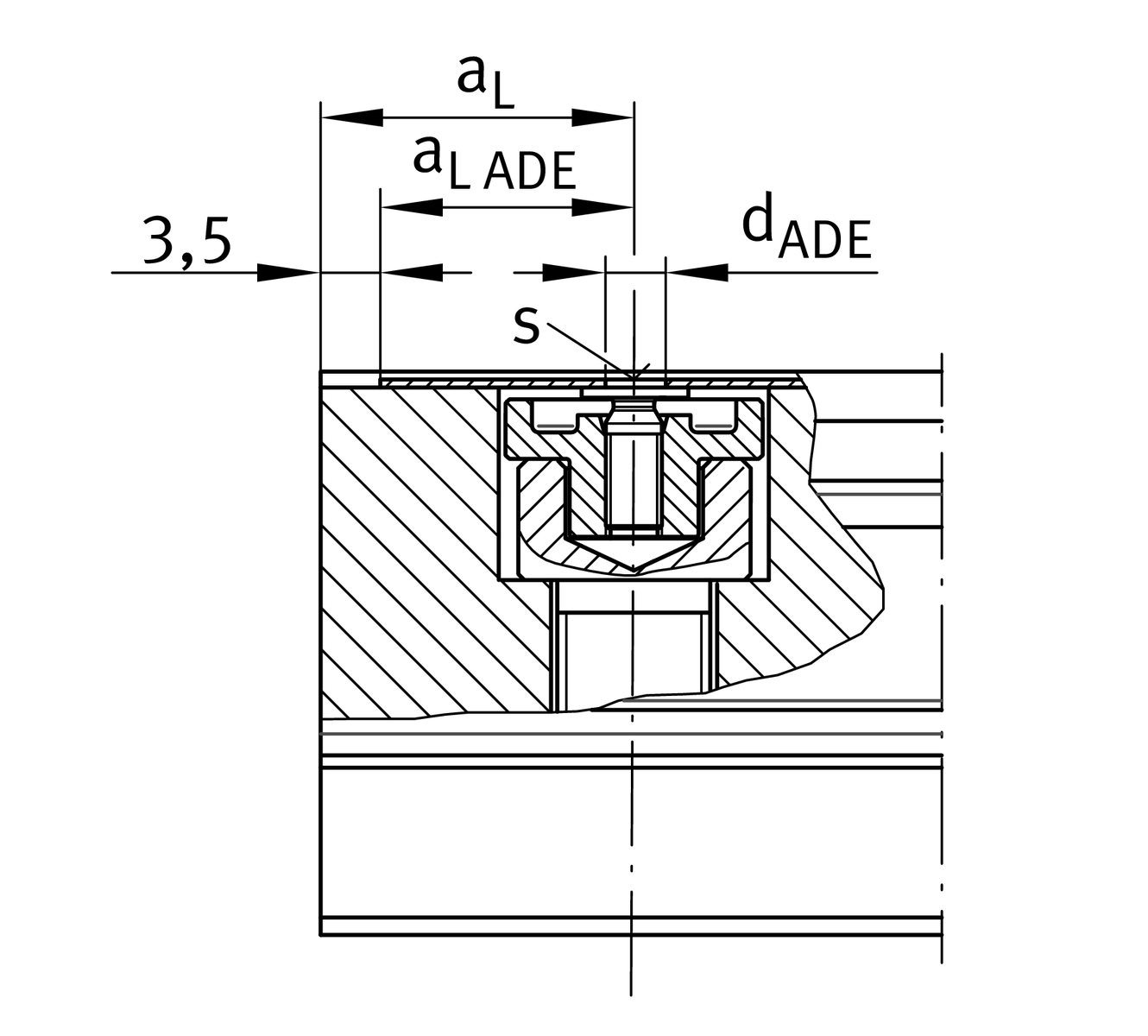

Main dimensions
| dADE | 3.9 mm | |
| S | 0.6 mm | |
| b1 | 22 mm | |
| h2 | 1.1 mm | |
| lmin | 315 mm | |
| aLmin | 14.2 mm | |
| aLmax | 103.5 mm | |
附加資訊
| MSATZ.ADE22-0010 | mounting set |
| TKVD45-B-ADE | usable rails |
| TKSD45-ADE | usable rails |
| TSX45-E-ADE | usable rails |
您目前的產品型號
| Material name | ADE | |
| Size code | 22 | |
