INA
ADE17
Covering strip ADE17
加入詢價

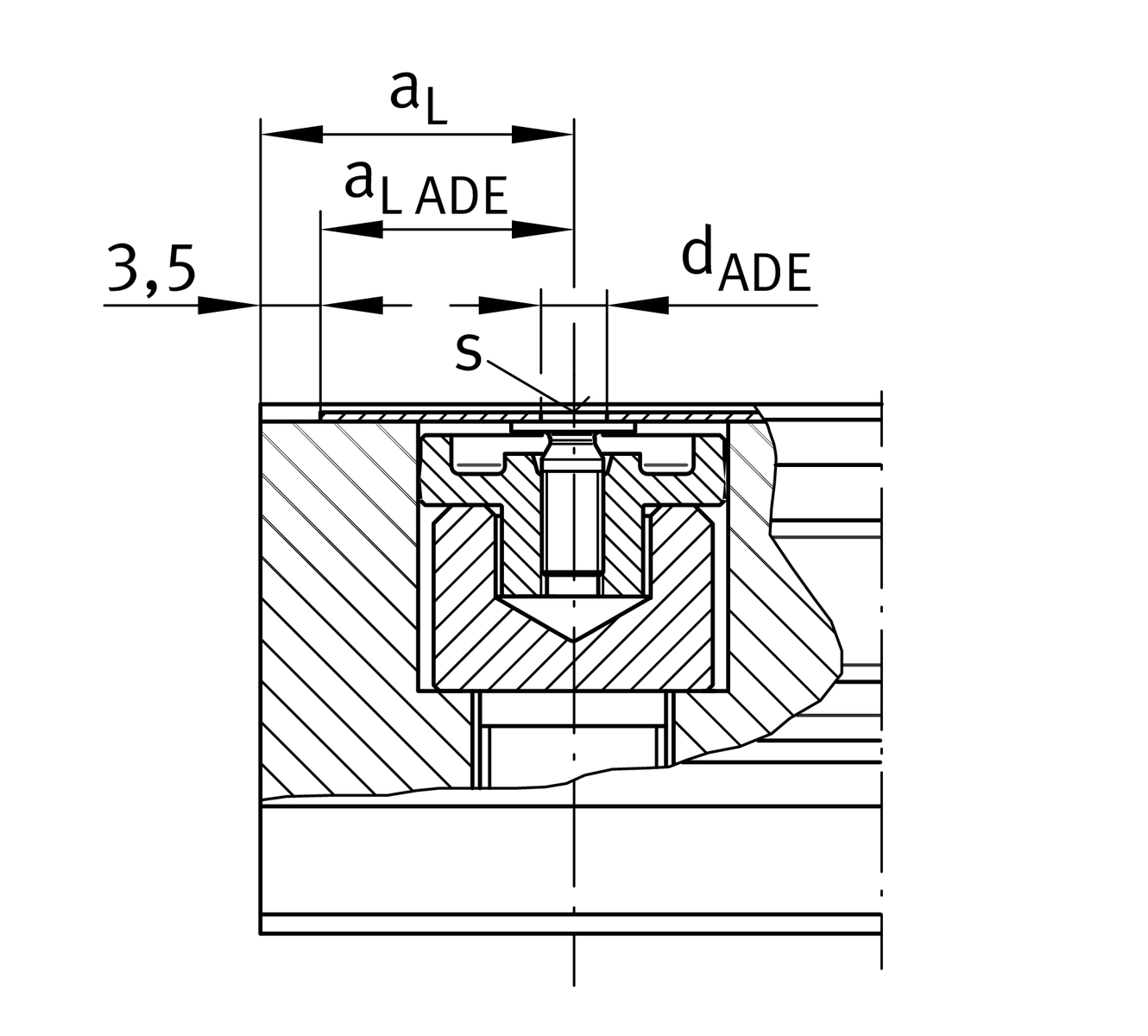

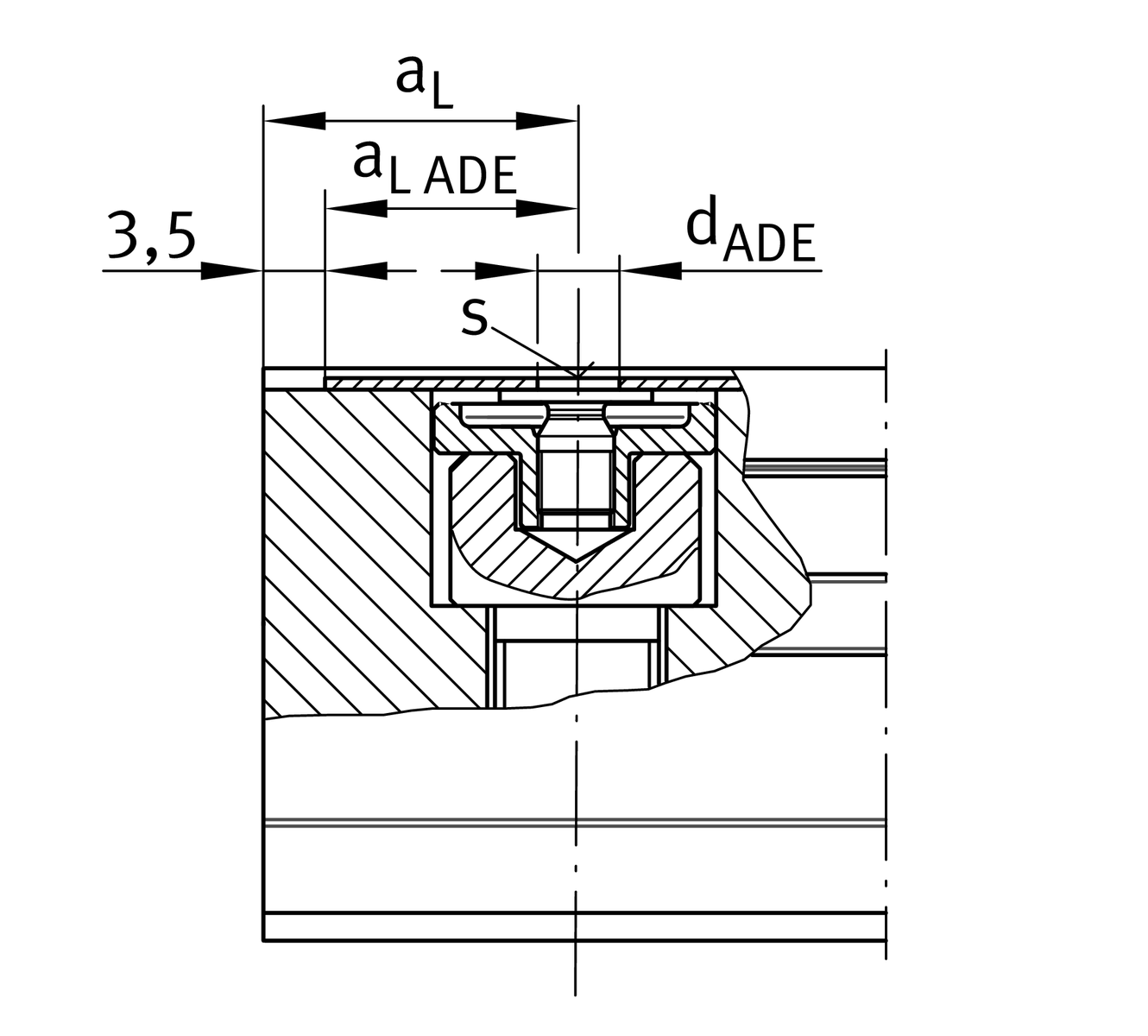

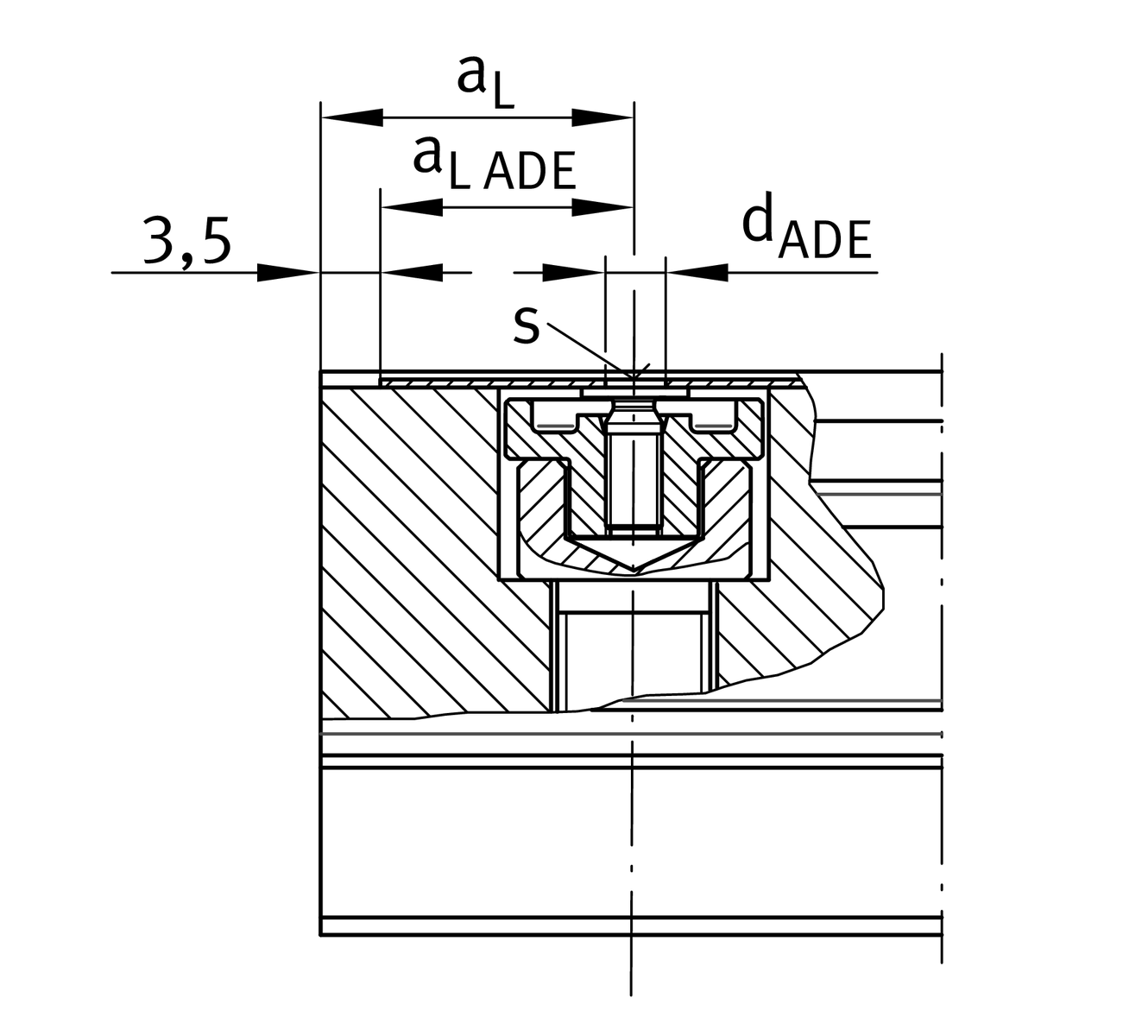

Main dimensions
| dADE | 3.9 mm | |
| S | 0.6 mm | |
| b1 | 17 mm | |
| h2 | 1.1 mm | |
| lmin | 240 mm | |
| aLmin | 13.7 mm | |
| aLmax | 80 mm | |
附加資訊
| MSATZ.ADE17-0010 | mounting set |
| TKVD30-B-ADE | usable rails |
| TKSD30-ADE | usable rails |
| TKVD35-B-ADE | usable rails |
| TKSD35-ADE | usable rails |
| TSX35-E-ADE | usable rails |
您目前的產品型號
| Material name | ADE | |
| Size code | 17 | |
