INA
ADE13
Covering strip ADE13
加入詢價

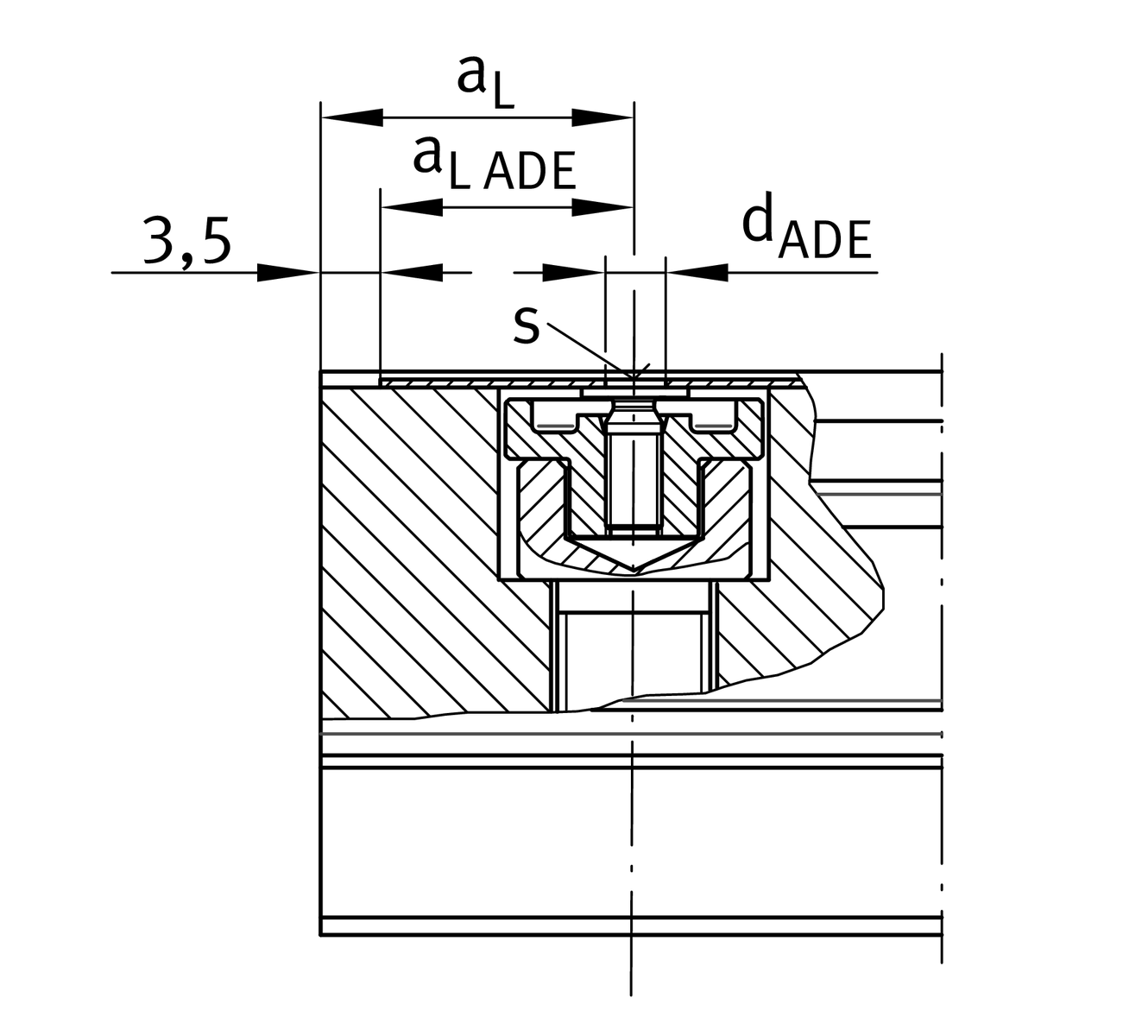

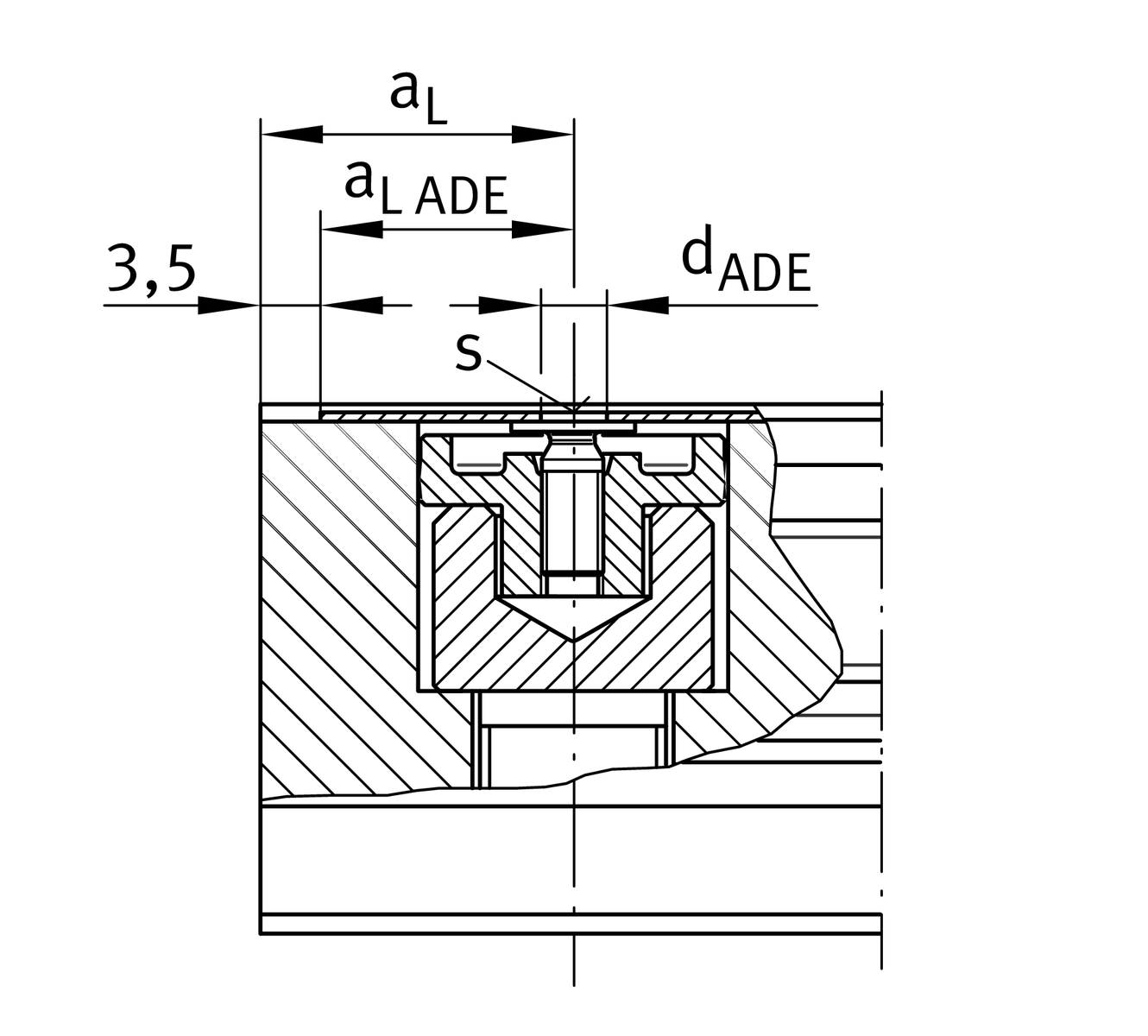

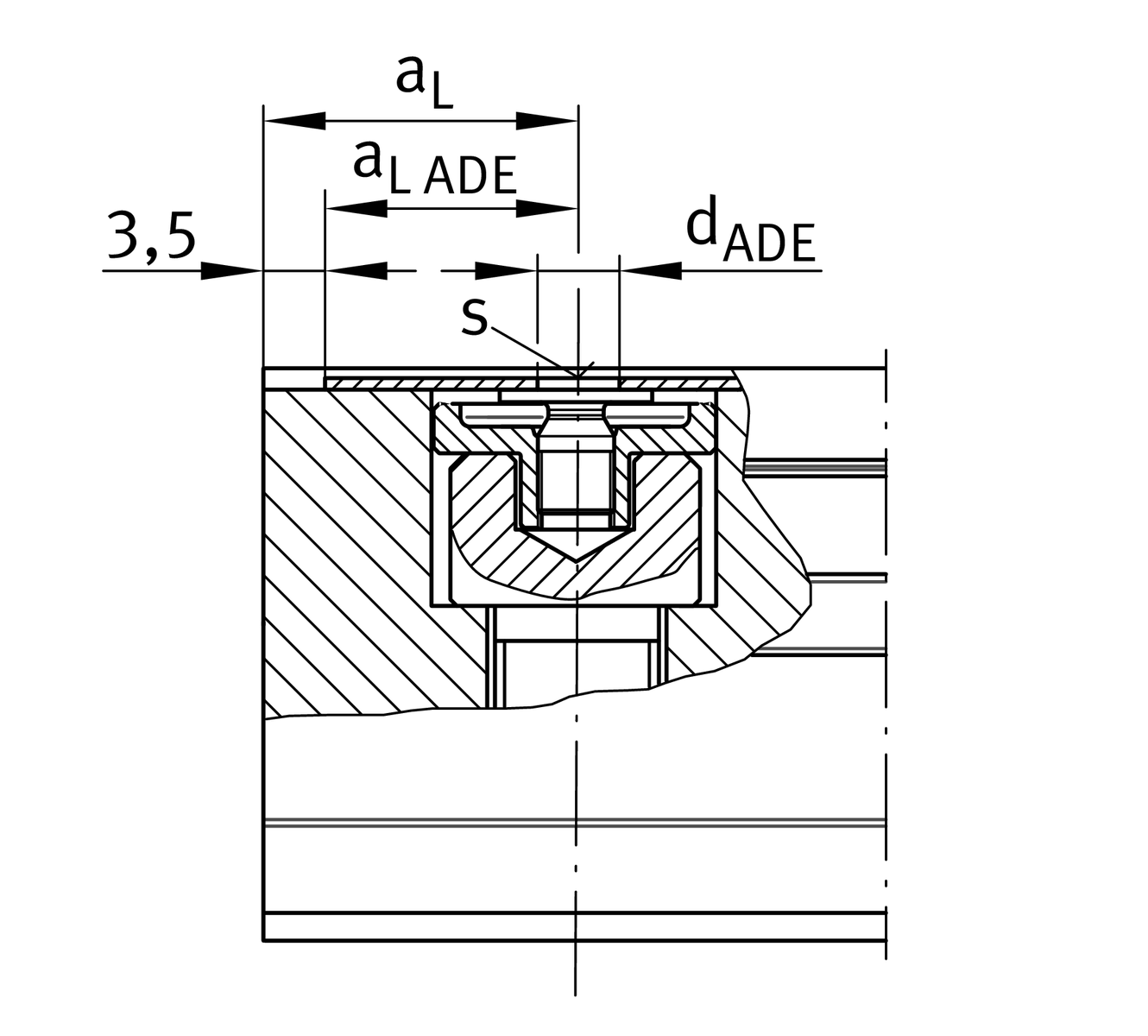

Main dimensions
| dADE | 3.9 mm | |
| S | 0.6 mm | |
| b1 | 13 mm | |
| h2 | 1.1 mm | |
| lmin | 180 mm | |
| aLmin | 13.7 mm | |
| aLmax | 60 mm | |
附加資訊
| MSATZ.ADE13-0010 | mounting set |
| TKVD20-B-ADE | usable rails |
| TKSD20-ADE | usable rails |
| TKVD25-B-ADE | usable rails |
| TKSD25-ADE | usable rails |
| TSX25-D-ADE | usable rails |
您目前的產品型號
| Material name | ADE | |
| Size code | 13 | |
