科技數據

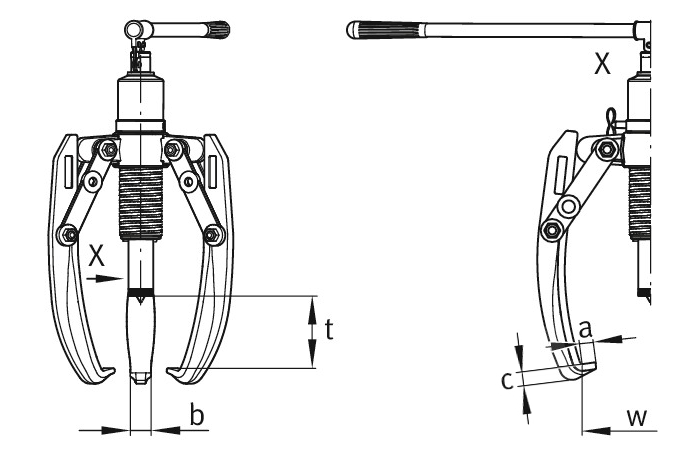

| wmin | 90 mm | 最小夾持寬度 |
| wmax | 390 mm | 最大夾持寬度 |
| tmax | 230 mm | 最大夾持深度 |
| a | 13 mm | |
| b | 22 mm | |
| c | 10 mm | |
70 mm | Stroke | |
| FP | 55 kN | Pulling force |
| ≈m | 10 kg | 重量 |
附加資訊
two- or three-arm puller (convertible) | 可用性 | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
您目前的產品型號
| Series | HSP | 2/3-Arm, self-centering with integrated hand pump |
