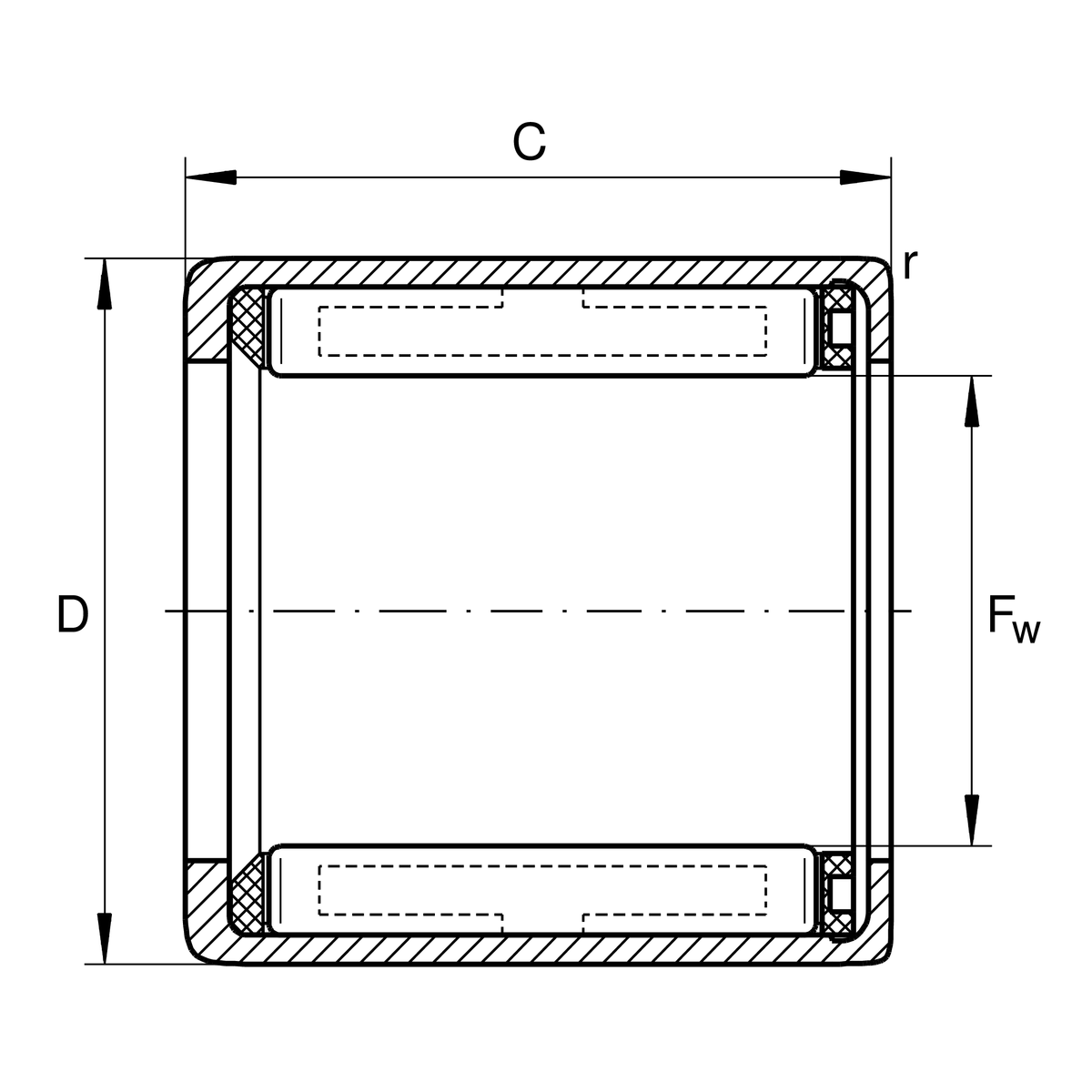

主要尺寸與性能資料
| Fw | 12 mm | 下輥直徑 |
| D | 18 mm | 外徑 |
| C | 16 mm | 外圈寬度 |
| rmin | 0.3 mm | 最小倒角尺寸 |
| Md per | 12.2 Nm | Permissible torque |
| nGW | 11,000 1/min | 極限轉速 for rotating shaft |
| nGA | 8,000 1/min | 極限轉速 for rotating outer ring |
| ≈m | 11 g | 重量 |
溫度範圍
| Tmin | -10 °C | 最低工作溫度 |
| Tmax | 70 °C | 最高操作溫度 |
附加資訊
HK1212 | Drawn cup needle roller bearings for radial bearing arrangement |
您目前的產品型號
| Lubricant | L564 | Grease (L564/standart specific - dynamic) |
| Coating | RR | Protected against corrosion by Corrotect special coating |
| Outer shape | 沒有 | Smooth outside surface |
| Spring design | Standard | Steel pressure springs |
