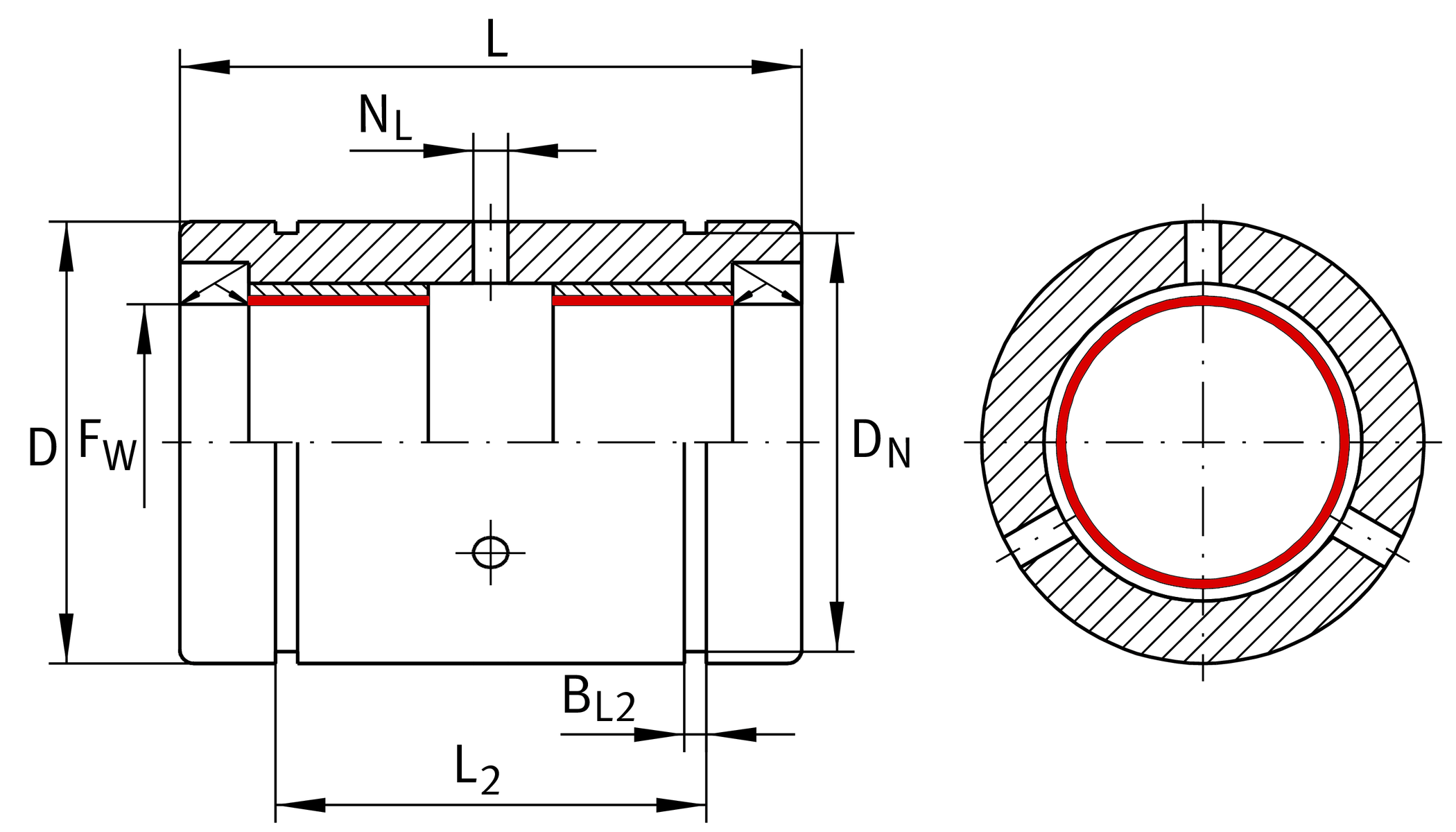

主要尺寸與性能資料
| FW | 16 mm | Diameter of ball complement |
| D | 26 mm | 外徑 |
| L | 36 mm | 長度 |
| Tol L | h12 | Tolerance |
| C0 | 96,000 N | load capacity stat. C0 1 |
| ≈m | 28 g | 重量 |

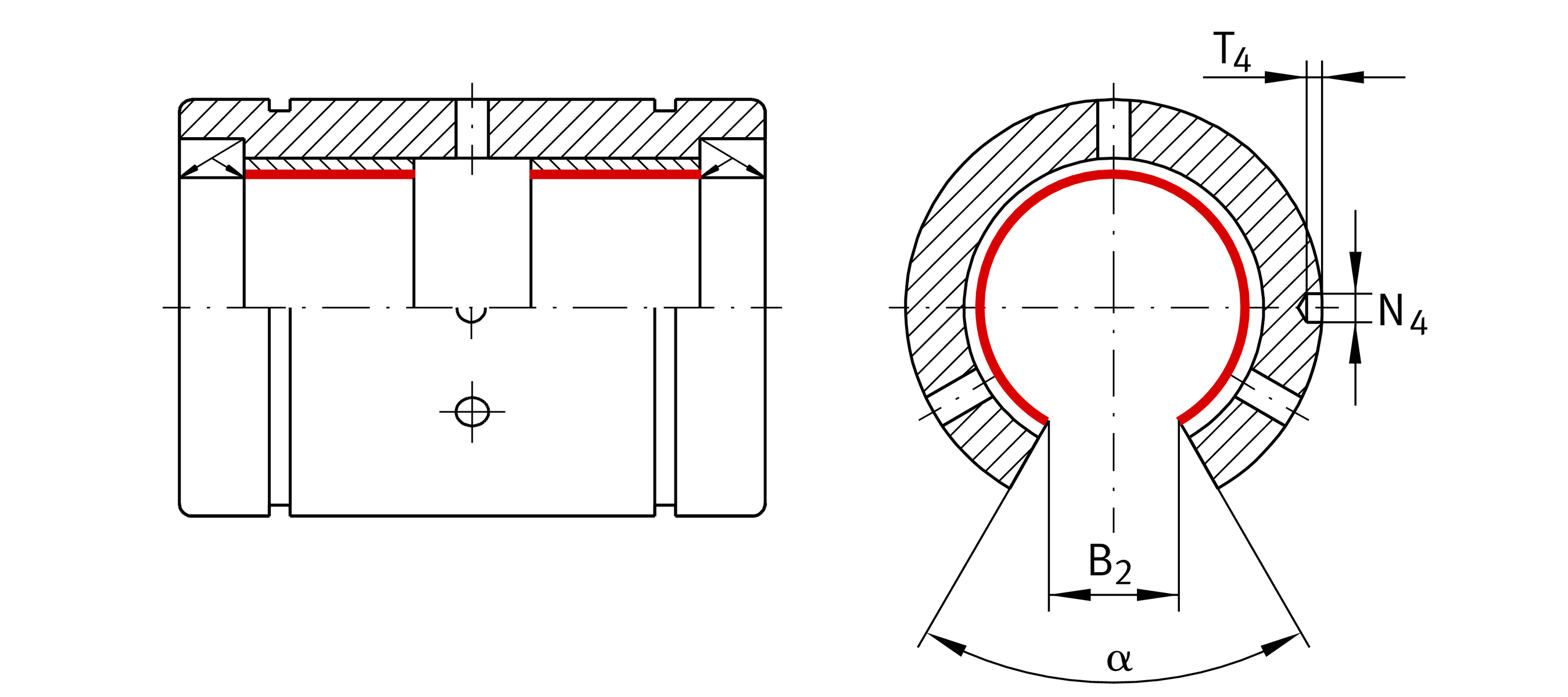

安裝尺寸
| L2 | 24.6 mm | Mounting Dimension 2 |
| Tol L2 | H13 | Tolerance |
| BL2 | 1.3 mm | 3 |
| Tol BL2 | H13 | Tolerance |
| DN | 24.9 mm | |
| B2 | 10.1 mm | 4 |
| T4 | 1.2 mm | |
| N4 | 2.2 mm | |
| NL | 2.5 mm | |
| Tol NL | H13 | Tolerance |
| a | 78 ° | Angle |
您目前的產品型號
| Size code | 16 | |
| Seal | PP | |
| Relubrication feature | AS |
