FAG
H3960-HG
Adapter sleeve H3960-HG
加入詢價

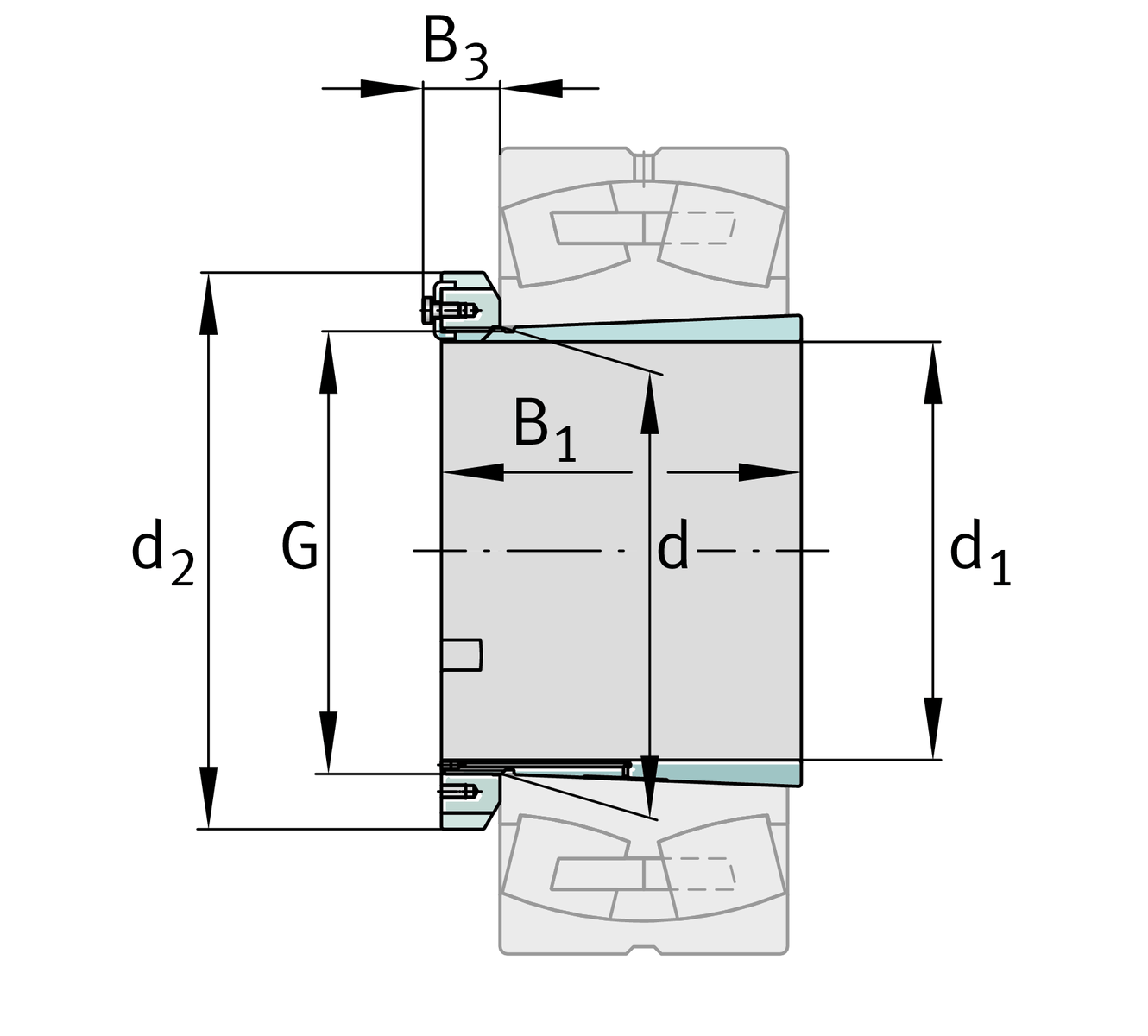

主要尺寸與性能資料
| d1 | 280 mm | 內徑 |
| G | Tr300X4 | 線 |
| B1 | 140 mm | sleeve length |
| ≈m | 20.8 kg | 重量 |

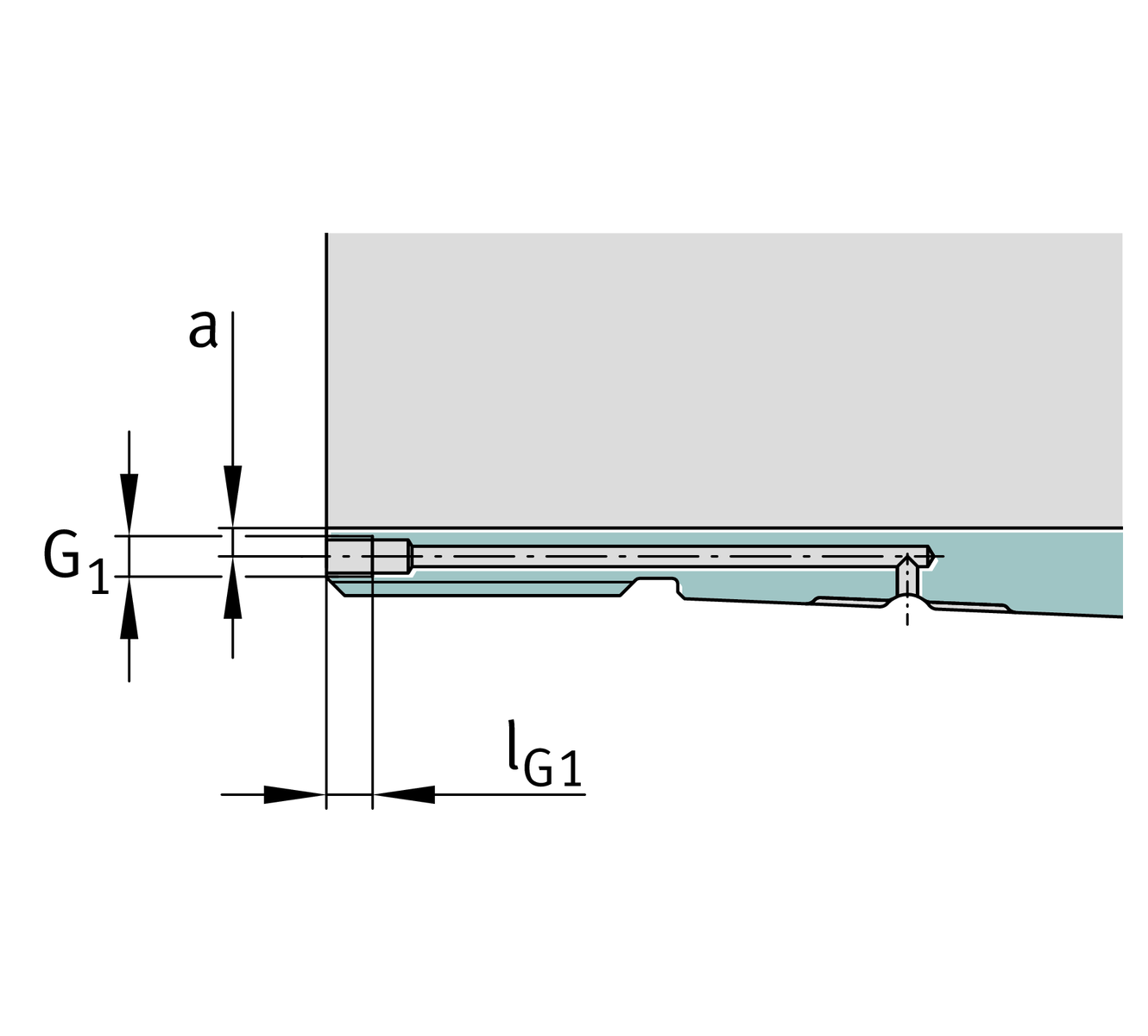

安裝尺寸
| G1 | M6 | Thread oil connector |
| a | 4.2 mm | Distance oil connector |
| IG1 | 7 mm | Thread depth oil connector |
尺寸
| d | 300 mm | 內徑 |
| d2 | 360 mm | 外徑 |
| B3 | 53 mm | Width nut and lock |
附加資訊
| HM3060 | Locknut |
| MS3060 | Fuse |
| 1:12 | Taper |
