主要尺寸與性能資料
| dLW | 15.875 mm | Diameter Shaft |
| dLWTol | N | Diameter tolerance shaft |
| NTol | 0 µm | Diameter tolerance high |
| NTol | -5 µm | Diameter tolerance low |
| ≈m | 1.55 kg/m | 重量 |

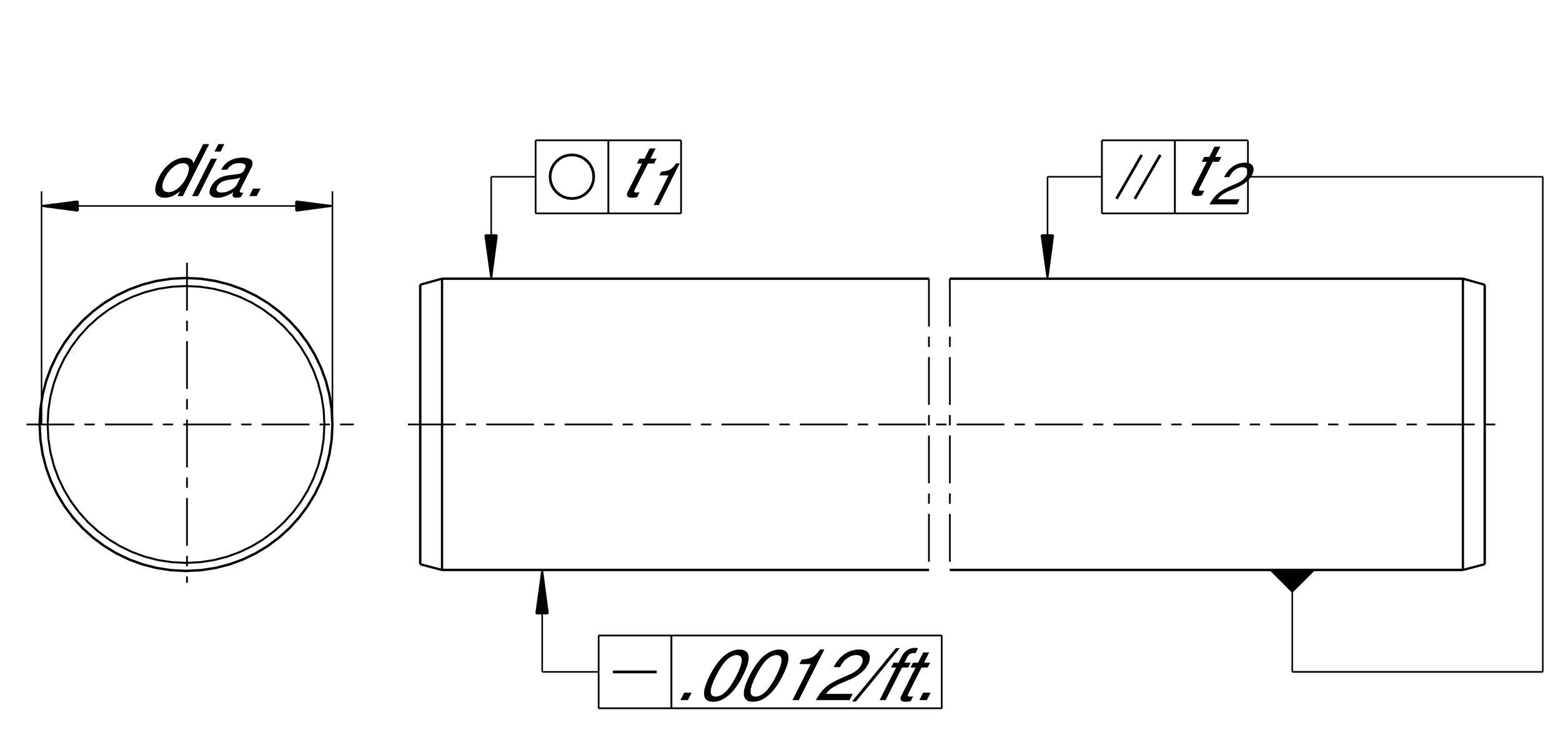

安裝尺寸
| t1 | 5 µm | Roundness |
| t2 | 8 mm | Parallelism 1 |
| SHDmin | 0.6 mm | Surface Hardness Depth 2 |
您目前的產品型號
| Size code | 5/8" | |
| Tolerance diameter | N | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Coating | / | 沒有 |
| Length | 4572 mm | EWL max. |
