主要尺寸與性能資料
| dLW | 76.2 mm | Diameter Shaft |
| dLWTol | S | Diameter tolerance shaft |
| STol | -43 µm | Diameter tolerance high |
| STol | -66 µm | Diameter tolerance low |
| ≈m | 35.799 kg/m | 重量 |

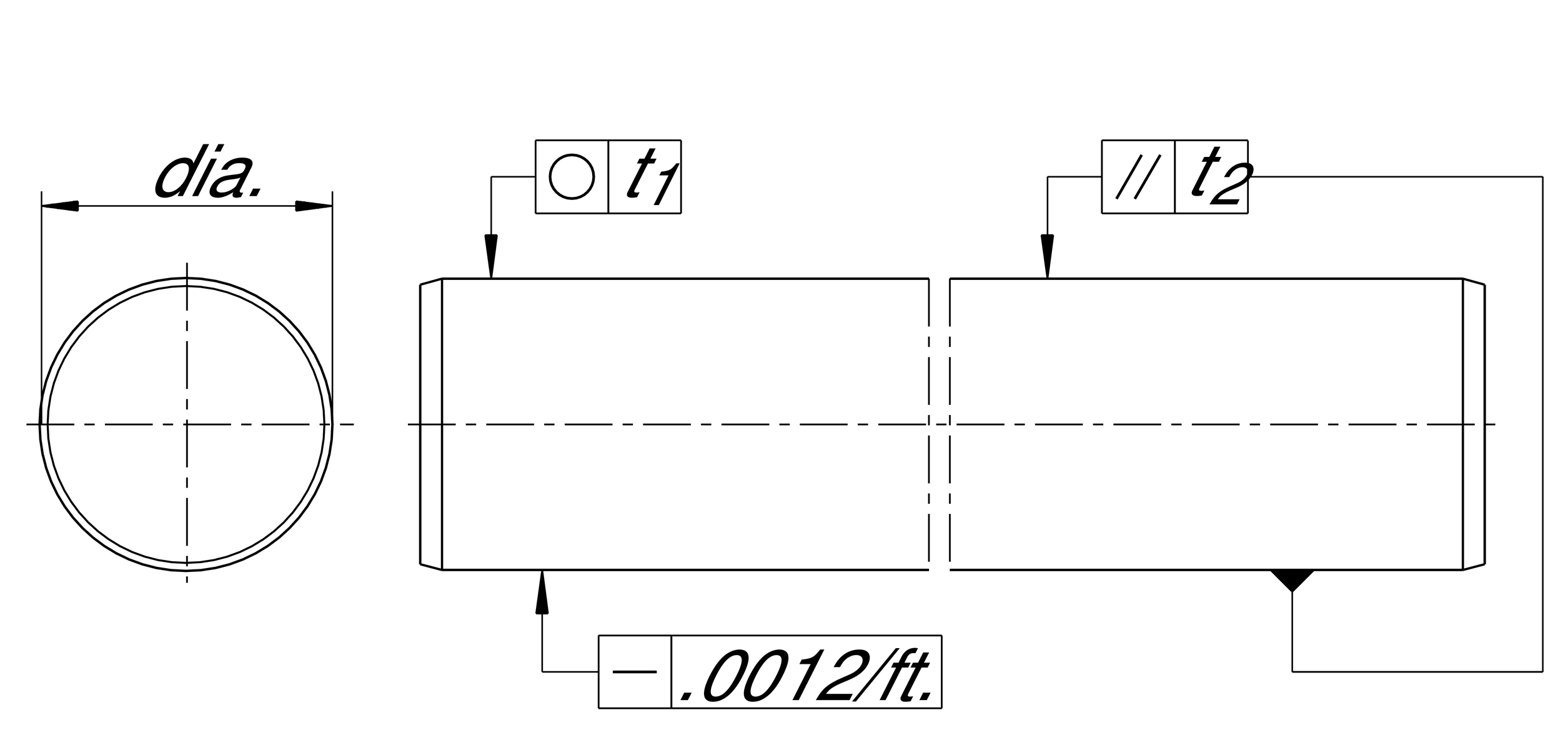

安裝尺寸
| t1 | 8 µm | Roundness |
| t2 | 13 mm | Parallelism 1 |
| SHDmin | 2.2 mm | Surface Hardness Depth 2 |
您目前的產品型號
| Size code | 3" | |
| Tolerance diameter | S | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Length | 4000 mm | EWL max. |
