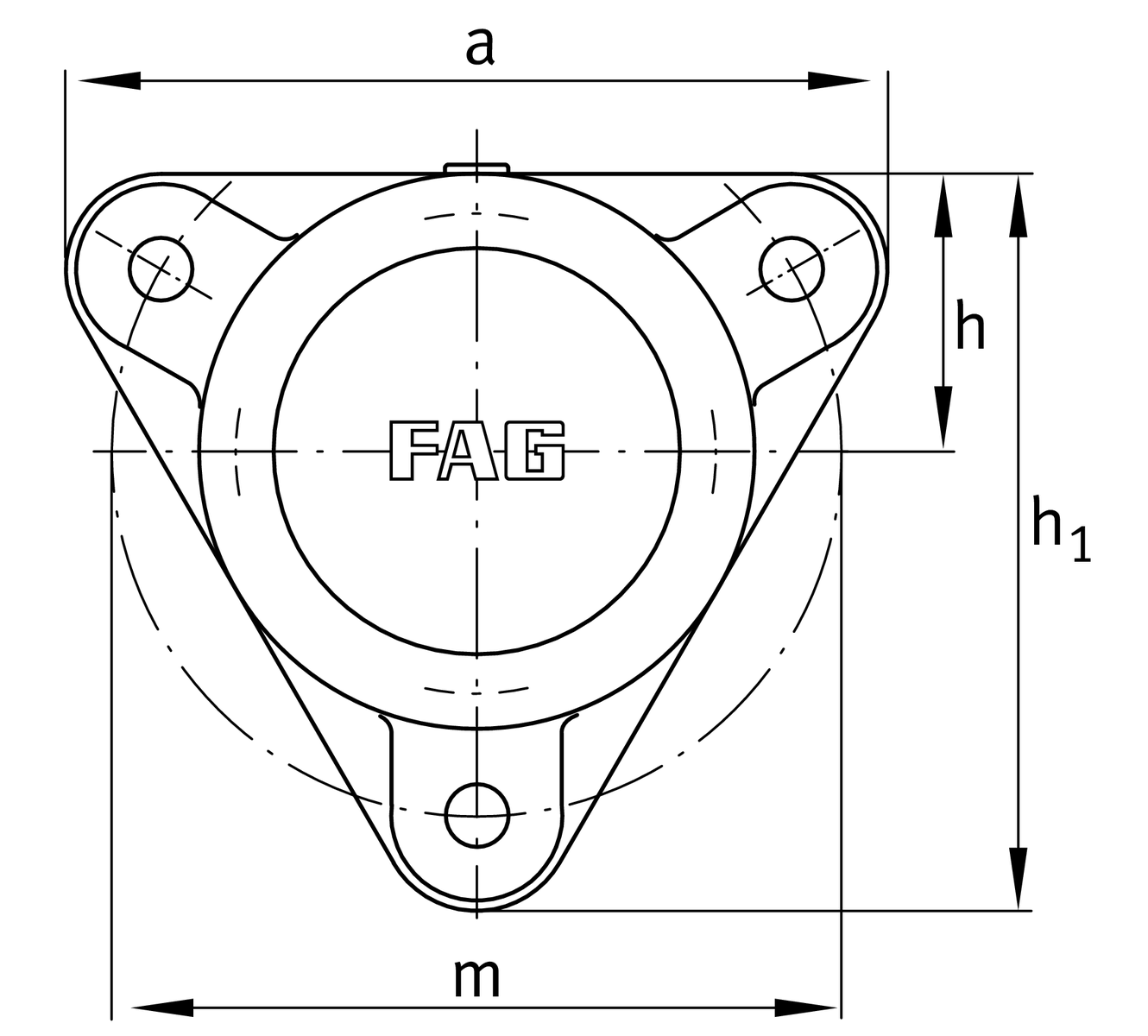

主要尺寸與性能資料
| d1 | 60 mm | Shaft diameter |
| a | 219 mm | 法蘭寬度 |
| h1 | 198 mm | height flange |
| g2 | 79 mm | Total width with lid g2 |
3 | number of fastening holes | |
| ≈m | 5.311 kg | 重量 |
尺寸
M10x1 | 用於潤滑的連接螺紋 | |
| c | 16 mm | 法蘭厚度 |
| D | 120 mm | 外徑 bearing |
| g4 | 24 mm | distance flange to bearing seat |
| h | 75 mm | distance shaft axis |
| m | 190 mm | pich circle diameter fixing holes |
| s | M12 | size of fixing screws |
