FAG INA Schaeffler
FAG
SNW15X0207
Adapter sleeve SNW15X0207
加入詢價

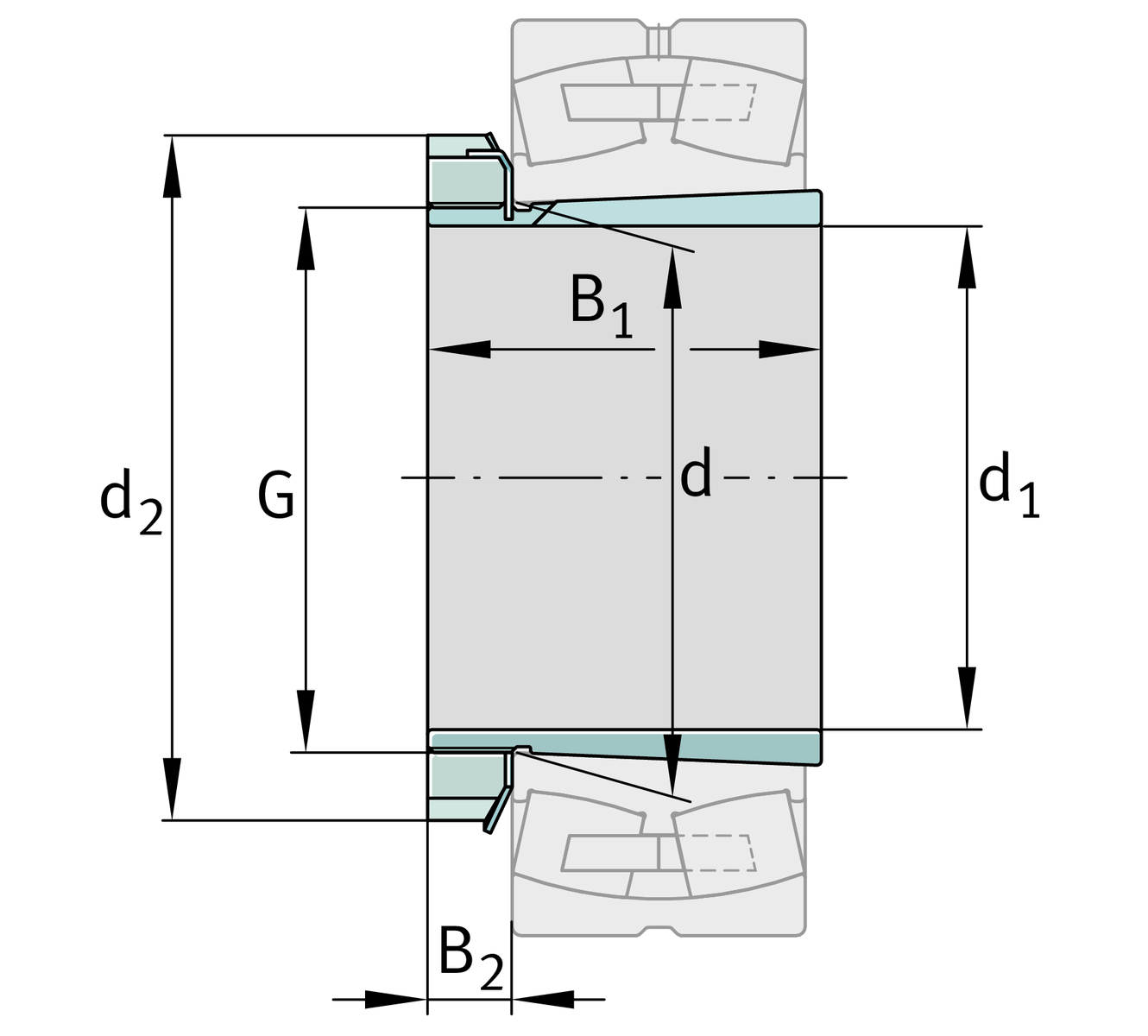

主要尺寸與性能資料
d1
2.4375 in
內徑 (Inch)
G
2,933
線
12
Threads per inch
B1
2.286 in
sleeve length (Inch)
d2
3.88 in
外徑 nut (Inch)
≈m
1.832 lbs
重量

尺寸
d
2.9528 in
內徑 bearing (Inch)
B2
2.174 in
Width nut and lock (Inch)

附加資訊
AN-15
Locknut
W-15
Fuse
1:12
Taper
