主要尺寸與性能資料
| dLW | 31.75 mm | Diameter Shaft |
| dLWTol | S | Diameter tolerance shaft |
| STol | -25 µm | Diameter tolerance high |
| STol | -38 µm | Diameter tolerance low |
| ≈m | 6.125 kg/m | 重量 |

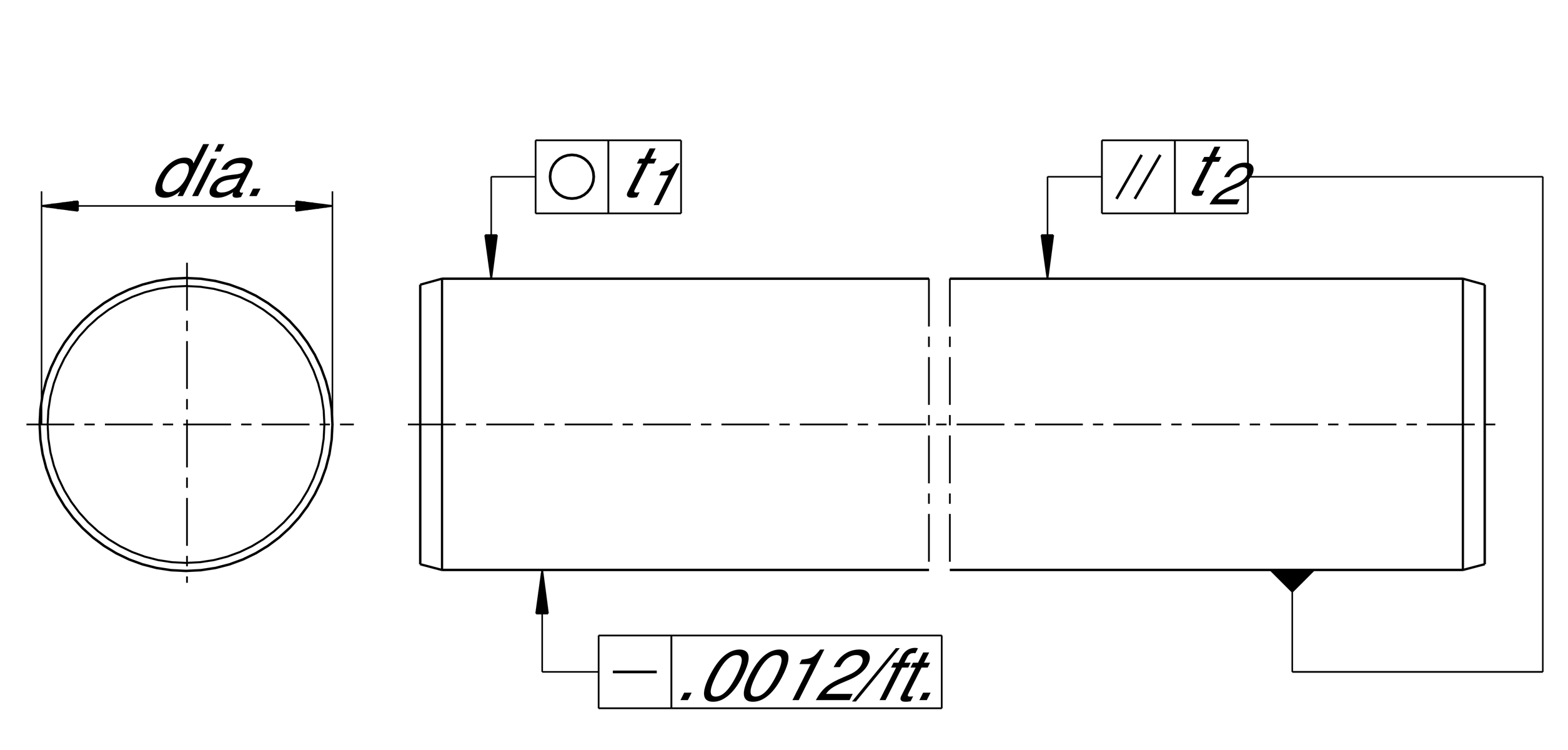

安裝尺寸
| t1 | 7 µm | Roundness |
| t2 | 11 mm | Parallelism 1 |
| SHDmin | 1.5 mm | Surface Hardness Depth 2 |
您目前的產品型號
| Size code | 1-1/4" | |
| Tolerance diameter | S | dLW Tol |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Length | 5182 mm | EWL max. |
