主要尺寸與性能資料
| d1 | 40 mm | Shaft diameter |
| a | 180 mm | 法蘭寬度 |
| h1 | 160 mm | height flange |
| g2 | 70 mm | Total width with lid g2 |
3 | number of fastening holes | |
| ≈m | 3.479 kg | 重量 |

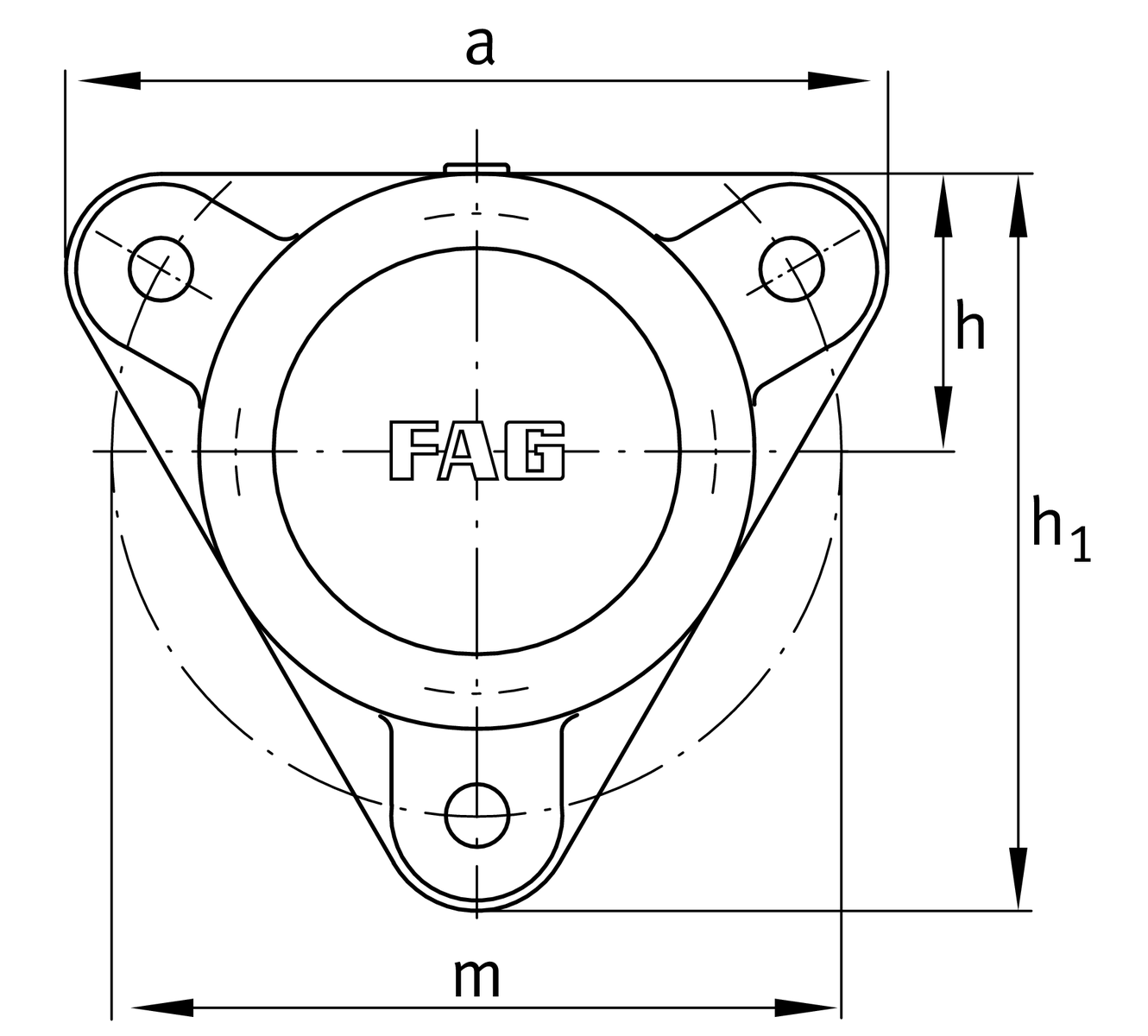

尺寸
M10x1 | 用於潤滑的連接螺紋 | |
| c | 15 mm | 法蘭厚度 |
| D | 85 mm | 外徑 bearing |
| g4 | 22 mm | distance flange to bearing seat |
| h | 60 mm | distance shaft axis |
| m | 160 mm | pich circle diameter fixing holes |
| s | M12 | size of fixing screws |
