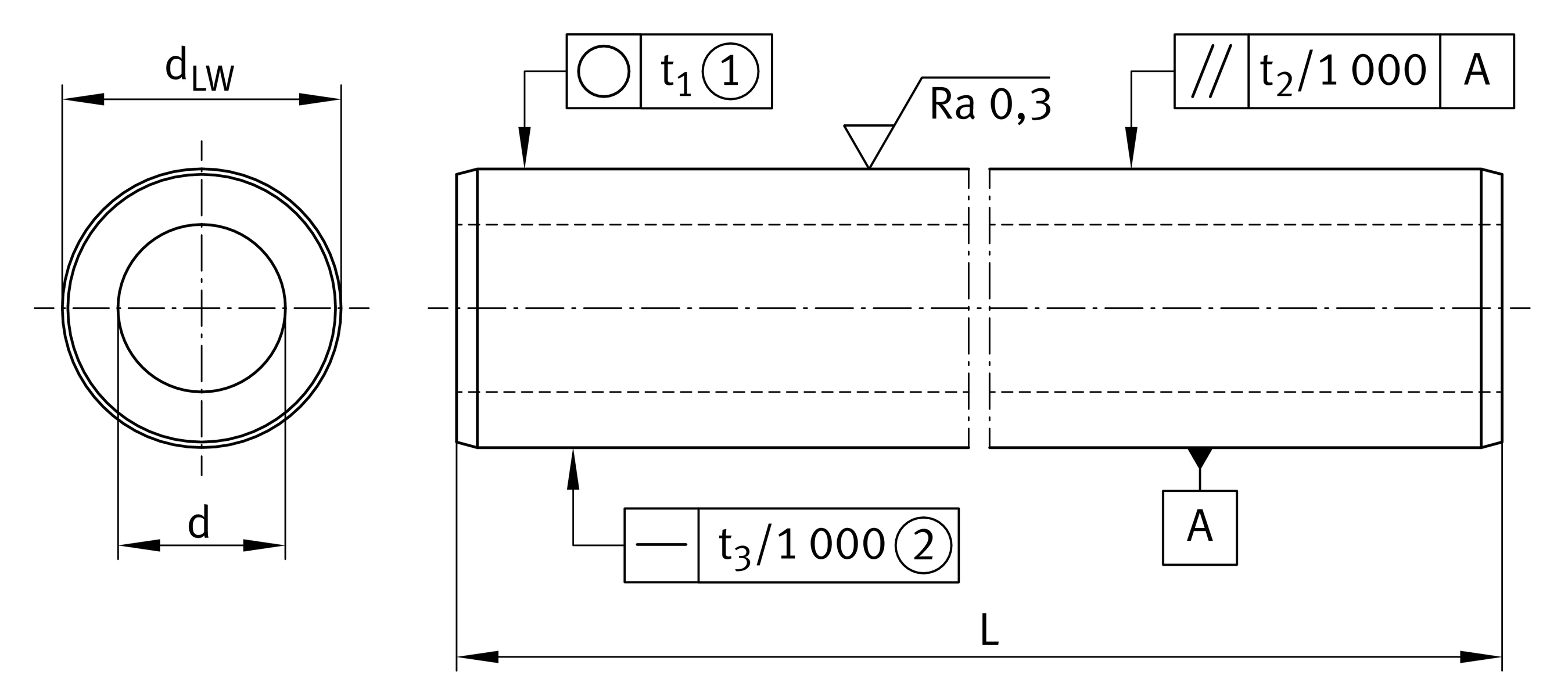

主要尺寸與性能資料
| dLW | 16 mm | Diameter Shaft |
| dLWTol | h7 | Diameter tolerance shaft |
| h7Tol | 0 µm | Diameter Shaft high |
| h7Tol | -18 µm | Diameter Shaft low |
| d | 7 mm | 內徑 |
| dTol | 0.15 mm | 內徑 tolerance high |
| dTol | -0.15 mm | 內徑 tolerance low |
| Lmax | 5,700 mm | Length total maximum |
| ≈m | 1.26 kg/m | 重量 |
安裝尺寸
| SHDmin | 0.8 mm | Surface Hardness Depth 1 |
| t2 | 7 µm | Parallelism |
| t3 | 0.3 µm | Straightness |
您目前的產品型號
| Size code | 16 | |
| Tolerance diameter | h7 | |
| Material | C60 | Heat treatable steel (material no.:1.0601) |
