主要尺寸與性能資料
| dLW | 80 mm | Diameter Shaft |
| Lmax | 5,900 mm | Length total maximum |
| ≈m | 39.45 kg/m | 重量 |
安裝尺寸

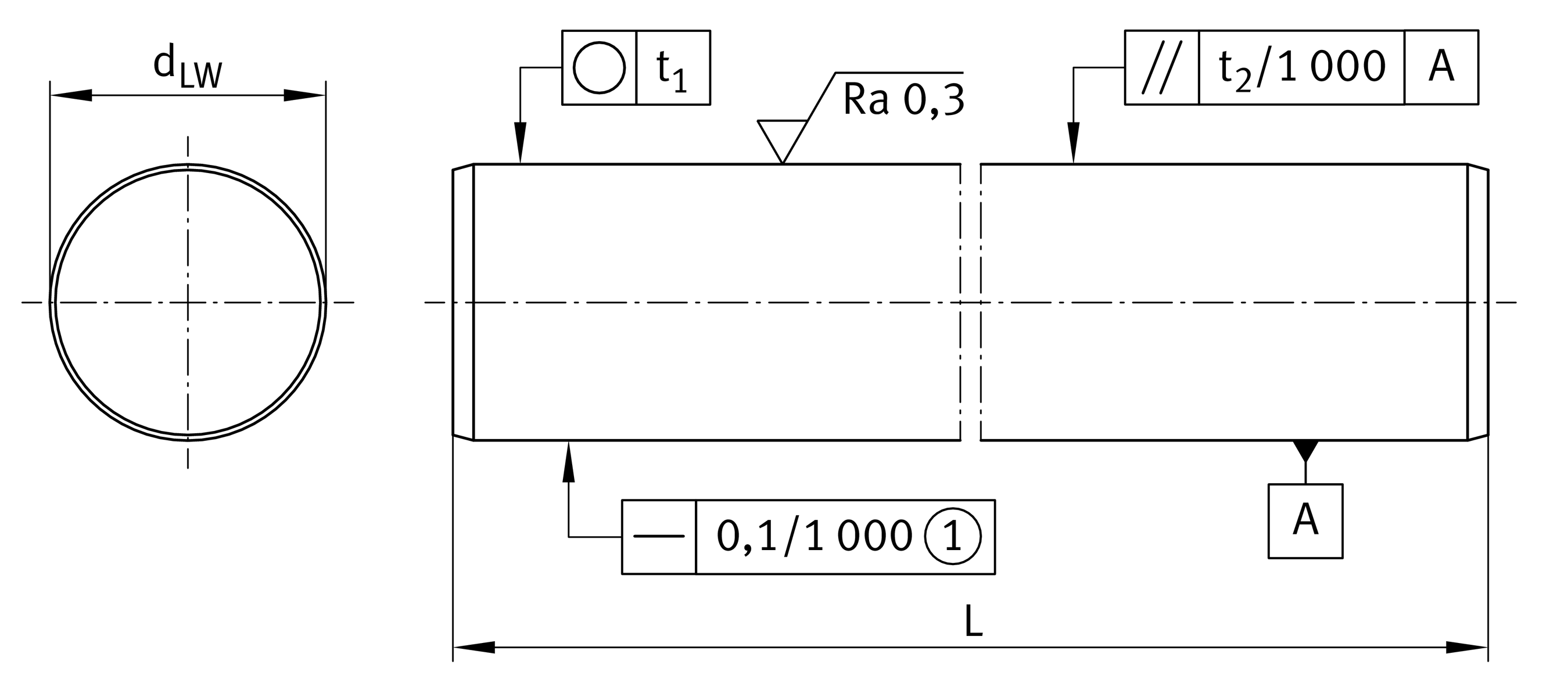

| dLWTol | h7 | Diameter Shaft |
| h7Tol | 0 µm | Diameter Shaft high |
| h7Tol | -30 µm | Diameter Shaft low |
| SHDmin | 2.2 mm | Surface Hardness Depth 1 |
| t1 | 8 µm | Roundness |
| t2 | 13 µm | Parallelism 2 |

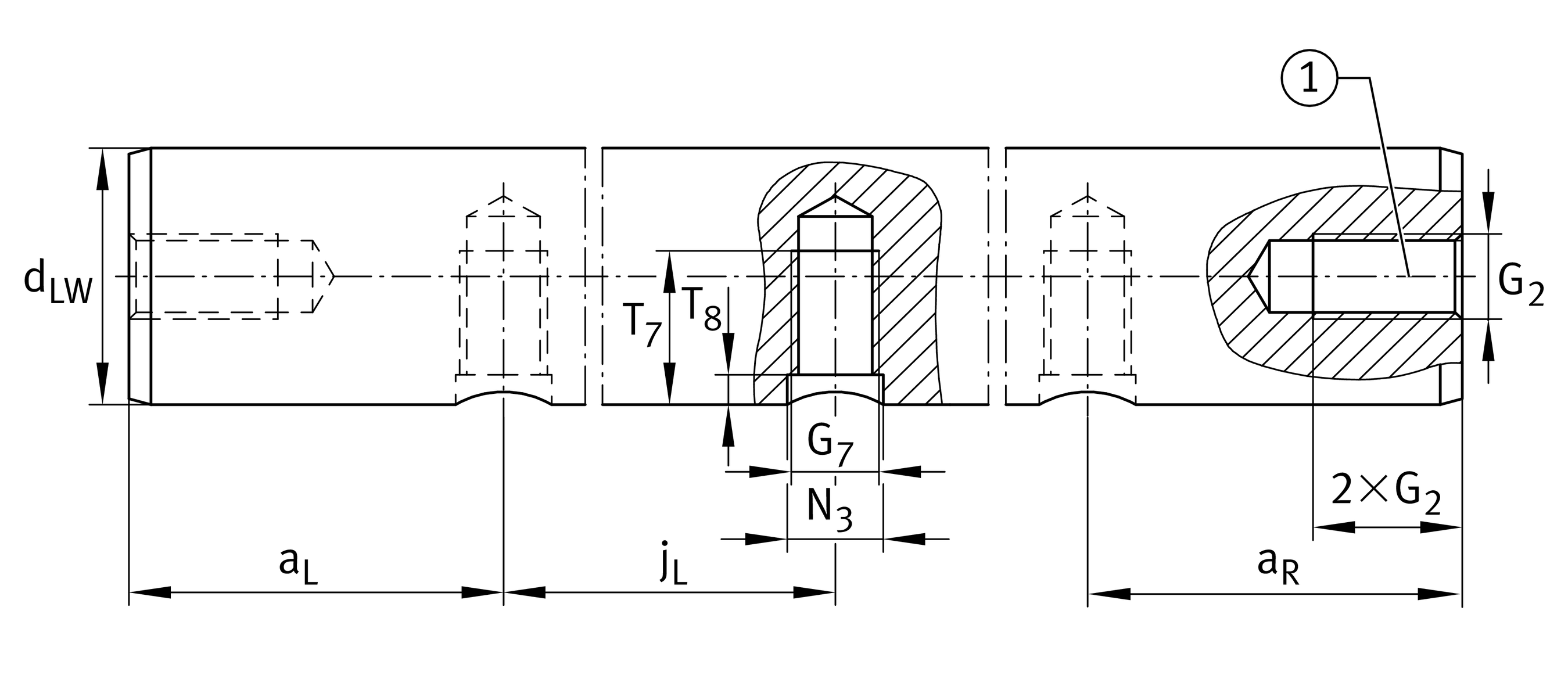

Main dimensions
| G2 | M16-M20-M24 | Axial thread (size) |

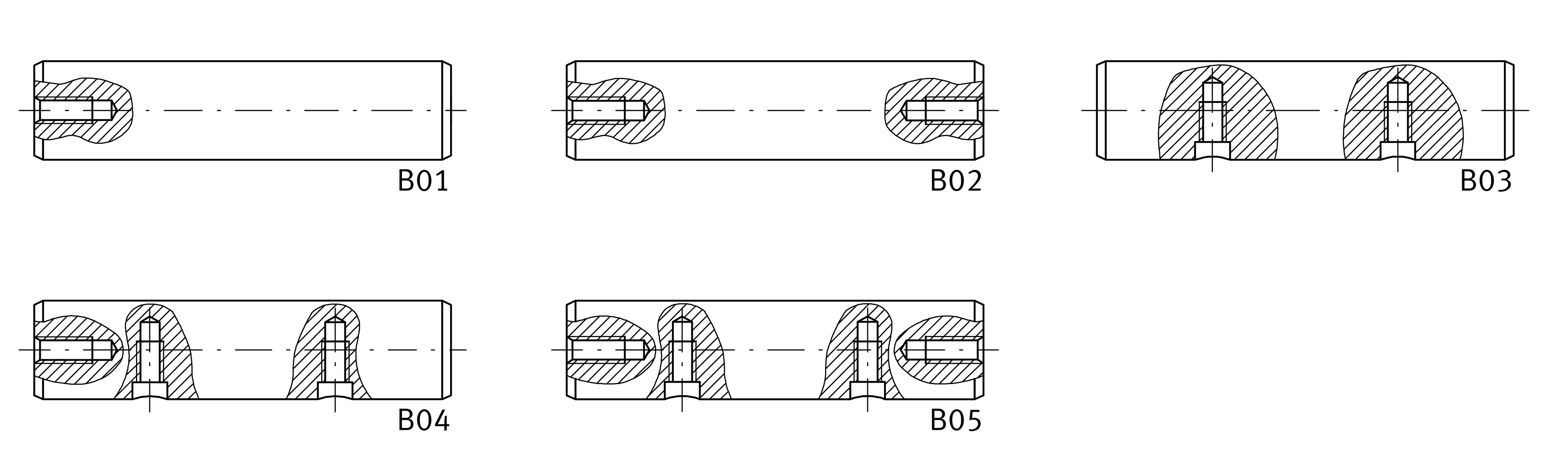

| B01 | M16-M20-M24 | Drilling pattern axial thread one side |
| B02 | M16-M20-M24 | Drilling pattern axial thread both side |
您目前的產品型號
| Size code | 80 | |
| Tolerance diameter | h7 | |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Coating | CR | Chrom |
