主要尺寸與性能資料
| dLW | 40 mm | Diameter Shaft |
| Lmax | 6,000 mm | Length total maximum |
| ≈m | 9.87 kg/m | 重量 |

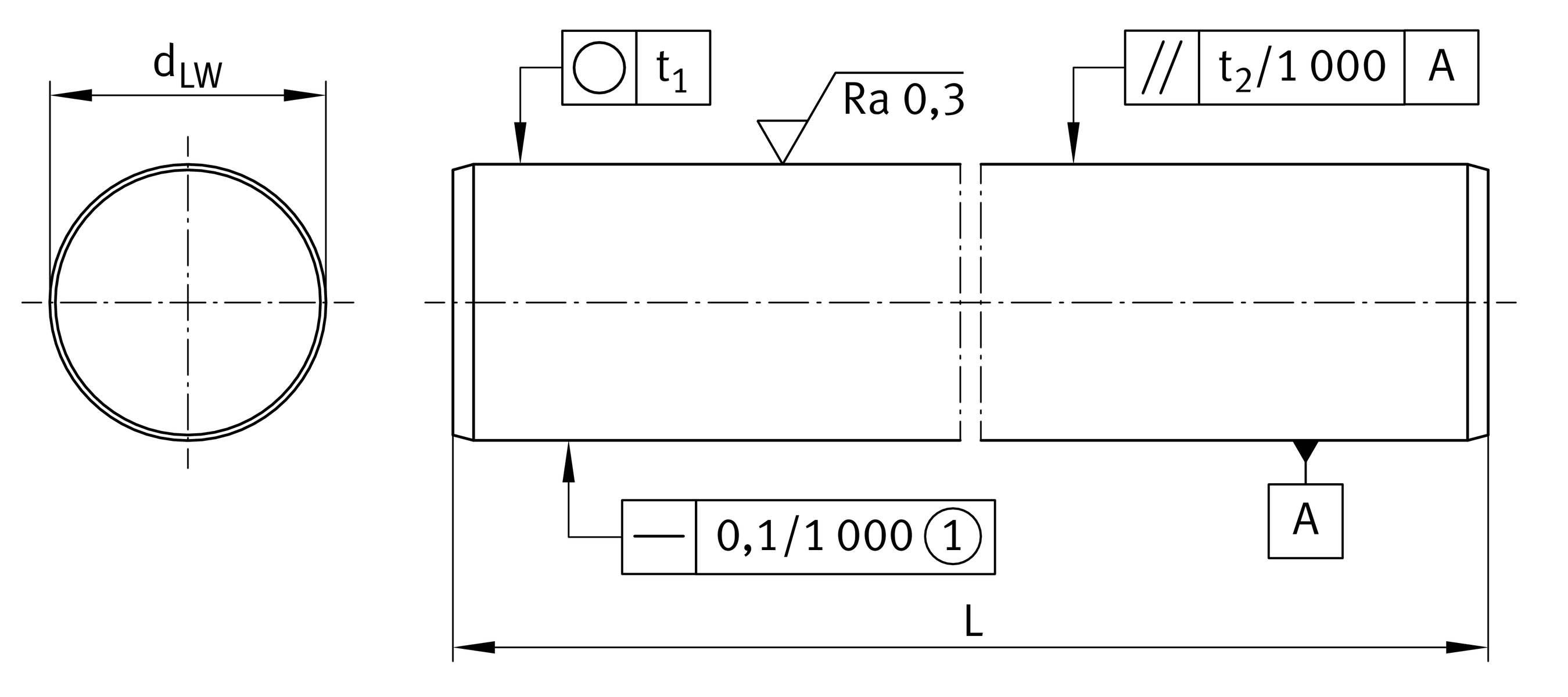

安裝尺寸
| dLWTol | h6 | Diameter Shaft |
| h6Tol | 0 µm | Diameter Shaft high |
| h6Tol | -16 µm | Diameter Shaft low |
| SHDmin | 1.5 mm | Surface Hardness Depth 1 |
| t1 | 7 µm | Roundness |
| t2 | 11 µm | Parallelism 2 |

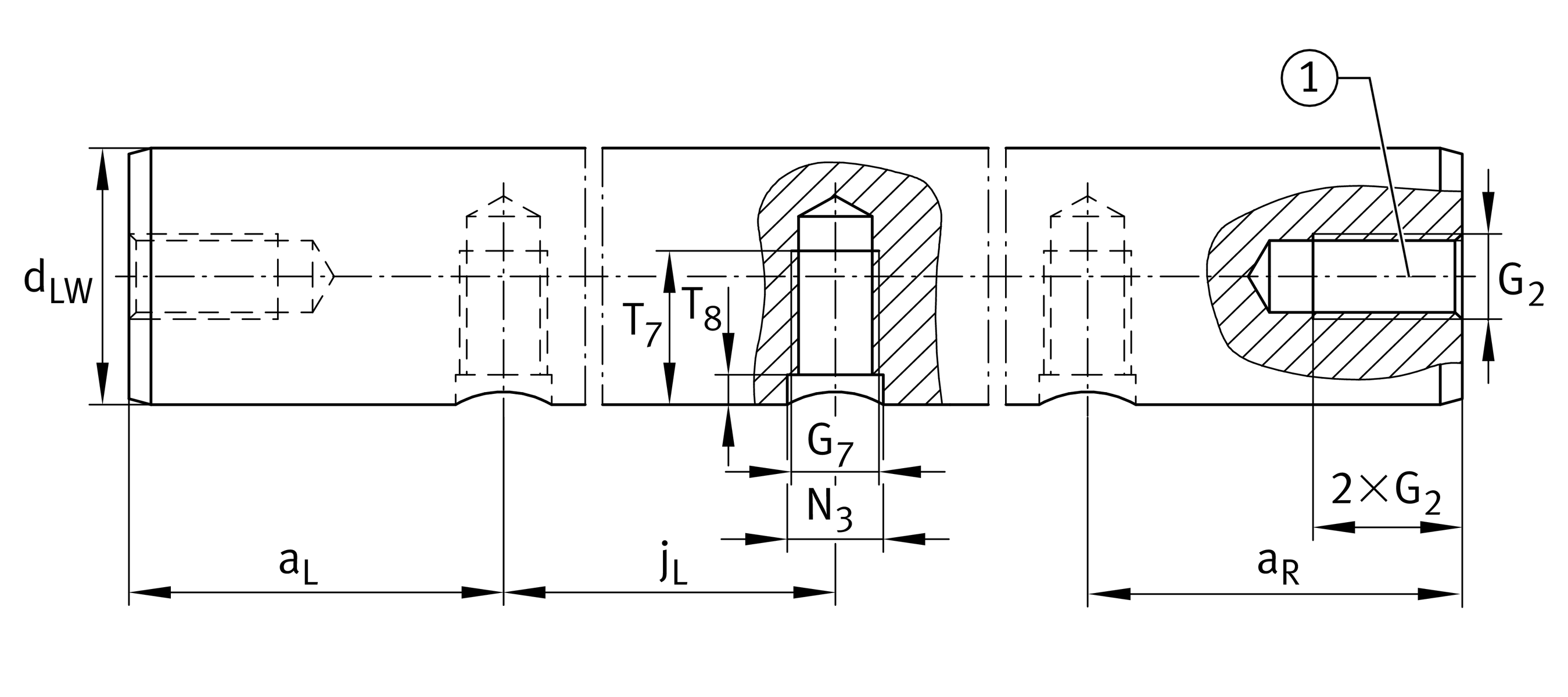

Main dimensions
| G2 | M10-M12-M16 | Axial thread (size) |
| G7 | M10-M12 | Radial thread (size) |

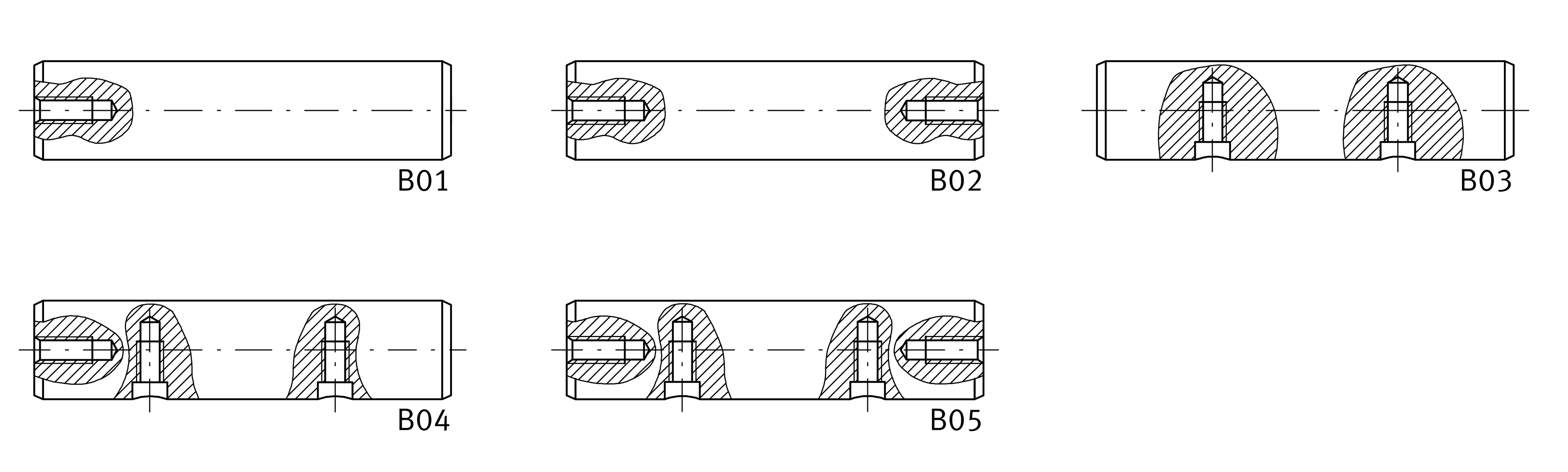

| B01 | M10-M12-M16 | Drilling pattern axial thread one side |
| B02 | M10-M12-M16 | Drilling pattern axial thread both side |
| B03 | M10-M12 | Drilling pattern radial thread |
| B04 | M10-M12 + M10-M12-M16 | Drilling pattern radial thread+axial thread one side |
| B05 | M10-M12 + M10-M12-M16 | Drilling pattern radial thread+axial thread both side |
您目前的產品型號
| Size code | 40 | |
| Tolerance diameter | h6 | |
| Material | X90 | corrosion-resistant steel (material no.:1.4112) |
