主要尺寸與性能資料
| dLW | 14 mm | Diameter Shaft |
| Lmax | 6,000 mm | Length total maximum |
| ≈m | 1.21 kg/m | 重量 |

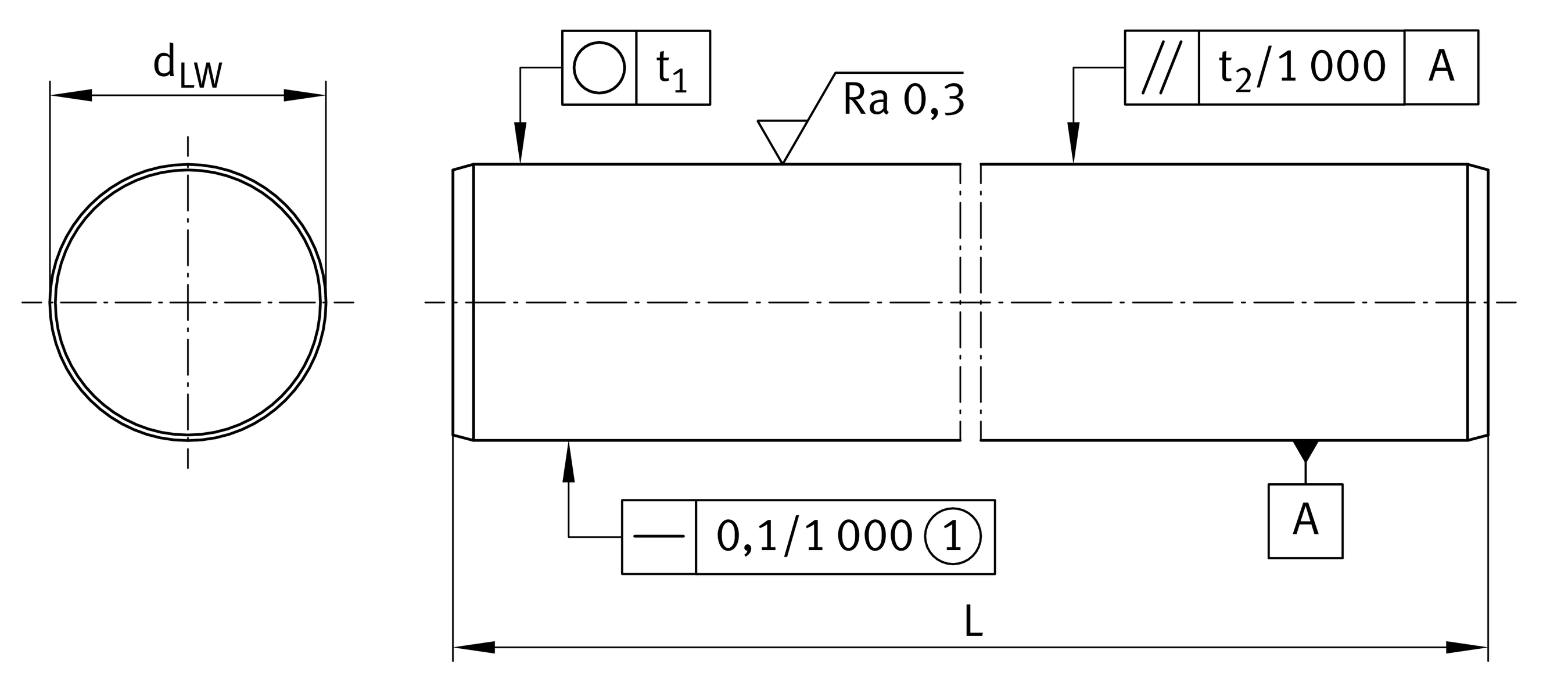

安裝尺寸
| dLWTol | h7 | Diameter Shaft |
| h7Tol | 0 µm | Diameter Shaft high |
| h7Tol | -18 µm | Diameter Shaft low |
| SHDmin | 0.6 mm | Surface Hardness Depth 1 |
| t1 | 5 µm | Roundness |
| t2 | 8 µm | Parallelism 2 |

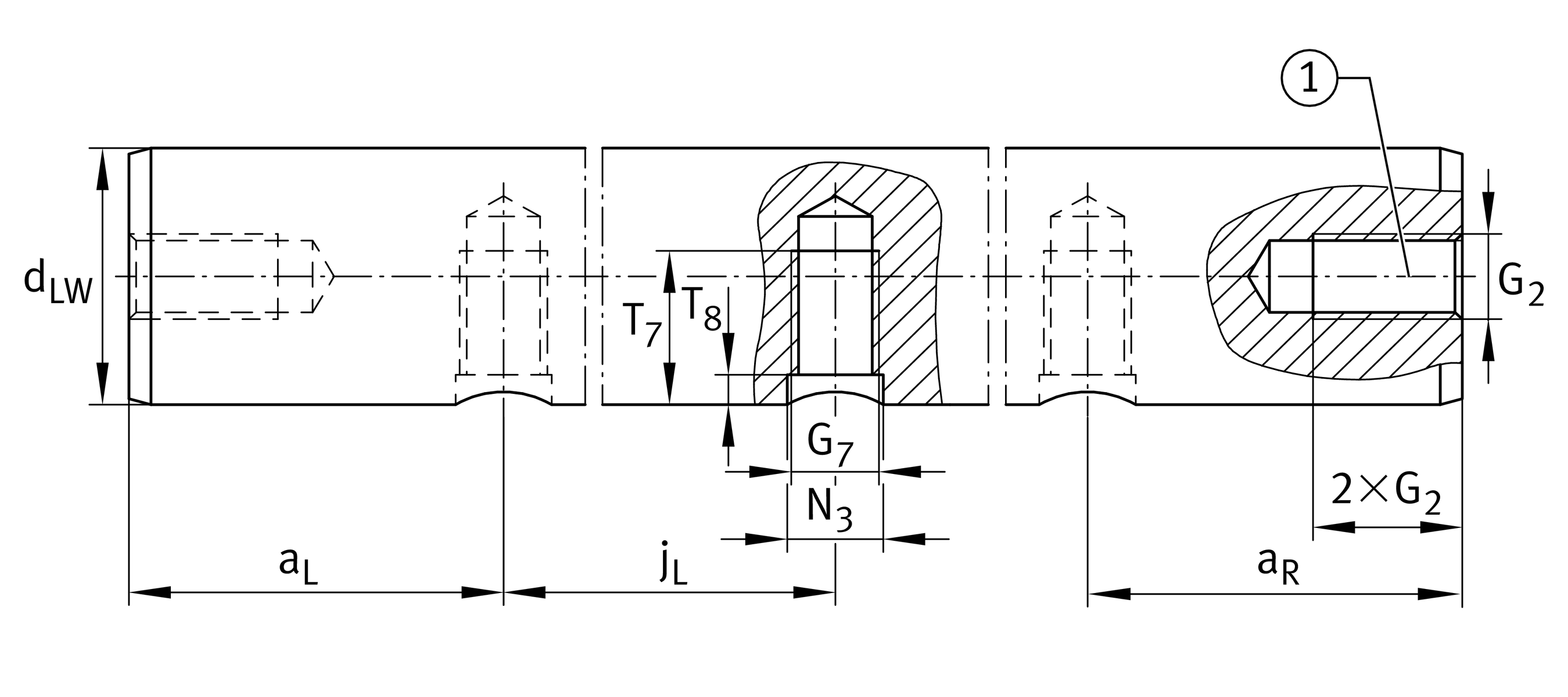

Main dimensions
| G2 | M4-M5-M6 | Axial thread (size) |

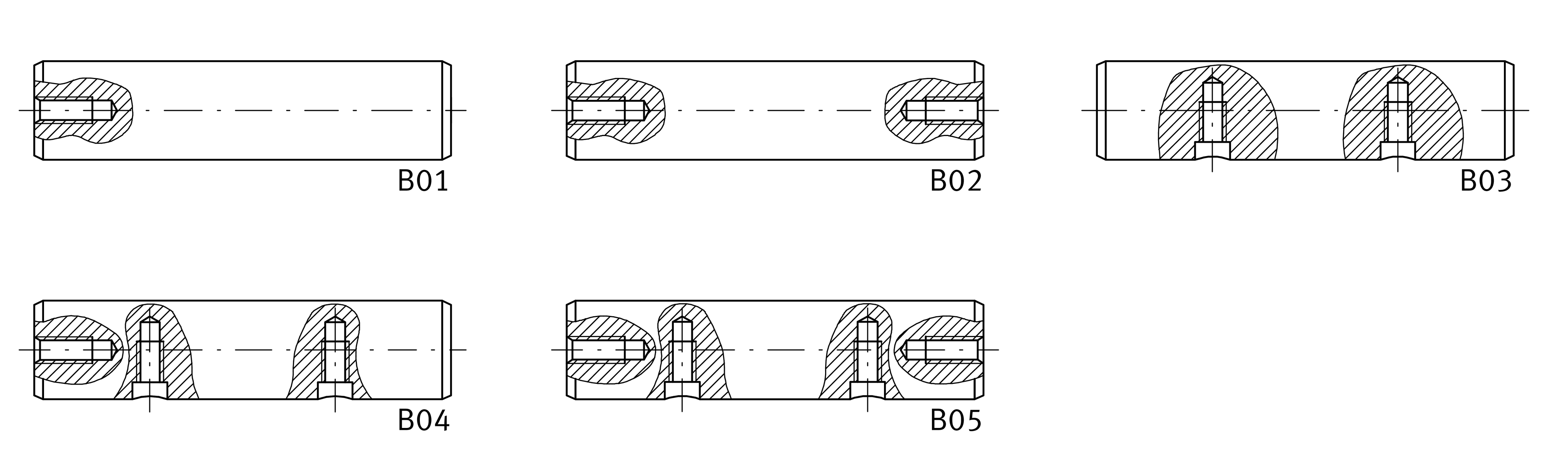

| B01 | M4-M5-M6 | Drilling pattern axial thread one side |
| B02 | M4-M5-M6 | Drilling pattern axial thread both side |
您目前的產品型號
| Size code | 14 | |
| Tolerance diameter | h7 | |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
| Coating | CR | Chrom |
