主要尺寸與性能資料
| dLW | 8 mm | Diameter Shaft |
| Lmax | 4,000 mm | Length total maximum |
| ≈m | 0.39 kg/m | 重量 |

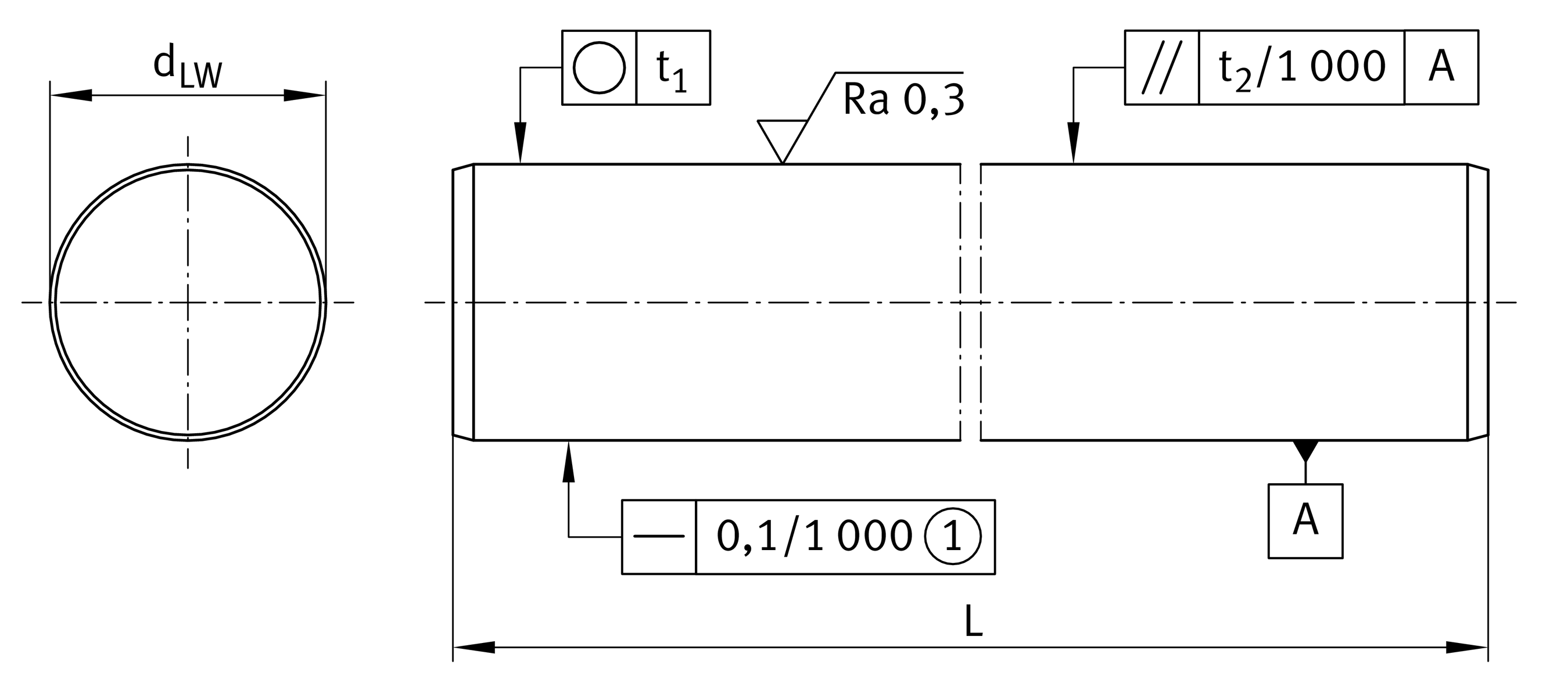

安裝尺寸
| dLWTol | h6 | Diameter Shaft |
| h6Tol | 0 µm | Diameter Shaft high |
| h6Tol | -9 µm | Diameter Shaft low |
| SHDmin | 0.4 mm | Surface Hardness Depth 1 |
| t1 | 4 µm | Roundness |
| t2 | 6 µm | Parallelism 2 |

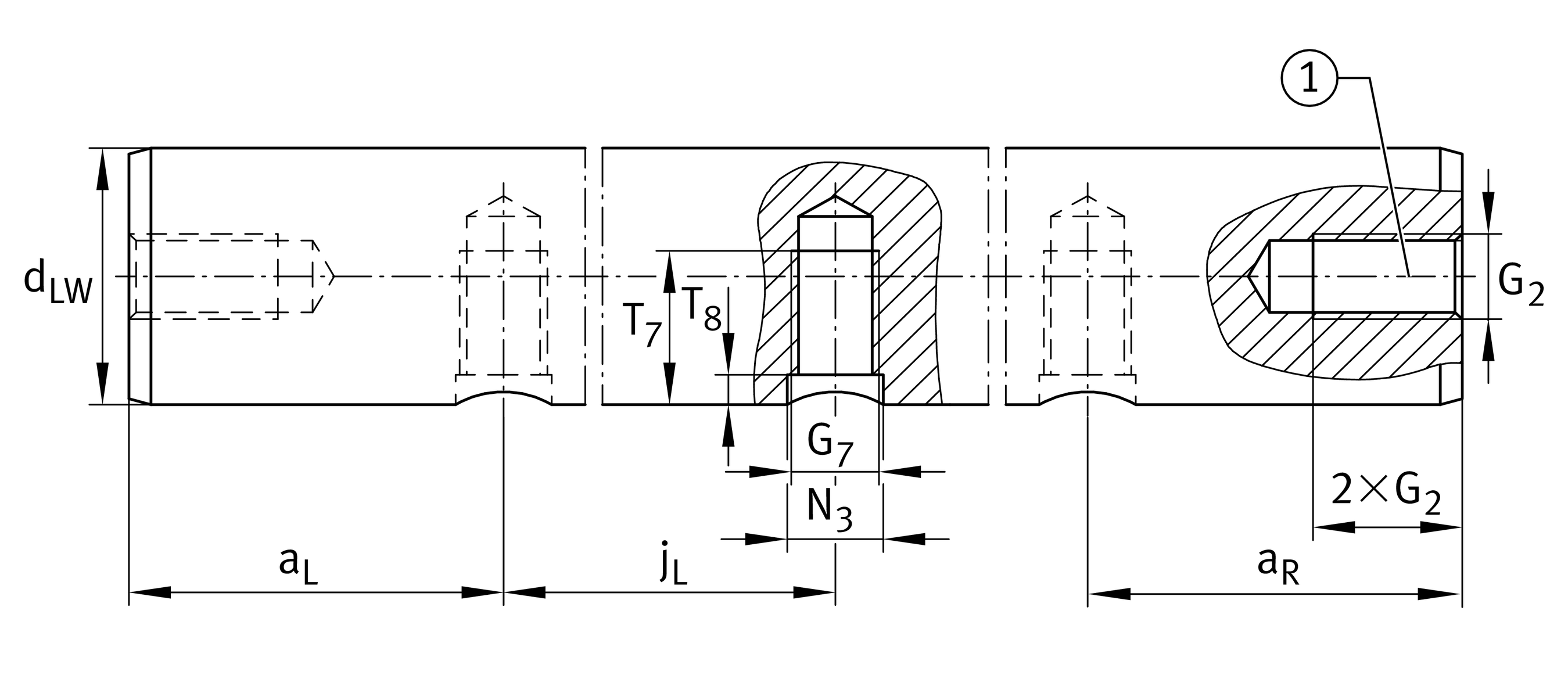

Main dimensions
| G2 | M3 | Axial thread (size) |

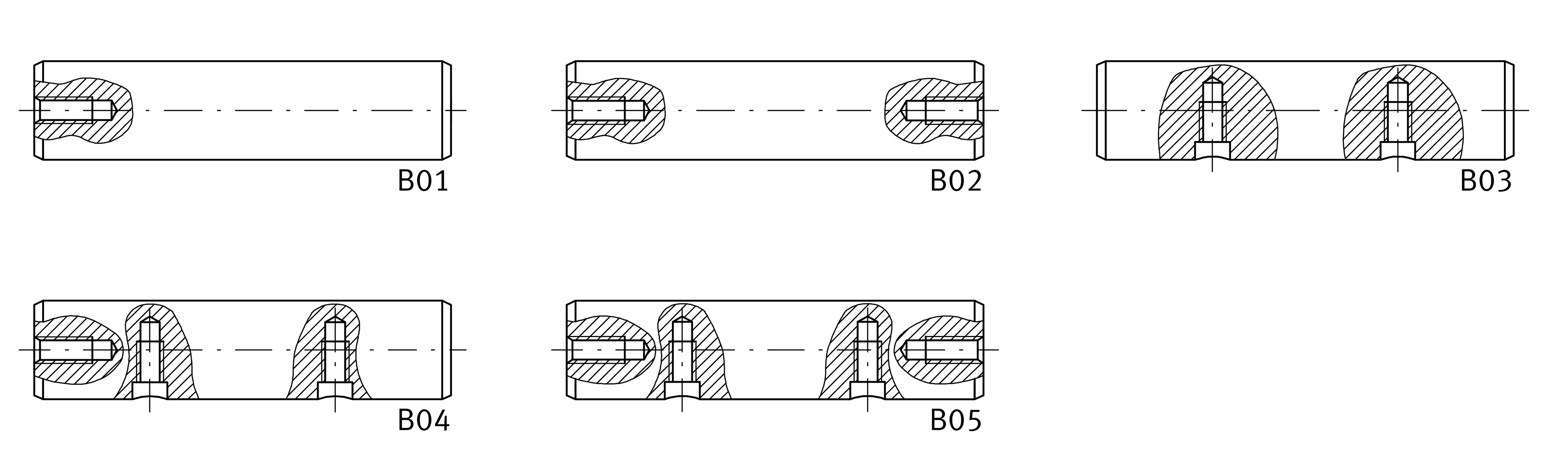

| B01 | M3 | Drilling pattern axial thread one side |
| B02 | M3 | Drilling pattern axial thread both side |
您目前的產品型號
| Size code | 08 | |
| Tolerance diameter | h6 | |
| Material | CF53 | Heat treatable steel (material no.:1.1213) |
