主要尺寸與性能資料
| dLW | 6 mm | Diameter Shaft |
| Lmax | 4,000 mm | Length total maximum |
| ≈m | 0.22 kg/m | 重量 |

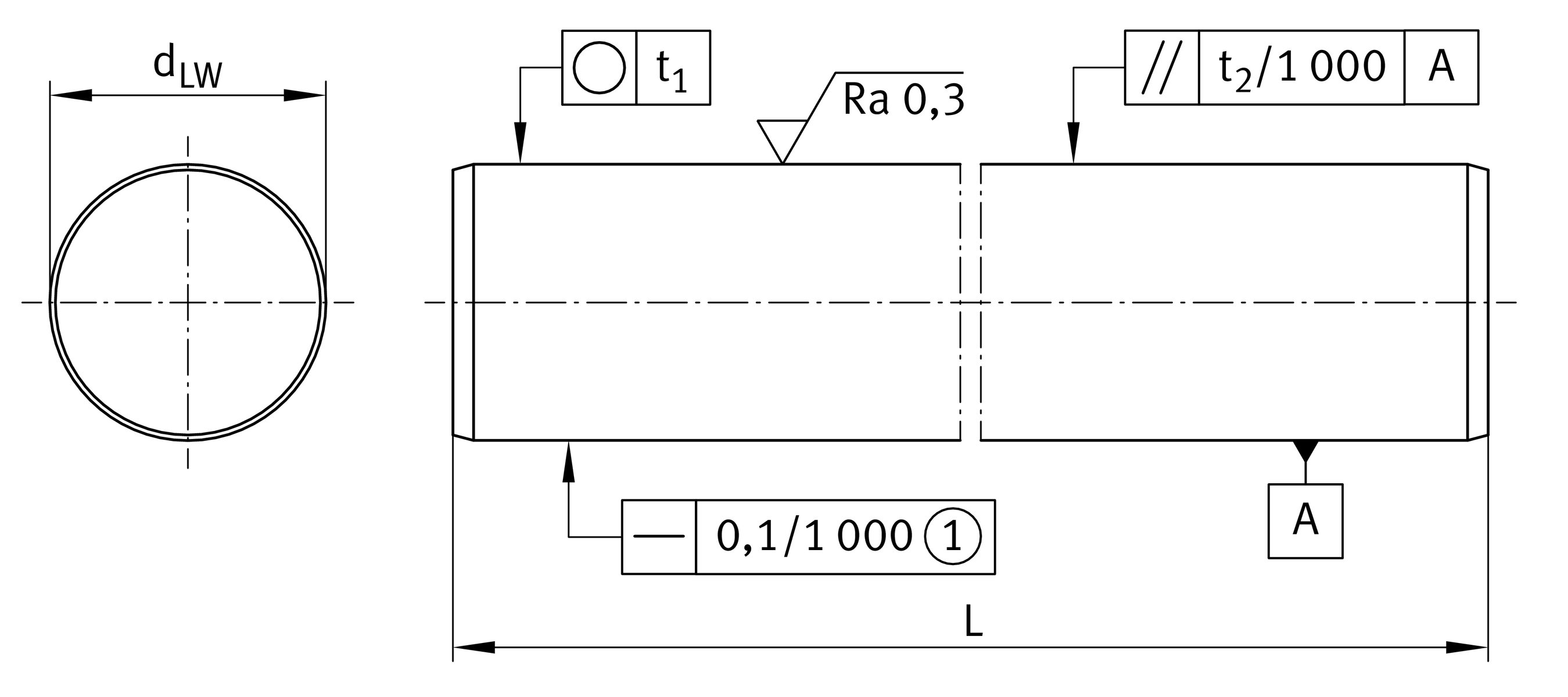

安裝尺寸
| dLWTol | h6 | Diameter Shaft |
| h6Tol | 0 µm | Diameter Shaft high |
| h6Tol | -8 µm | Diameter Shaft low |
| SHDmin | 0.4 mm | Surface Hardness Depth 1 |
| t1 | 4 µm | Roundness |
| t2 | 5 µm | Parallelism 2 |
您目前的產品型號
| Size code | 06 | |
| Tolerance diameter | h6 | |
| Material | X90 | corrosion-resistant steel (material no.:1.4112) |
