主要尺寸與性能資料
| lmax | 3,000 mm | length maximum 1 |
| B | 162 mm | 寬度 |
| Tol B | -0,1 | tolerance |
| H | 60 mm | 高度 |
| Tol Hnull | -0,1 | tolerance |

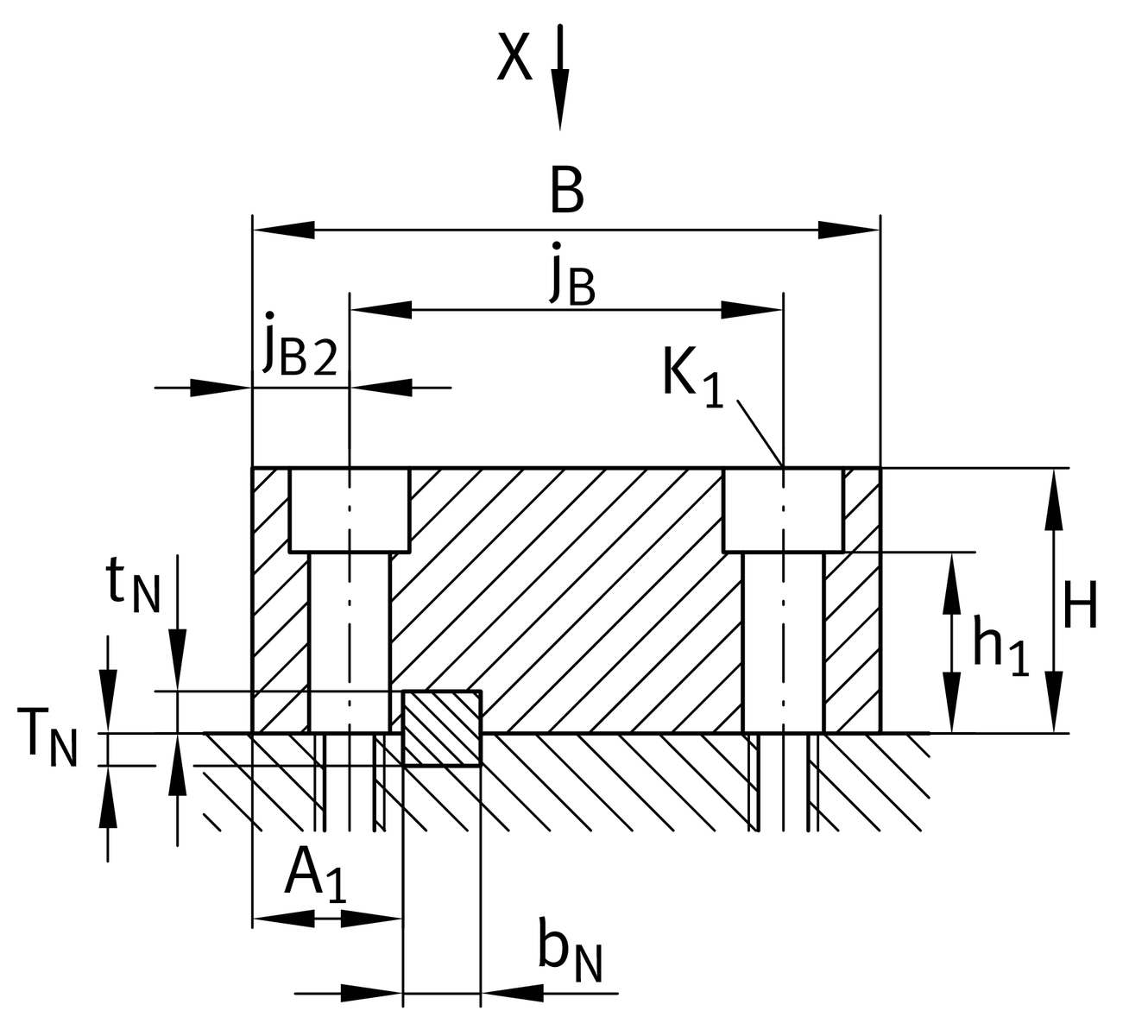

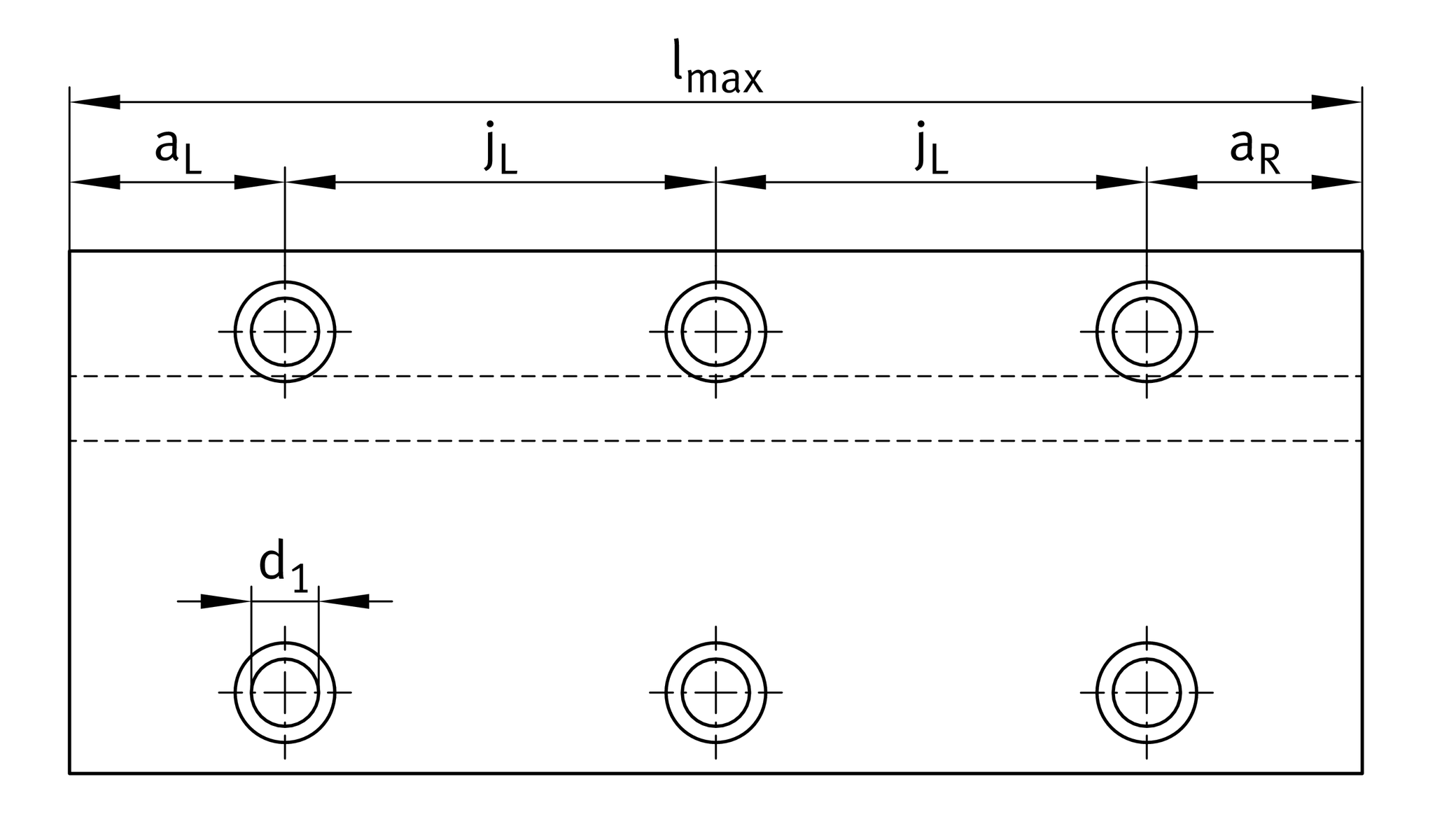

安裝尺寸
| jB | 110 mm | |
| jB2 | 26 mm | |
| jL | 80 mm | |
| aR min | 20 mm | 2 |
| aR max | 60 mm | 2 |
| aL min | 20 mm | 2 |
| aL max | 60 mm | 2 |
| h1 | 35.5 mm | |
| A1 | 37.25 mm | slot position 3 |
| bN | 18 mm | width slot 3 |
| TN | 8 mm | 3 |
| tN | 9.5 mm | 3 |
16x16 | square steel bar DIN EN 10278 4 | |
| K1 | M16 | fixing srews (DIN ISO 4762-12.9) |
| K1 MA | 350 Nm | torques fixing screws 5 |
| d1 | 18.5 mm | 內徑 |
Related products
KA26,5-M | suitable closing plug 6 | |
RUS65210, PR14135 | suitable for linear roller bearing 7 |
您目前的產品型號
| Size code | 16260 |
