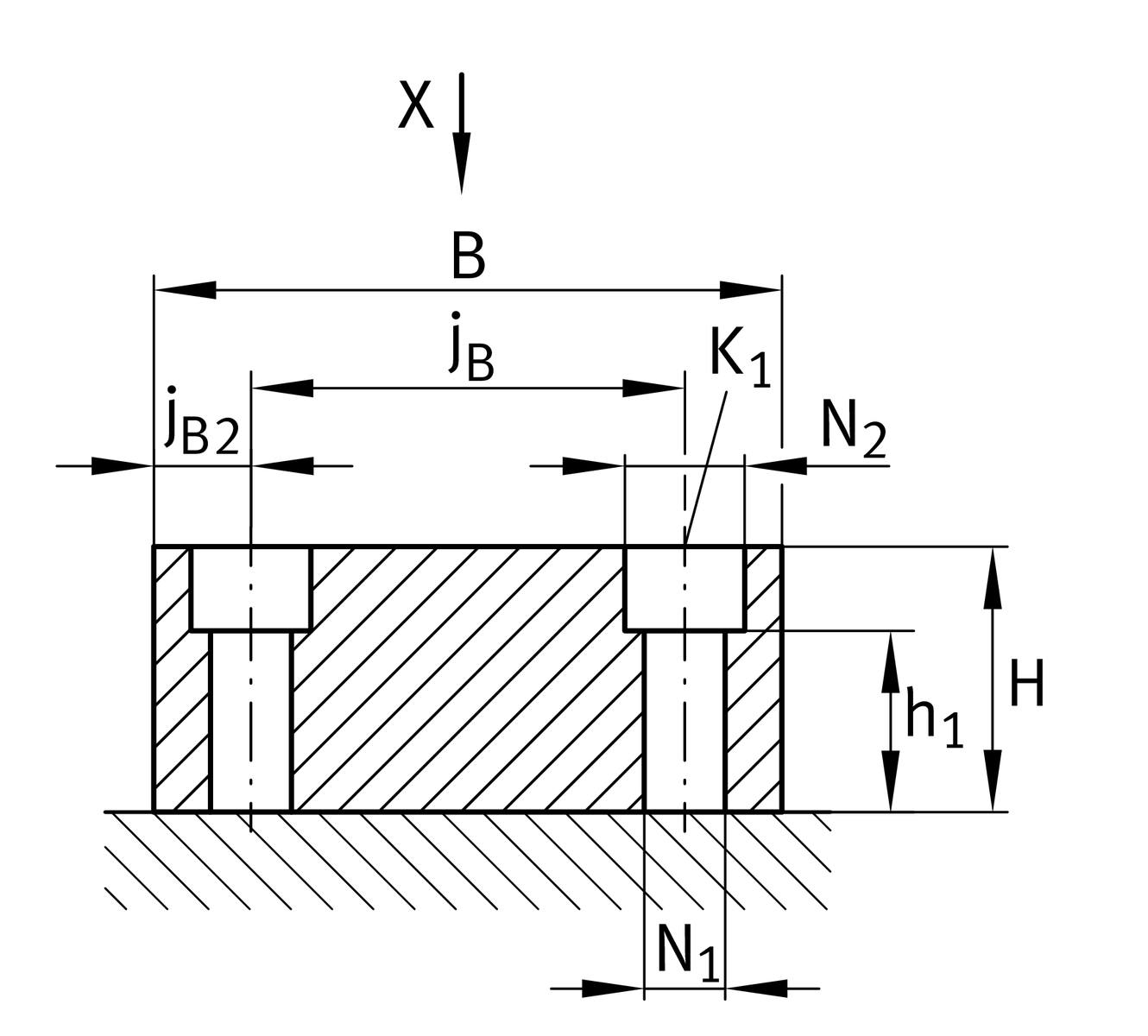

主要尺寸與性能資料
| lmax | 3,000 mm | length maximum 1 |
| B | 97 mm | 寬度 |
| Tol B | -0,1 | tolerance |
| H | 41 mm | 高度 |
| Tol H | -0,1 | tolerance |

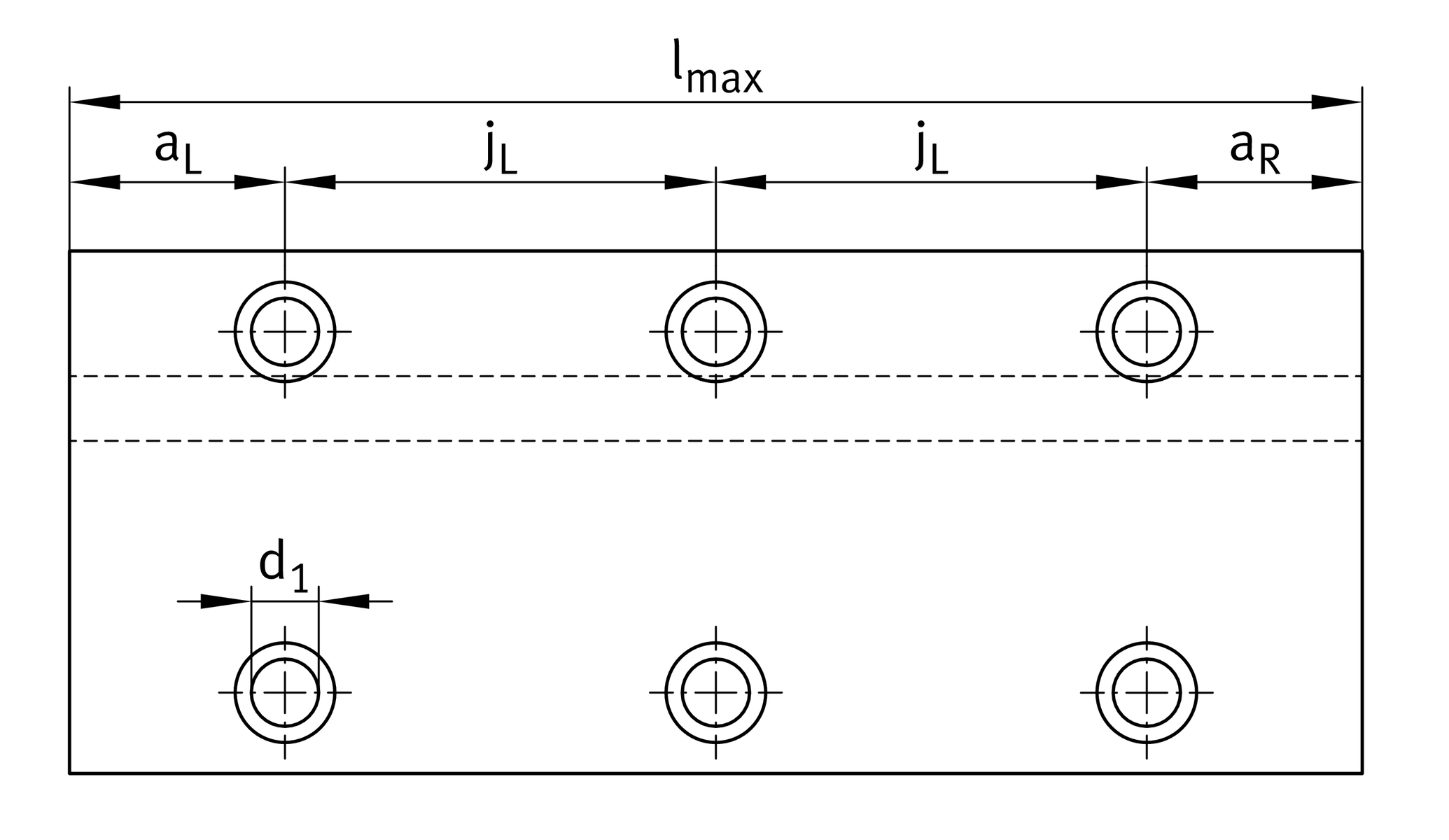

安裝尺寸
| jB | 67 mm | |
| jB2 | 15 mm | |
| jL | 80 mm | |
| aR min | 15 mm | 2 |
| aR max | 55 mm | 2 |
| aL min | 15 mm | 2 |
| aL max | 55 mm | 2 |
27.5 mm | ||
| N2 | 18.5 mm | |
| K1 | M10 | fixing srews (DIN ISO 4762-12.9) |
| K1 MA | 83 Nm | torques fixing screws 3 |
| d1 | 12.5 mm | 內徑 |
Related products
KVK18,5 | suitable closing plug 4 | |
RUS26086, RUS26102, RUS26126, RUSV42086-KS, RUSV42102-KS, RUSV42126-KS, PR14061 | suitable for linear roller bearing 5 |
您目前的產品型號
| Size code | 9741 |
