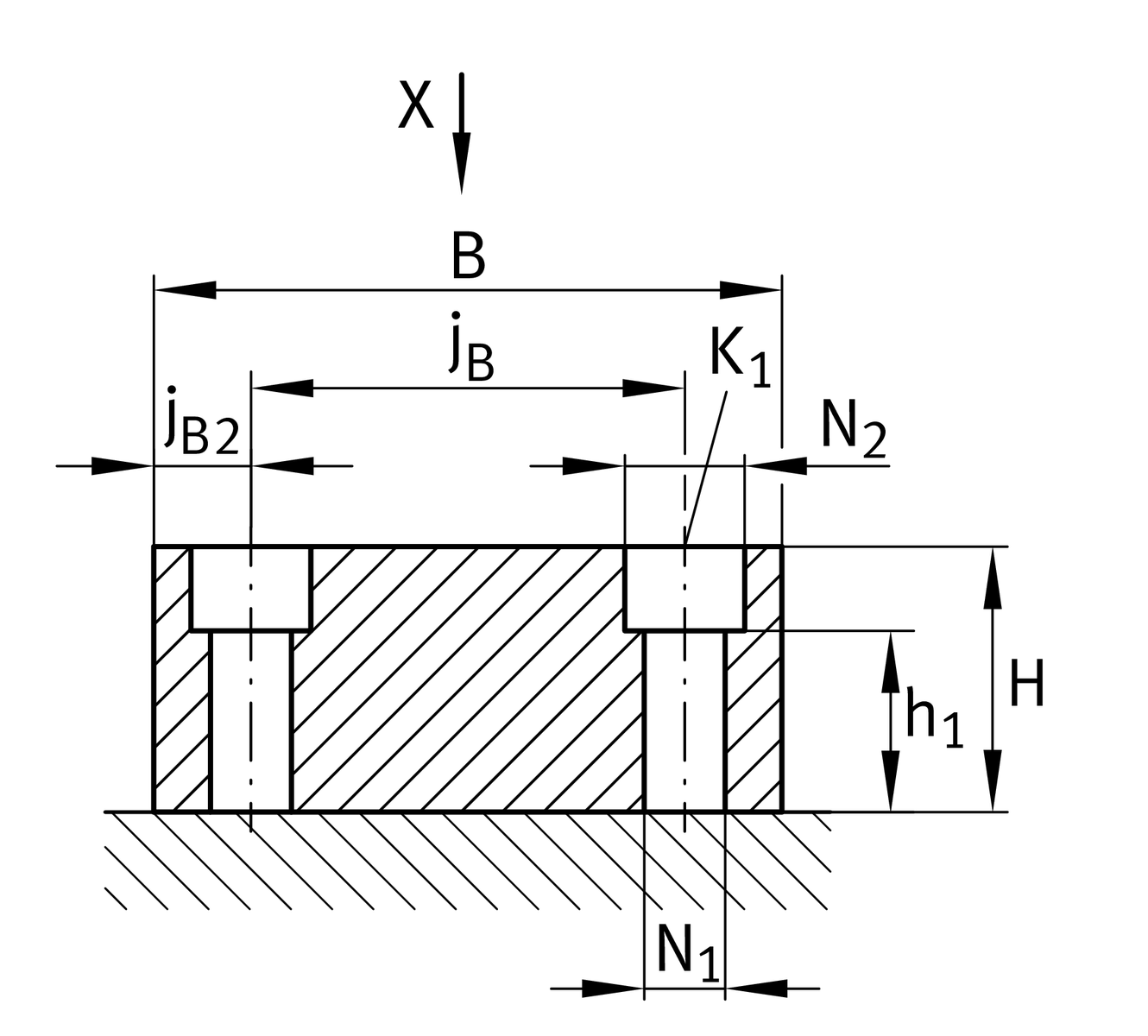

主要尺寸與性能資料
| lmax | 3,000 mm | length maximum 1 |
| B | 125 mm | 寬度 |
| Tol B | -0,1 | tolerance |
| H | 53 mm | 高度 |
| Tol H | -0,1 | tolerance |

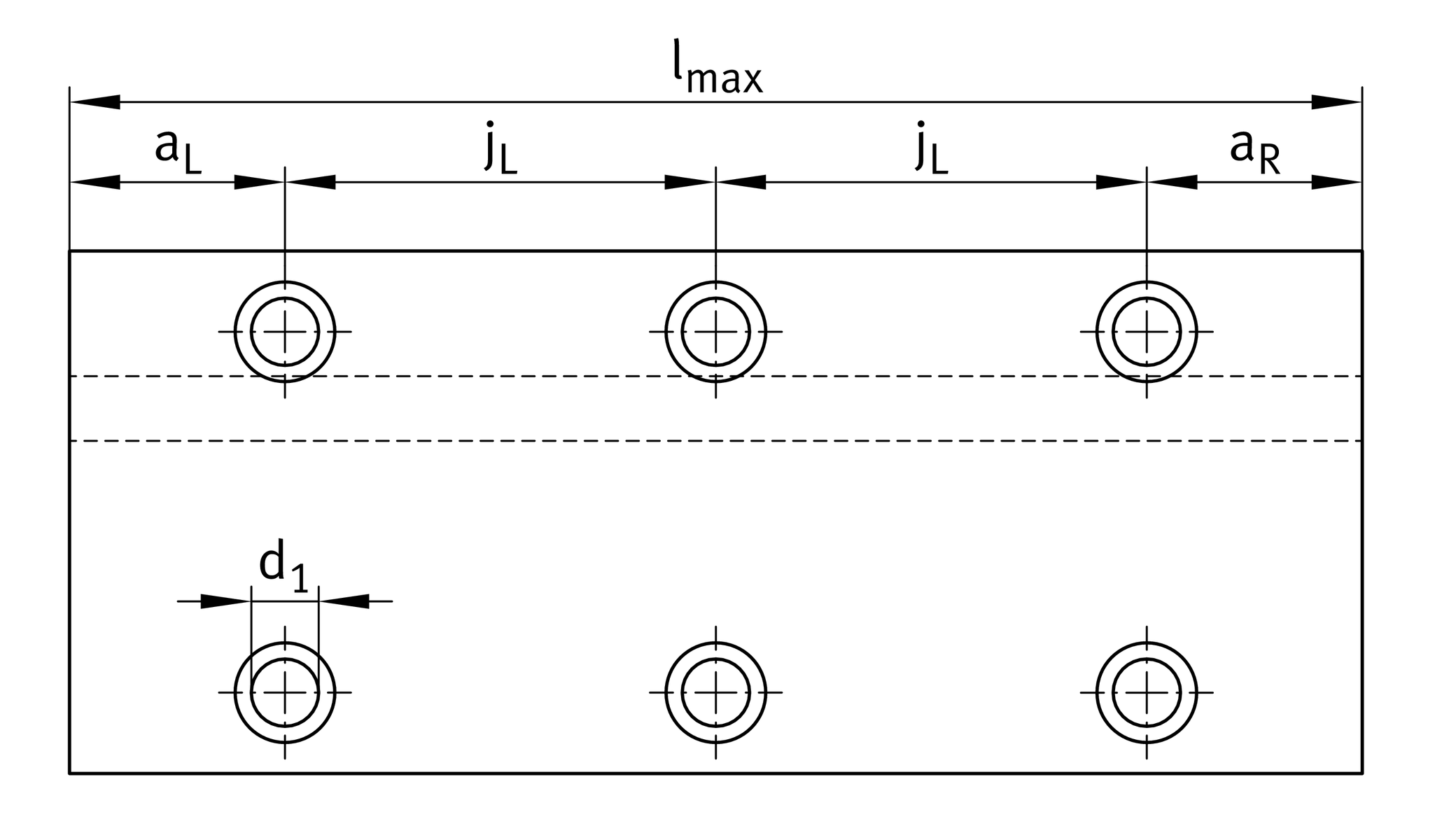

安裝尺寸
| jB | 89 mm | |
| jB2 | 18 mm | |
| jL | 80 mm | |
| aR min | 15 mm | 2 |
| aR max | 55 mm | 2 |
| aL min | 15 mm | 2 |
| aL max | 55 mm | 2 |
37.5 mm | ||
| N2 | 20 mm | |
| K1 | M12 | fixing srews (DIN ISO 4762-12.9) |
| K1 MA | 140 Nm | torques fixing screws 3 |
| d1 | 14 mm | 內徑 |
Related products
KVK20 | suitable closing plug 4 | |
RUS38134, RUS38206, RUSV60134-KS, RUSV60206-KS, PR14089 | suitable for linear roller bearing 5 |
您目前的產品型號
| Size code | 12553 |
