主要尺寸與性能資料
| lmin | 70 mm | length minimum |
| lmax | 2,000 mm | length maximum 1 |
| B | 66 mm | 寬度 |
| Tol B | -0,1 | tolerance |
| H | 28 mm | 高度 |
| Tol H | -0,1 | tolerance |

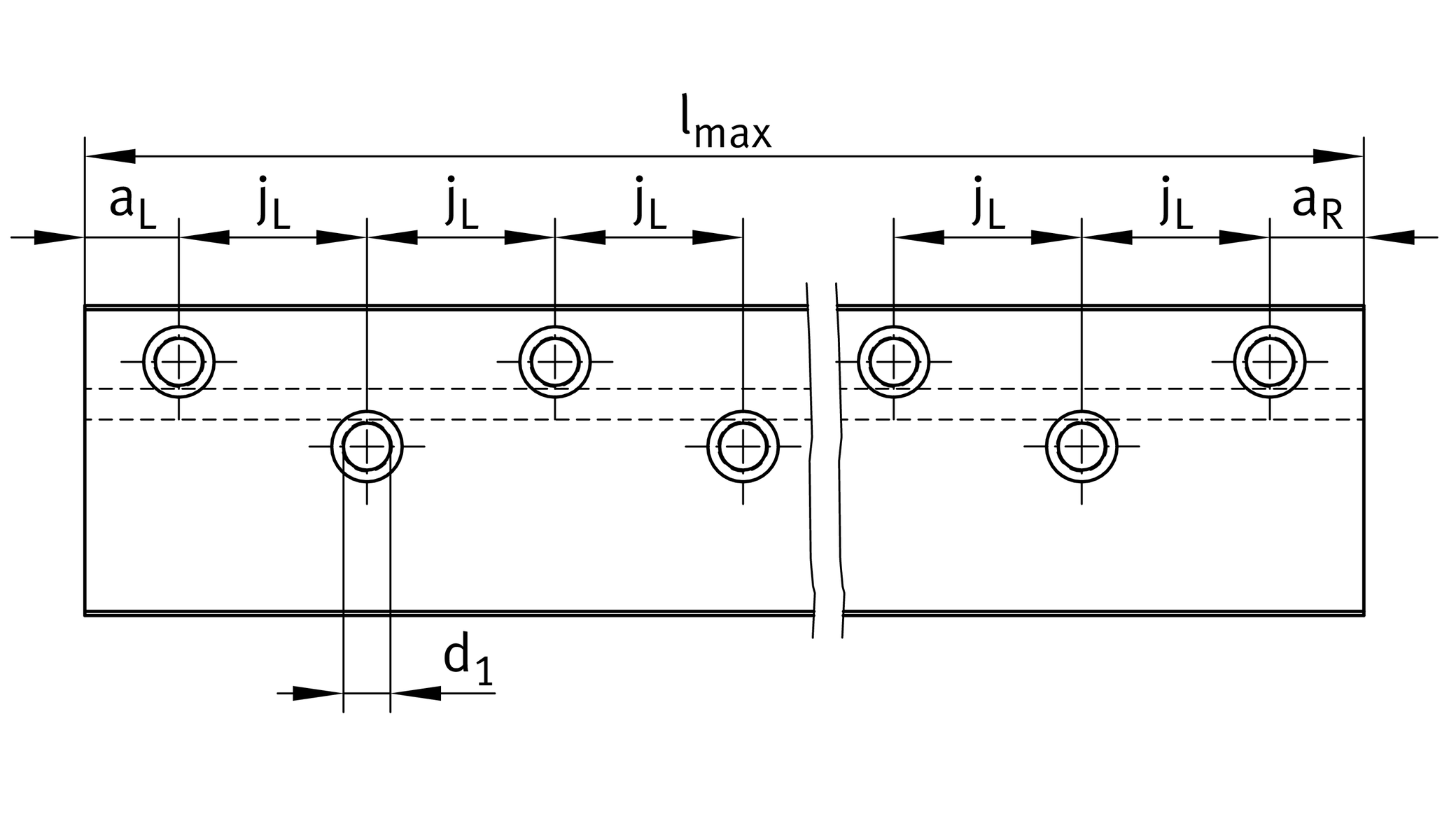

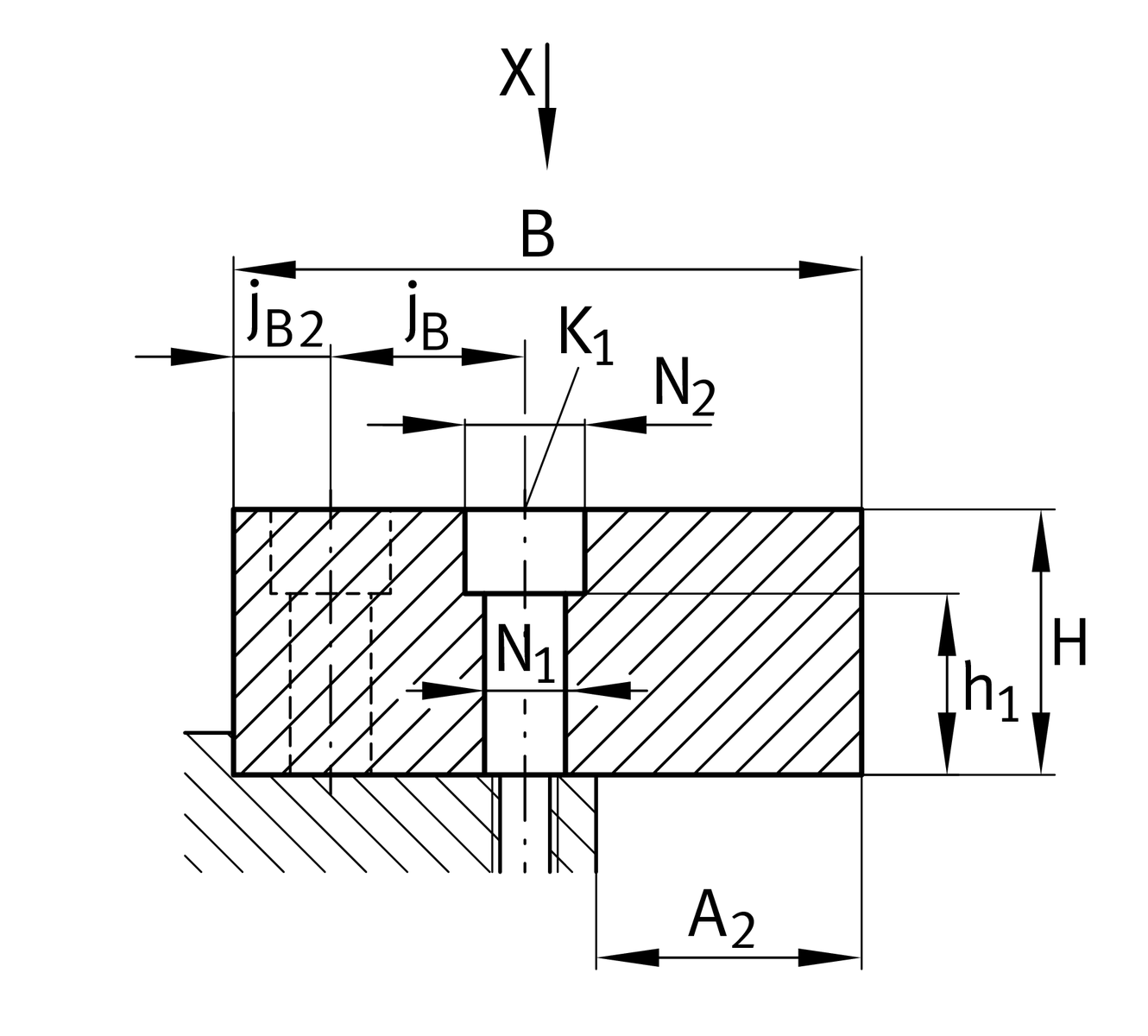

安裝尺寸
| jB | 18 mm | |
| jB2 | 12 mm | |
| jL | 40 mm | |
| aR min | 15 mm | 2 |
| aR max | 35 mm | 2 |
| aL min | 15 mm | 2 |
| a | 35 mm | 2 |
| h1 | 16.5 mm | |
| A2 max | 28 mm | |
| N2 | 15 mm | |
| K1 | M8 | fixing srews (DIN ISO 4762-12.9) |
| K1 MA | 41 Nm | torques fixing screws 3 |
| d1 | 10 mm | 內徑 |
Related products
KVK15 | suitable closing plug 4 | |
RUS19069, RUS19105, RUSV30069-KS, RUSV30105-KS, PR14032, PR14044 | suitable linear roller bearing 5 |
您目前的產品型號
| Size code | 6628 | |

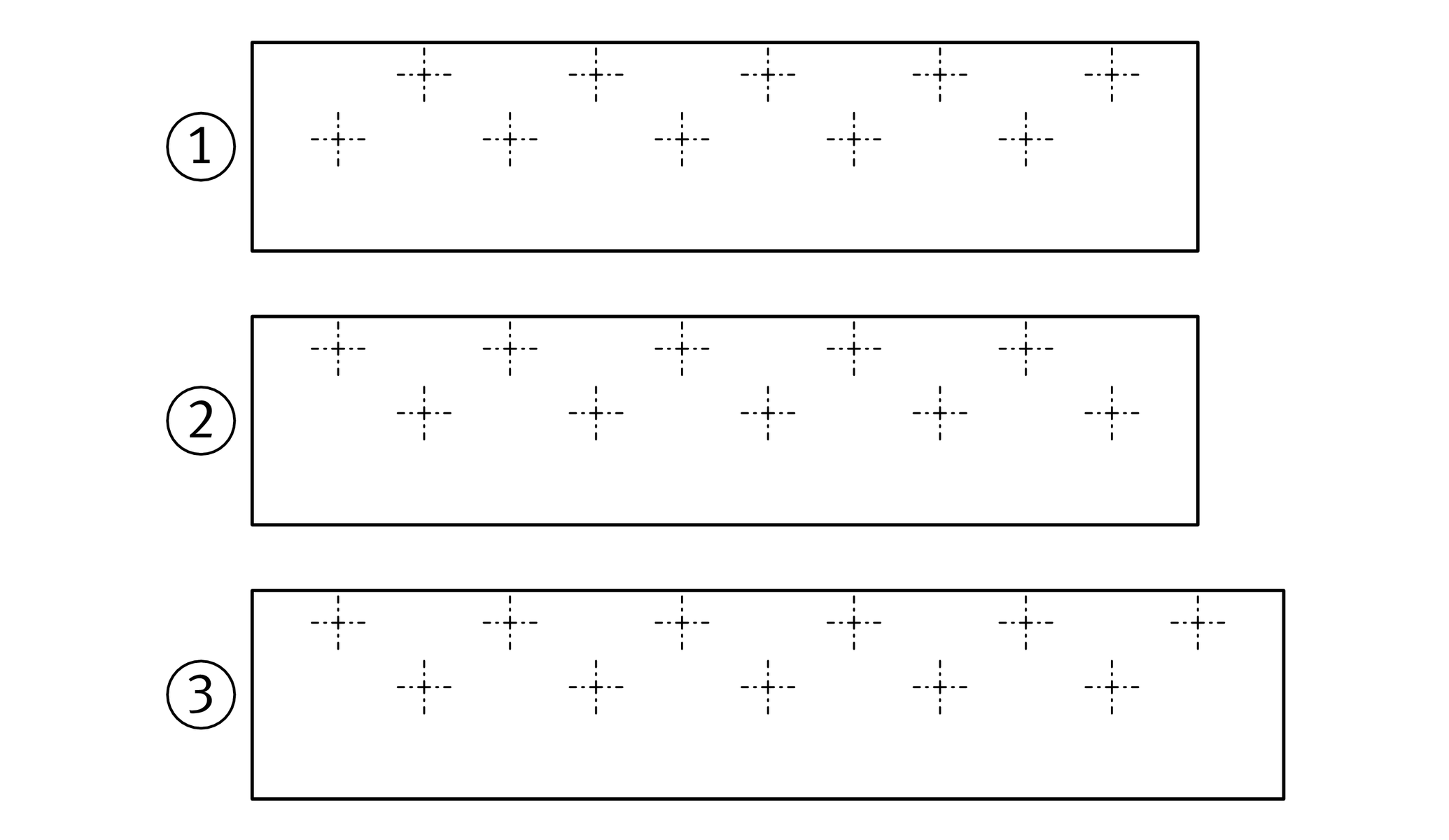

| Hole pattern of guideways | BL | Hole pattern on left side |
| Quality grade of guideways | Q6 | requirements of precision table guidance systems in machine tool construction |
