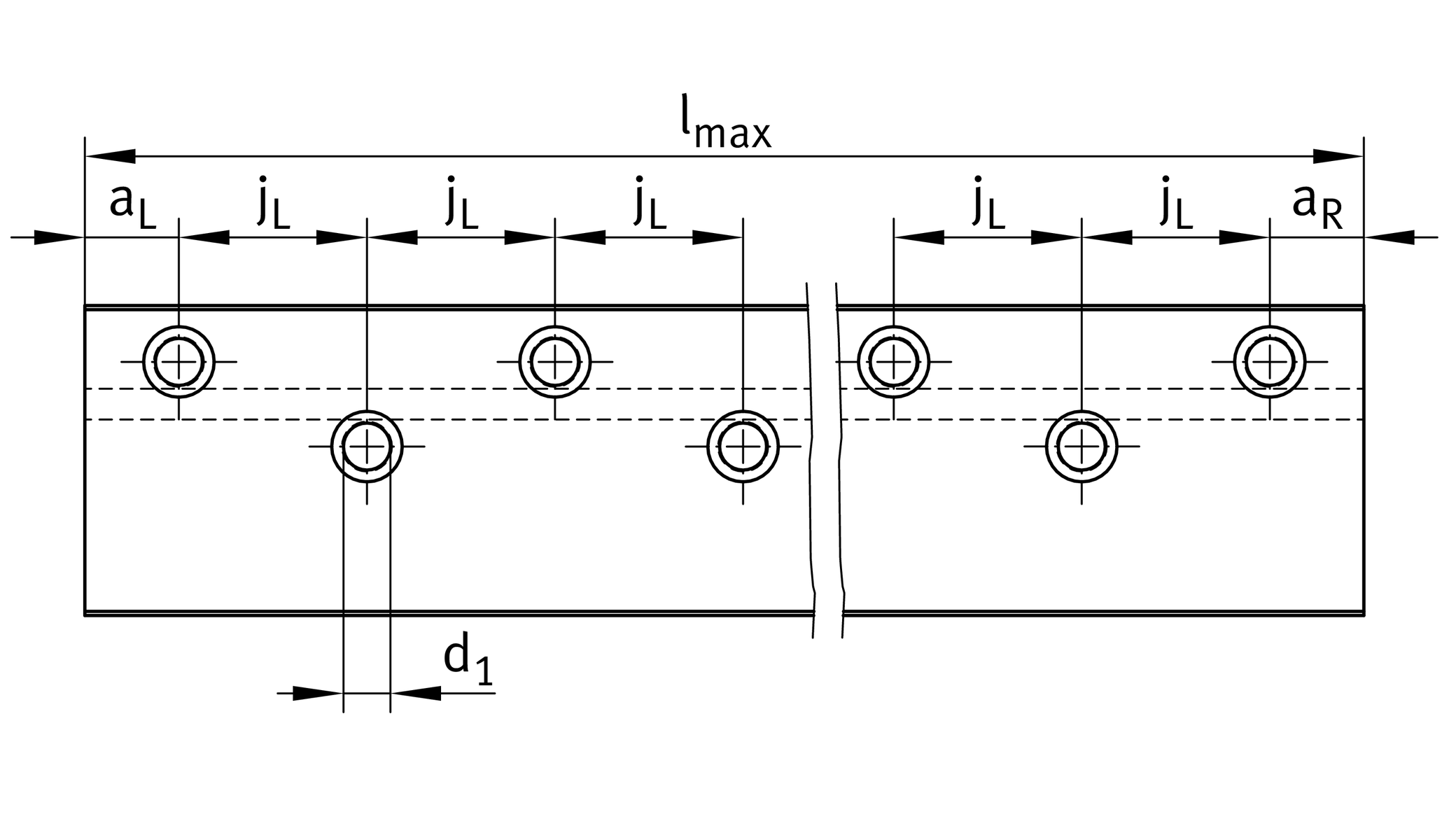

主要尺寸與性能資料
| lmax | 3,000 mm | length maximum 1 |
| B | 162 mm | 寬度 |
| Tol B | -0,1 | tolerance |
| H | 60 mm | 高度 |
| Tol H | -0,1 | tolerance |

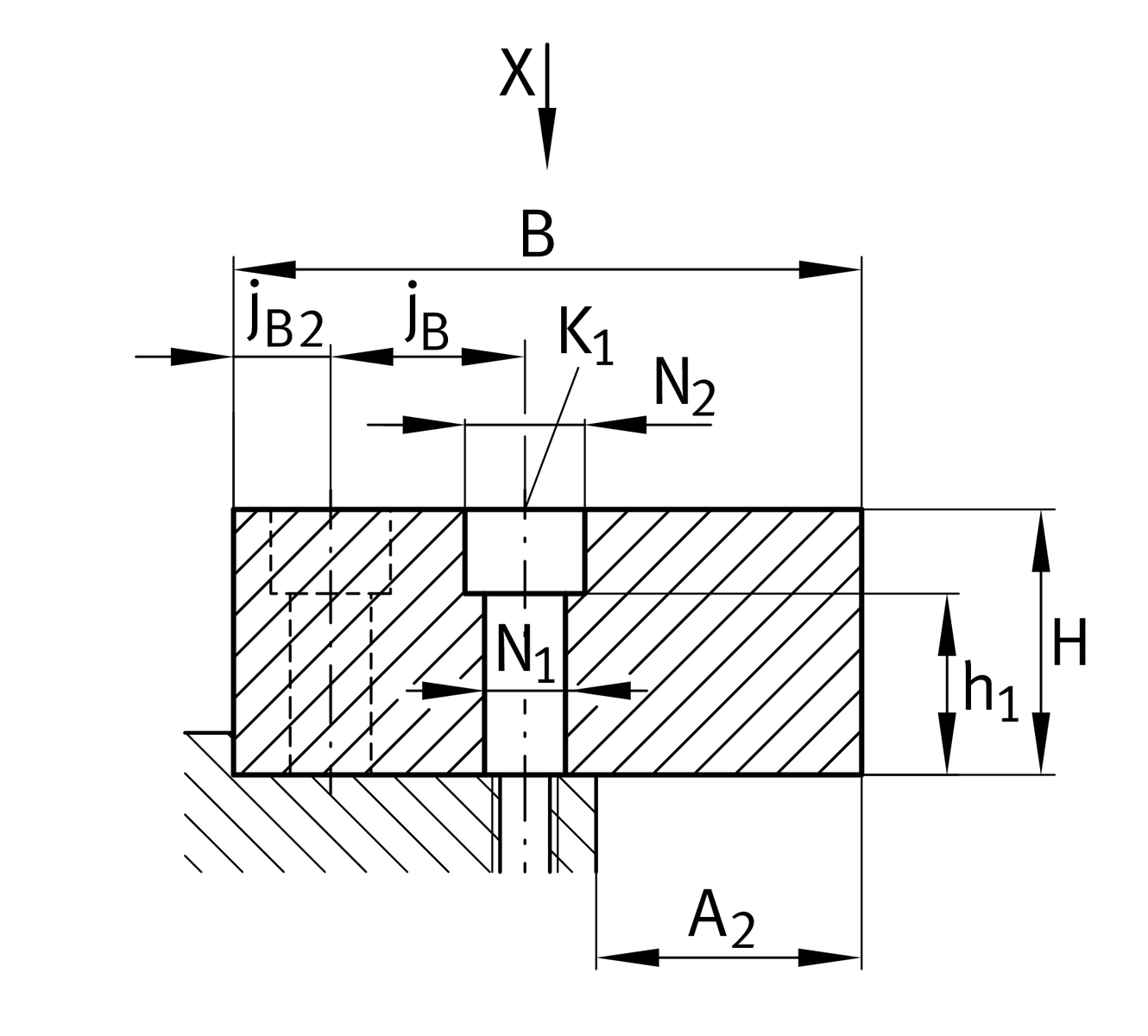

安裝尺寸
| jB | 44 mm | |
| jB2 | 20 mm | |
| jL | 40 mm | |
| aR min | 20 mm | 2 |
| aR max | 40 mm | 2 |
| aL min | 20 mm | 2 |
| a | 40 mm | 2 |
| h1 | 35.5 mm | |
| A2 max | 77 mm | |
| N2 | 26.5 mm | |
| K1 | M16 | fixing srews (DIN ISO 4762-12.9) |
| K1 MA | 350 Nm | torques fixing screws 3 |
| d1 | 18.5 mm | 內徑 |
Related products
KA26,5-M | suitable closing plug 4 | |
RUS65210, PR14135 | suitable linear roller bearing 5 |
您目前的產品型號
| Size code | 16260 |
