主要尺寸與性能資料

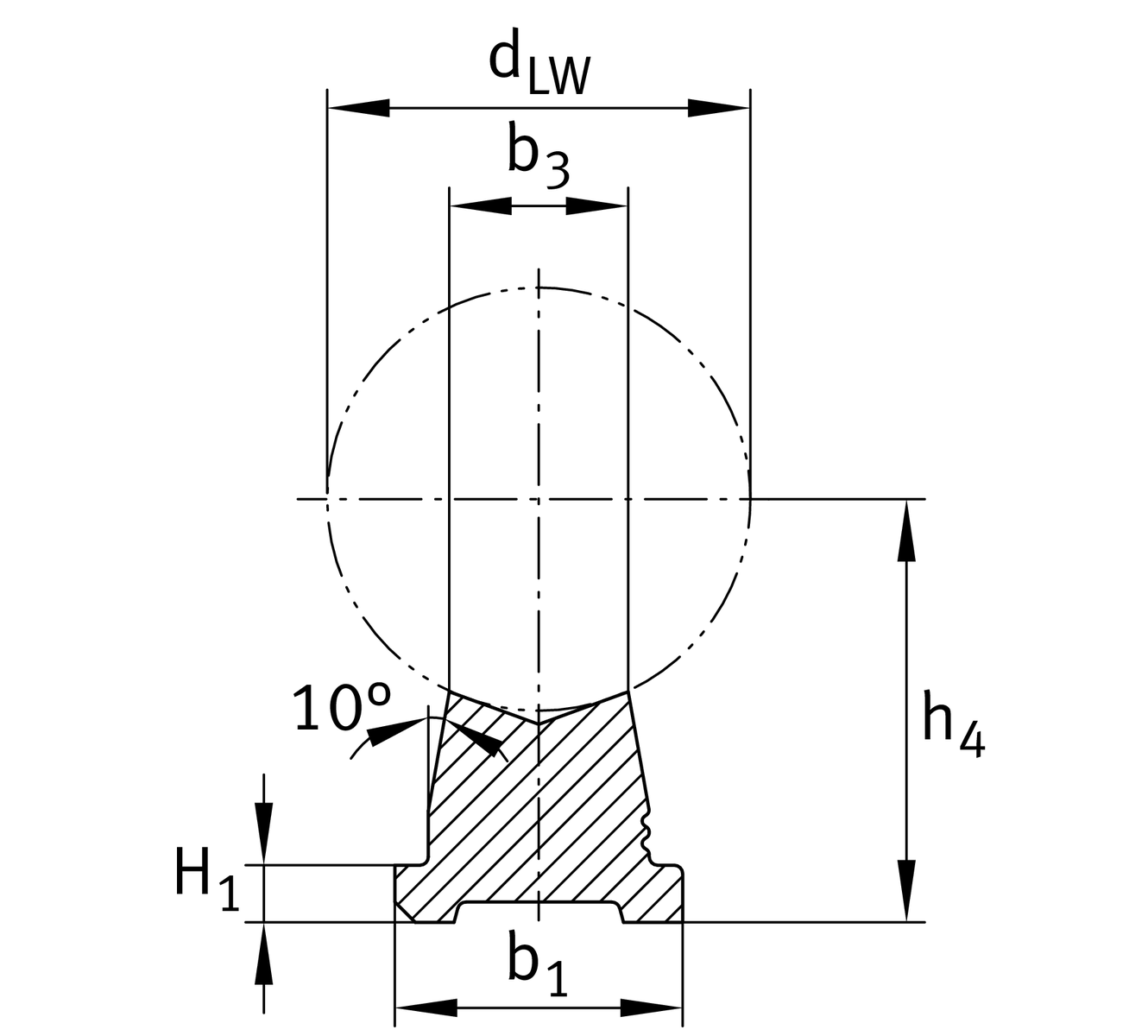

| BGR | 10 | Dimension of support body |
| h4 | 0.687 in | Height dimension 1 |
| Tol h4 | 0.002 in | Height dimension tolerance High |
| Tol h4 | -0.002 in | Height dimension tolerance Low |
| b1 | 0.45 in | Support Rail-Width-Bottom |

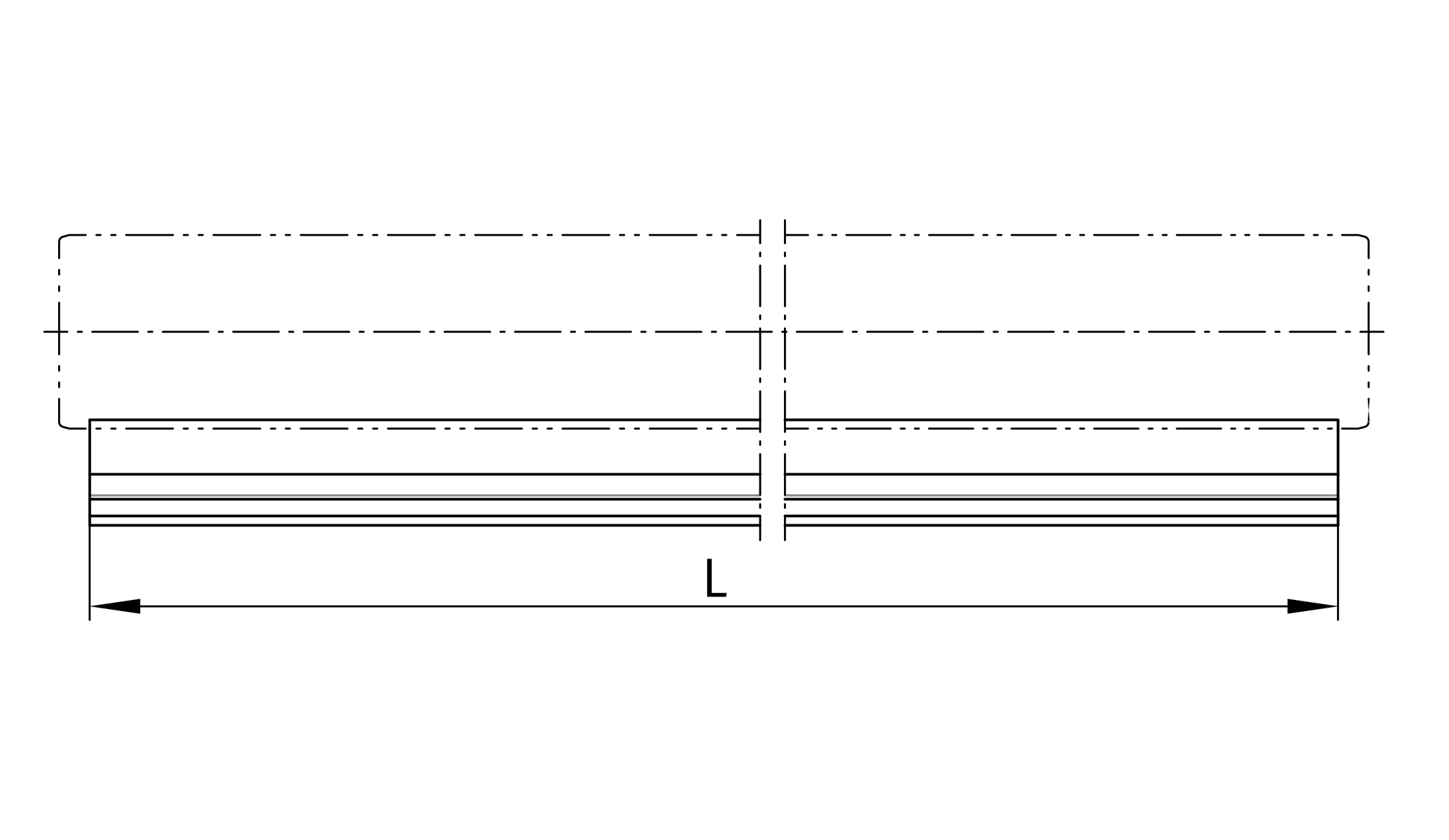

| Lmax | 48 in | Support rail length |
安裝尺寸
| a2 | 0.225 in | Support rail width stop bar |
| Tol a2 | 0.05 in | Height dimension tolerance High |
| Tol a2 | -0.05 in | Height dimension tolerance Low |
| b3 | 0.269 in | Support rail width prism |
| H1 | 0.12 in | Support Rail height stop bar |
| m | 0.17 lbs/ft | Support Rail weight |
您目前的產品型號
| Diameter shaft | 5/8" | dLW |
