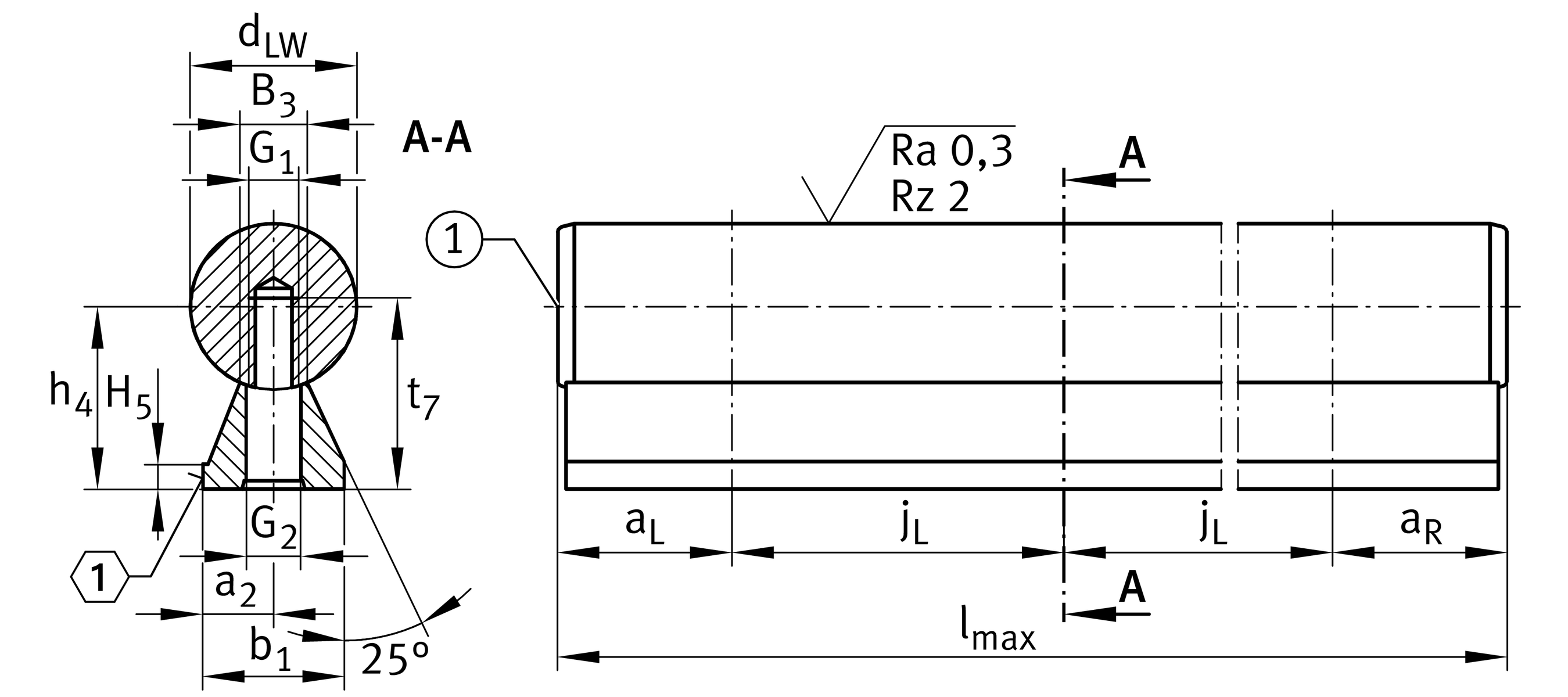

主要尺寸與性能資料
| dLW | 40 mm | Diameter shaft |
| dLW | 40 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter Shaft |
| h4 | 39 mm | Height dimension 1 |
| h4 tol | 0.02 mm | Height dimension tolerance (High) |
| h4 tol | -0.02 mm | Height dimension tolerance (Low) |
| b1 | 30 mm | Support rail width bottom |
| Lmax | 6,000 mm | Shaft and support rail unit length 2 |
| Ltol max | 3 mm | length tolerance (max) |
| Ltol min | -3 mm | length tolerance (min) |
| ≈m | 11.03 kg/m | 重量 |
安裝尺寸
| a2 | 15 mm | Bore G2 Distance stop |
| aL min | 20 mm | distance thread aL (min) 3 |
| aL max | 91 mm | distance thread aL (max) 3 |
| aR min | 20 mm | distance thread aR (min) 3 |
| aR max | 91 mm | distance thread aR (max) 3 |
| B3 | 14.5 mm | Support rail width prism |
| G1 | M12 | 螺紋尺寸 (shaft) |
| G2 | 13.5 mm | Bore connection construction |
| H5 | 4 mm | Support body height stop |
| jL | 100 mm | bore length ditance jL |
| t7 | 39.5 mm | Screw depth support rail 4 |
| ms | 11.03 kg/m | Shaft and support rail unit weight |
