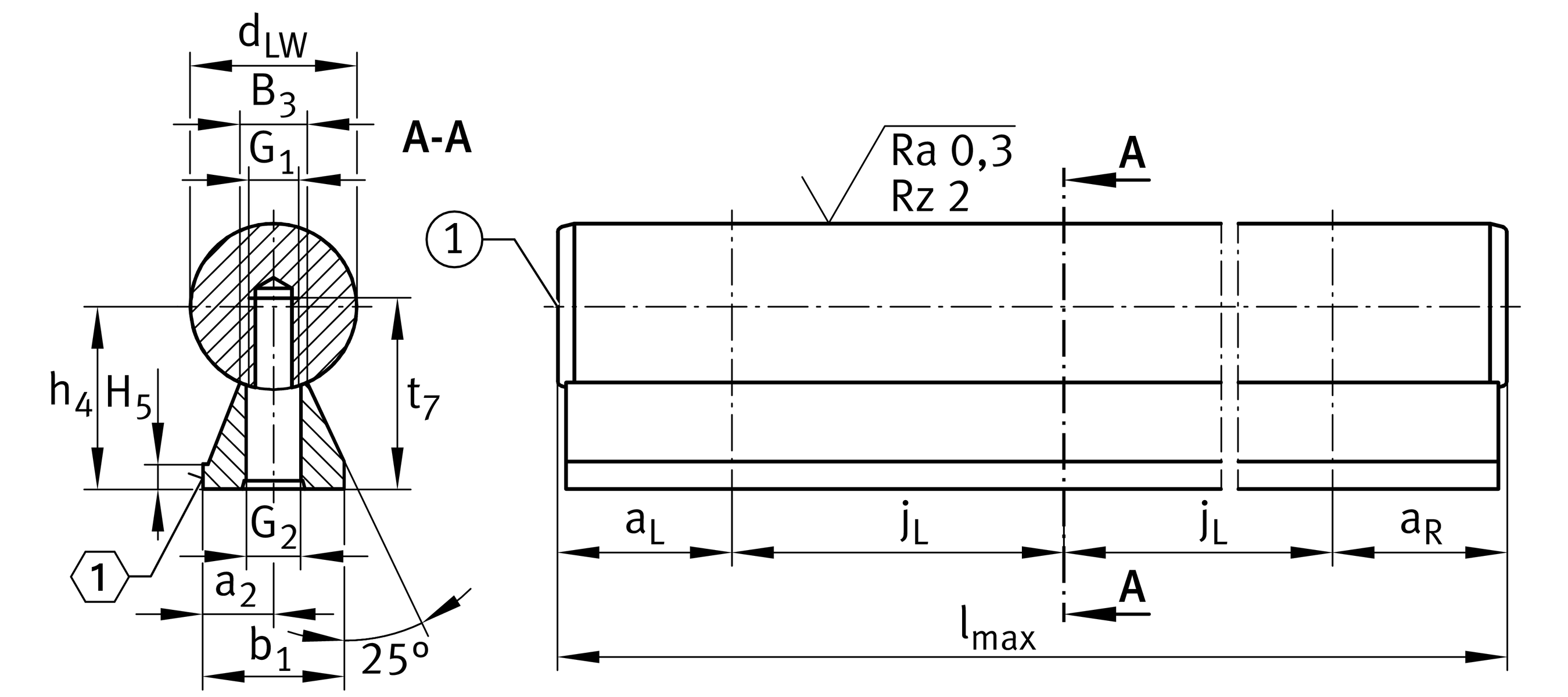

主要尺寸與性能資料
| dLW | 25 mm | Diameter shaft |
| dLW | 25 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter Shaft |
| h4 | 26 mm | Height dimension 1 |
| h4 tol | 0.02 mm | Height dimension tolerance (High) |
| h4 tol | -0.02 mm | Height dimension tolerance (Low) |
| b1 | 21 mm | Support rail width bottom |
| Lmax | 6,000 mm | Shaft and support rail unit length 2 |
| Ltol max | 3 mm | length tolerance (max) |
| Ltol min | -3 mm | length tolerance (min) |
| ≈m | 4.42 kg | 重量 |
安裝尺寸
| a2 | 10.5 mm | Bore G2 Distance stop |
| aL min | 20 mm | distance thread aL (min) 3 |
| aL max | 68 mm | distance thread aL (max) 3 |
| aR min | 20 mm | distance thread aR (min) 3 |
| aR max | 68 mm | distance thread aR (max) 3 |
| B3 | 9.8 mm | Support rail width prism |
| G1 | M8 | 螺紋尺寸 (shaft) |
| G2 | 9 mm | Bore connection construction |
| H5 | 3 mm | Support body height stop |
| jL | 75 mm | bore length ditance jL |
| t7 | 28.5 mm | Screw depth support rail 4 |
| ms | 4.42 kg/m | Shaft and support rail unit weight |
