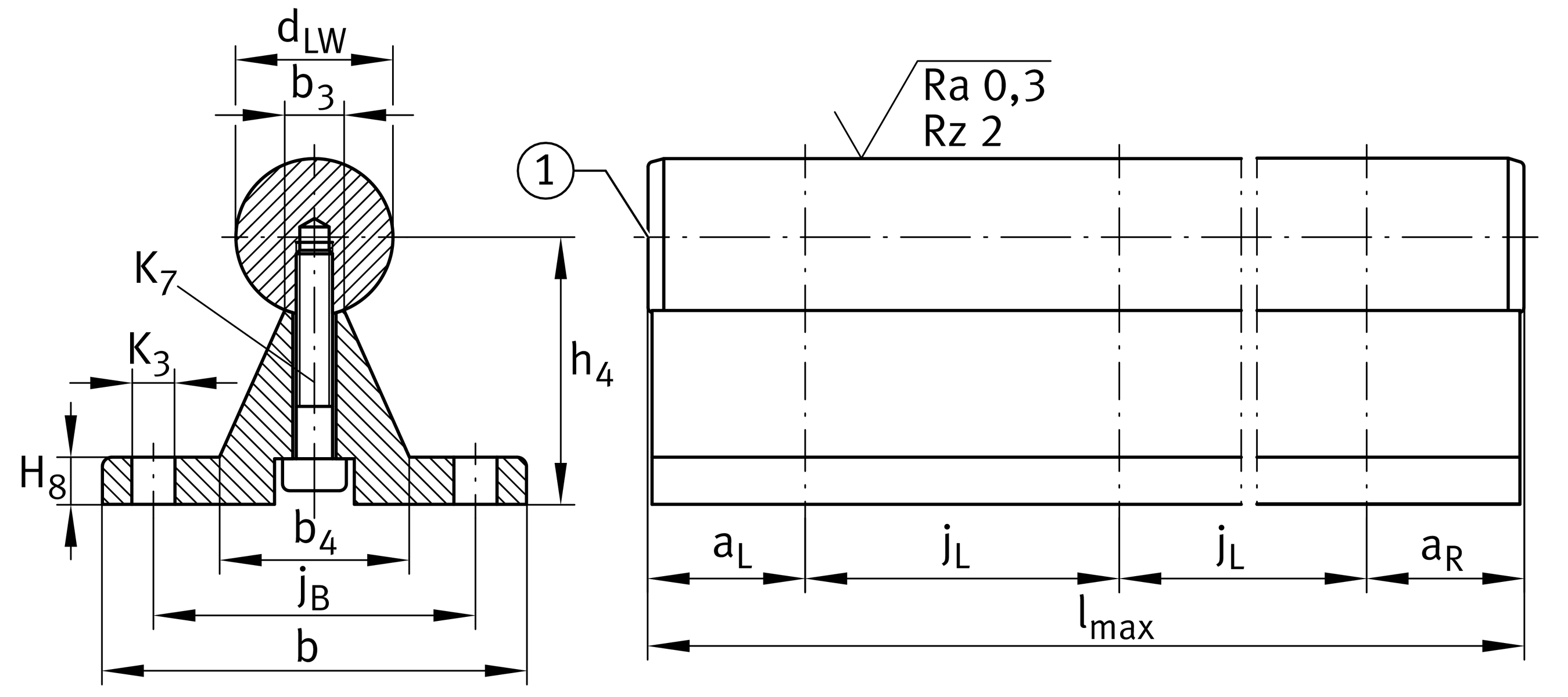

主要尺寸與性能資料
| dLW | 40 mm | Diameter shaft |
| dLW | 40 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter tolerance shaft |
| h4 | 50 mm | Height dimension 1 |
| h4 tol | 0.02 mm | Height dimension tolerance (High) |
| h4 tol | -0.02 mm | Height dimension tolerance (Low) |
| b | 73 mm | Support rail width bottom |
| Lmax | 6,000 mm | Shaft and support rail unit-length 2 |
| Ltol max | 3 mm | length tolerance (max) |
| Ltol min | -3 mm | length tolerance (min) |
| ≈m | 12.83 kg/m | 重量 |
安裝尺寸
| aL min | 20 mm | distance thread aL (min) 3 |
| aL max | 189 mm | distance thread aL (max) 3 |
| aR min | 20 mm | distance thread aR (min) 3 |
| aR max | 189 mm | distance thread aR (max) 3 |
| b3 | 14.5 mm | Support rail width prism |
| b4 | 39.4 mm | Support rail width top |
| H8 | 8 mm | Support rail 厚度 foot |
| jB | 55 mm | bore width distance jB |
| jL | 200 mm | bore length distance jL |
| K3 | 9 mm | Adjacent construction bore 4 |
| K7 | M10x35 | screw size |
| ms | 12.83 kg/m | Shaft and Support rail unit weight |
