FAG INA Schaeffler
FAG
EFS220

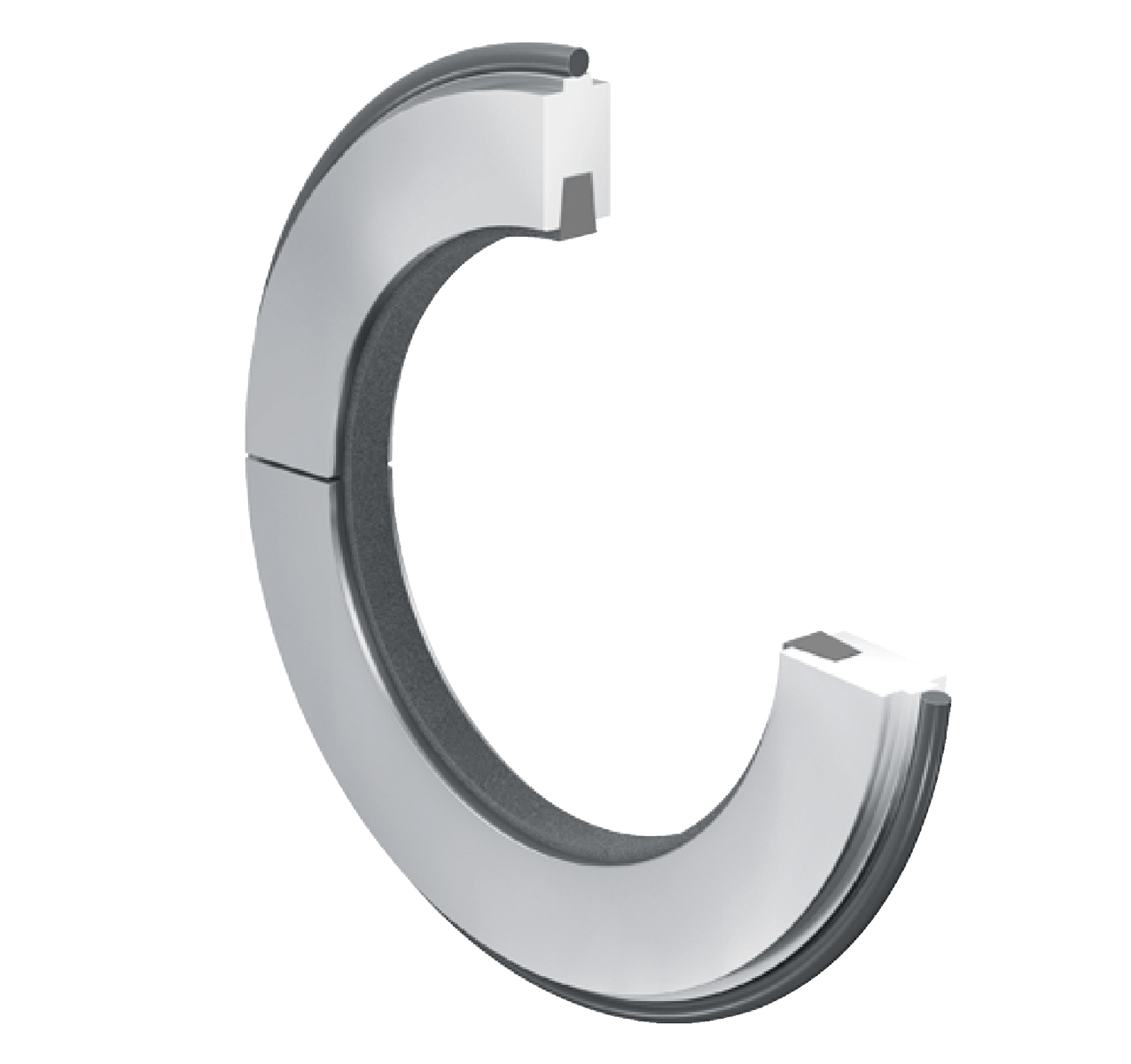

Sealing ring EFS220
加入詢價
主要尺寸與性能資料
d
100 mm
Shaft diameter
d2
115 mm
Sealing shaft diameter
B
13 mm
total width
D3
147.5 mm
Outside diamater
g
147.5 mm
Overhang 軸承座
D2
137.5 mm
Diameter Sealingseat
≈m
370.5 g
重量
