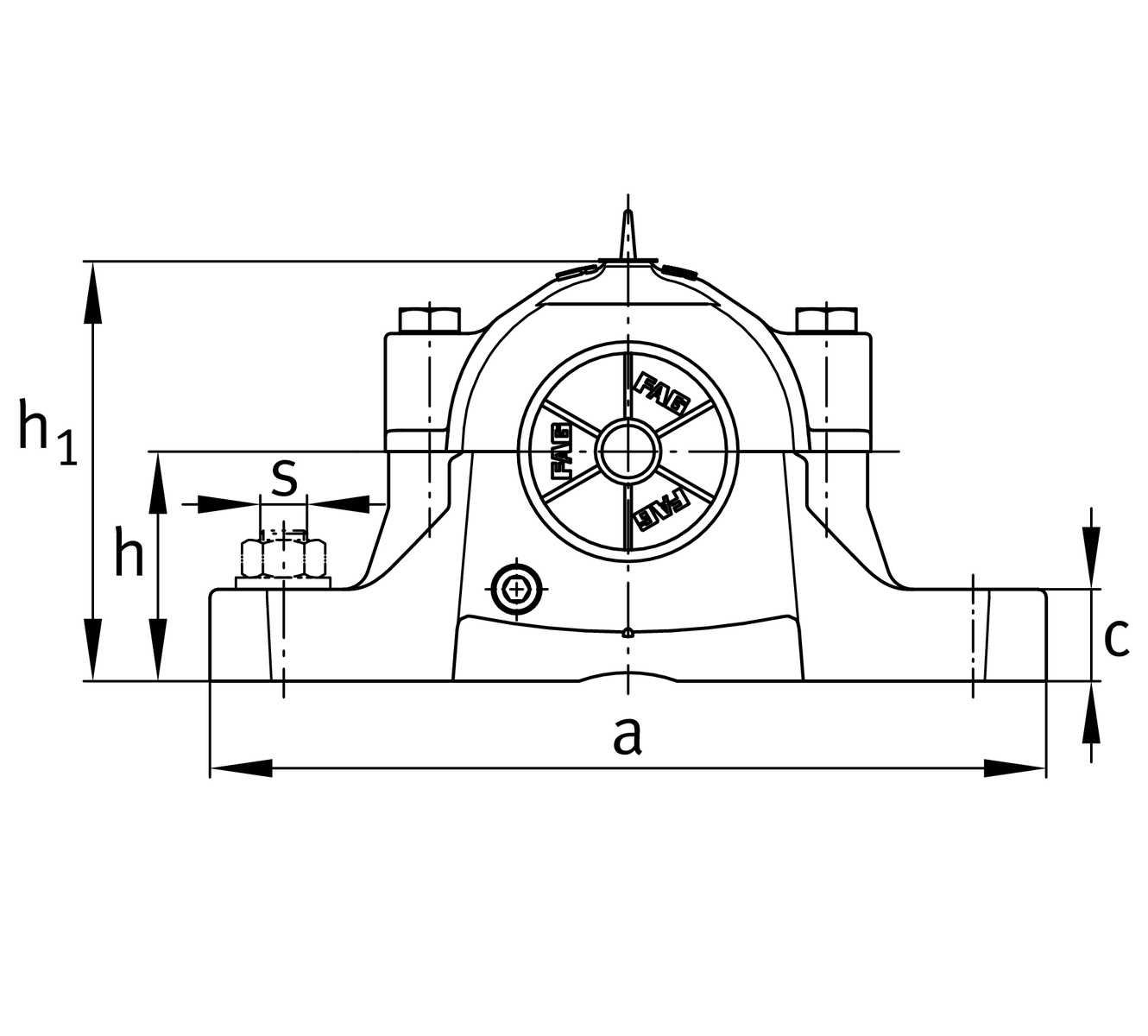

主要尺寸與性能資料
| D | 62 mm | 外徑 bearing |
| a | 185 mm | Length base |
| h1 | 89 mm | 高度 |
| g | 77 mm | Width 軸承座 body |
| K | 32 mm | Width bearing seat |
| ≈m | 2.13 kg | 重量 |

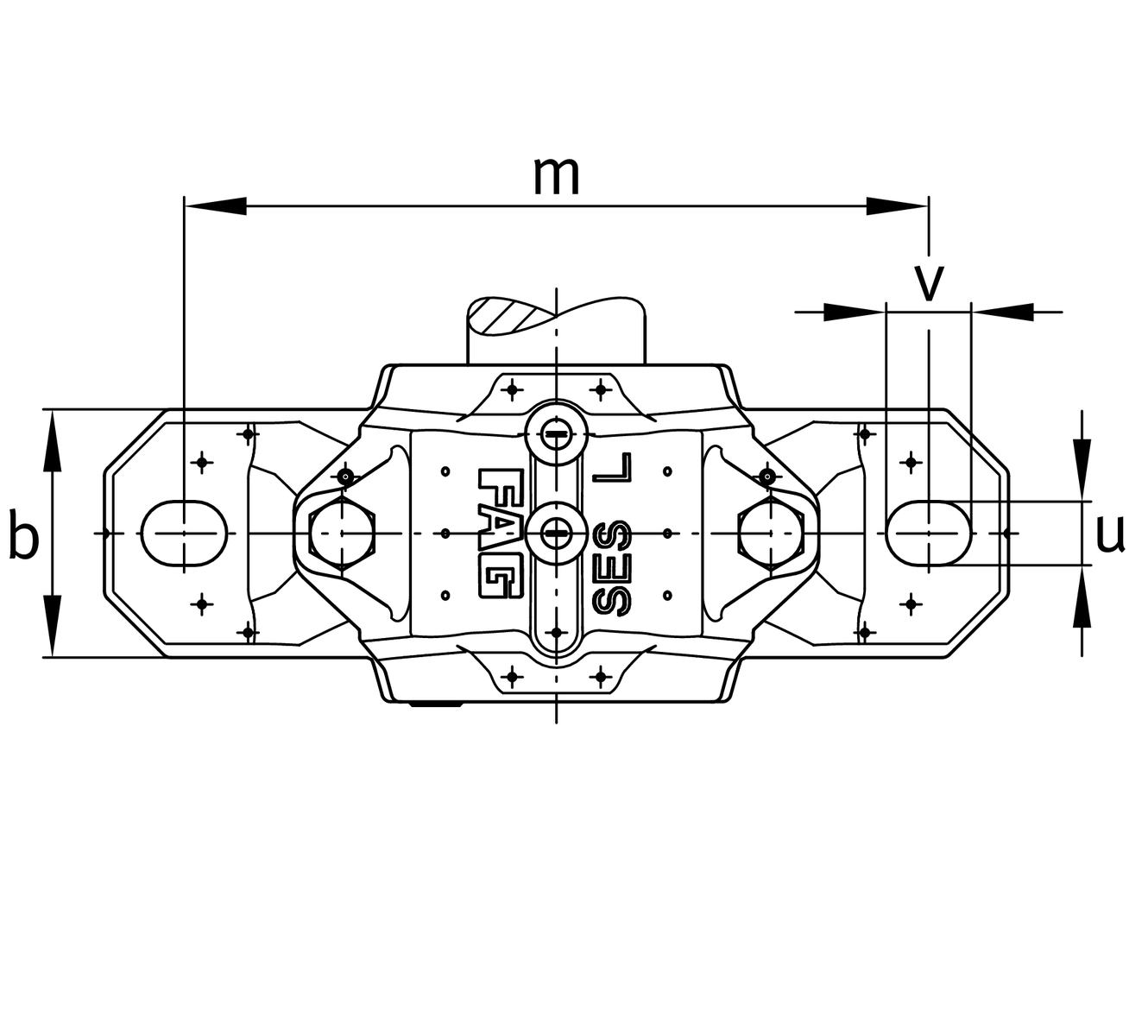

尺寸
| b | 52 mm | Width base |
| c | 22 mm | Height base |
| h | 50 mm | Base to shaft centerline height |
| m | 150 mm | 固定內孔距離 |
| s | 12.7 mm | Screw size |
| s | M12 | Size of fixing screws |
| u | 15 mm | Width slot |
| v | 20 mm | Length slot |

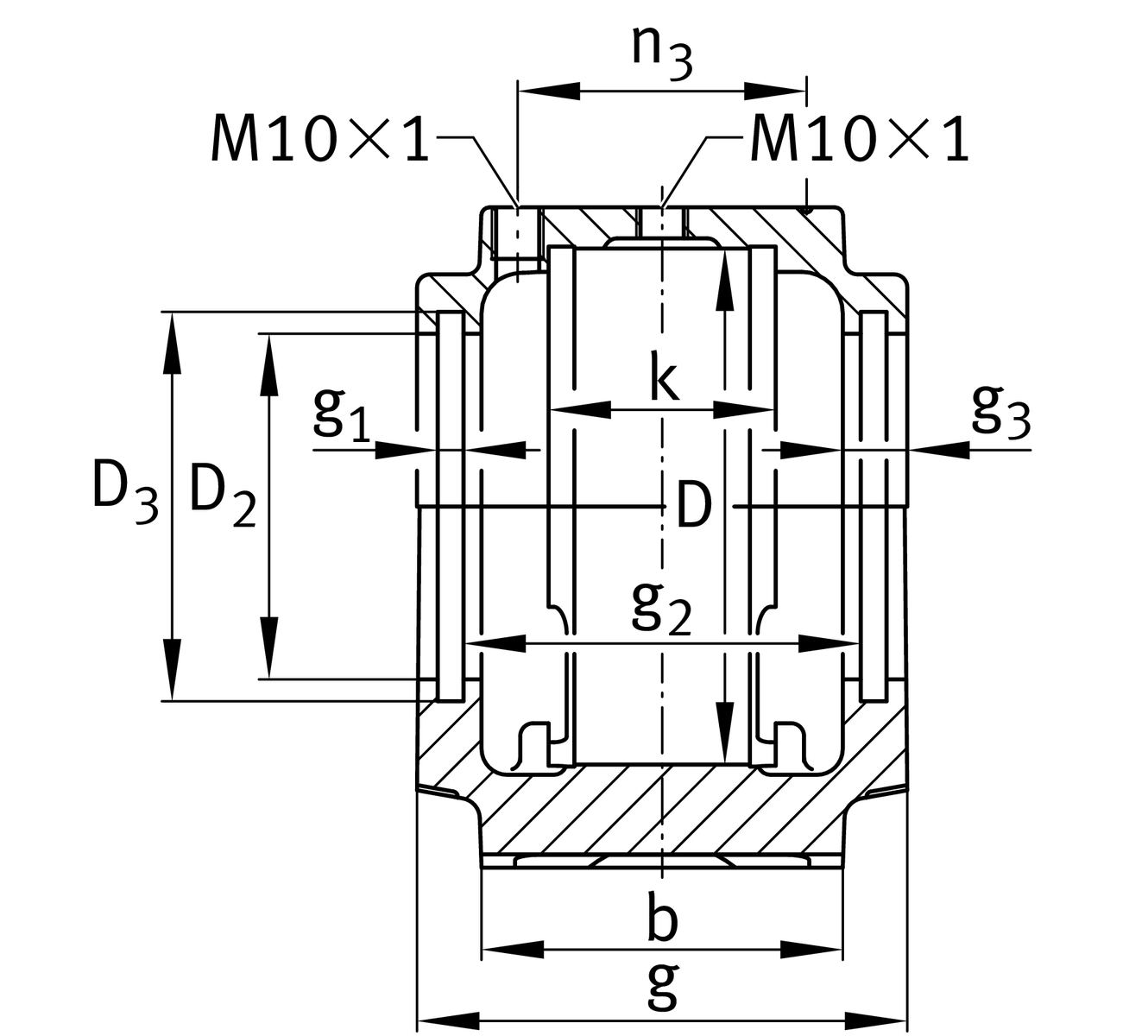

| D2 | 36.5 mm | Diameter sealing |
| D3 | 44.5 mm | Diameter sealing groove |
| D5 | 42.7 mm | 外徑密封ing labyrinth |
| g1 | 5 mm | Width sealing groove |
| g2 | 62 mm | Distance sealing |
| g3 | 10 mm | 壁厚 |
| g4 | 23 mm | Distance oil lubricatian |

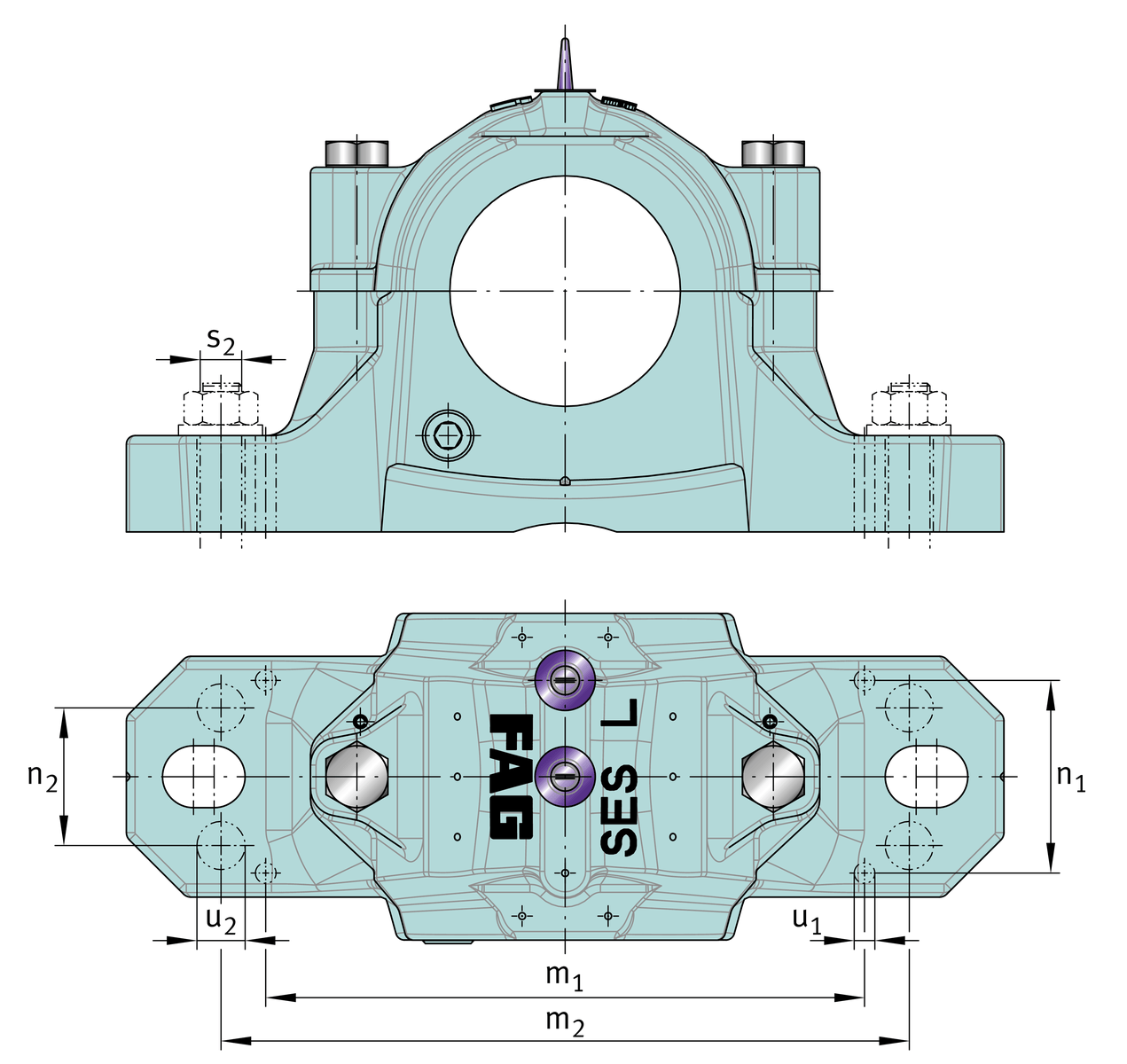

| m1 | 119 mm | Distance holes aligned pins m1 |
| n3 | 42 mm | Distance lubrication |
| n4 | 63 mm | Distance lubriaction sealing |
| u1 | 4 mm | 內徑 u1 |
| u2 | 9 mm | 內徑 u2 |
