FAG INA Schaeffler
FAG
EDH209-309

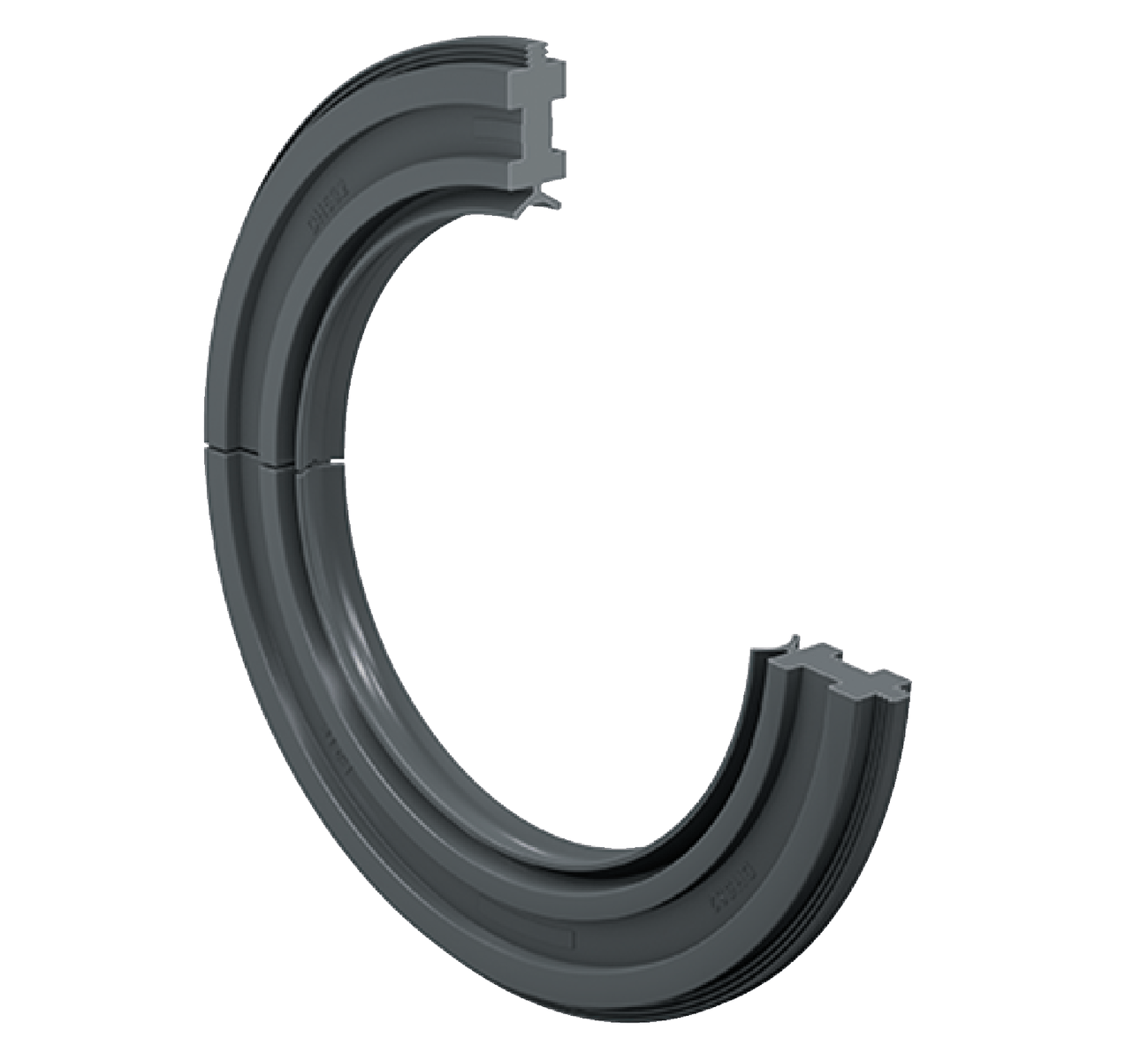

Sealing ring EDH209-309
加入詢價

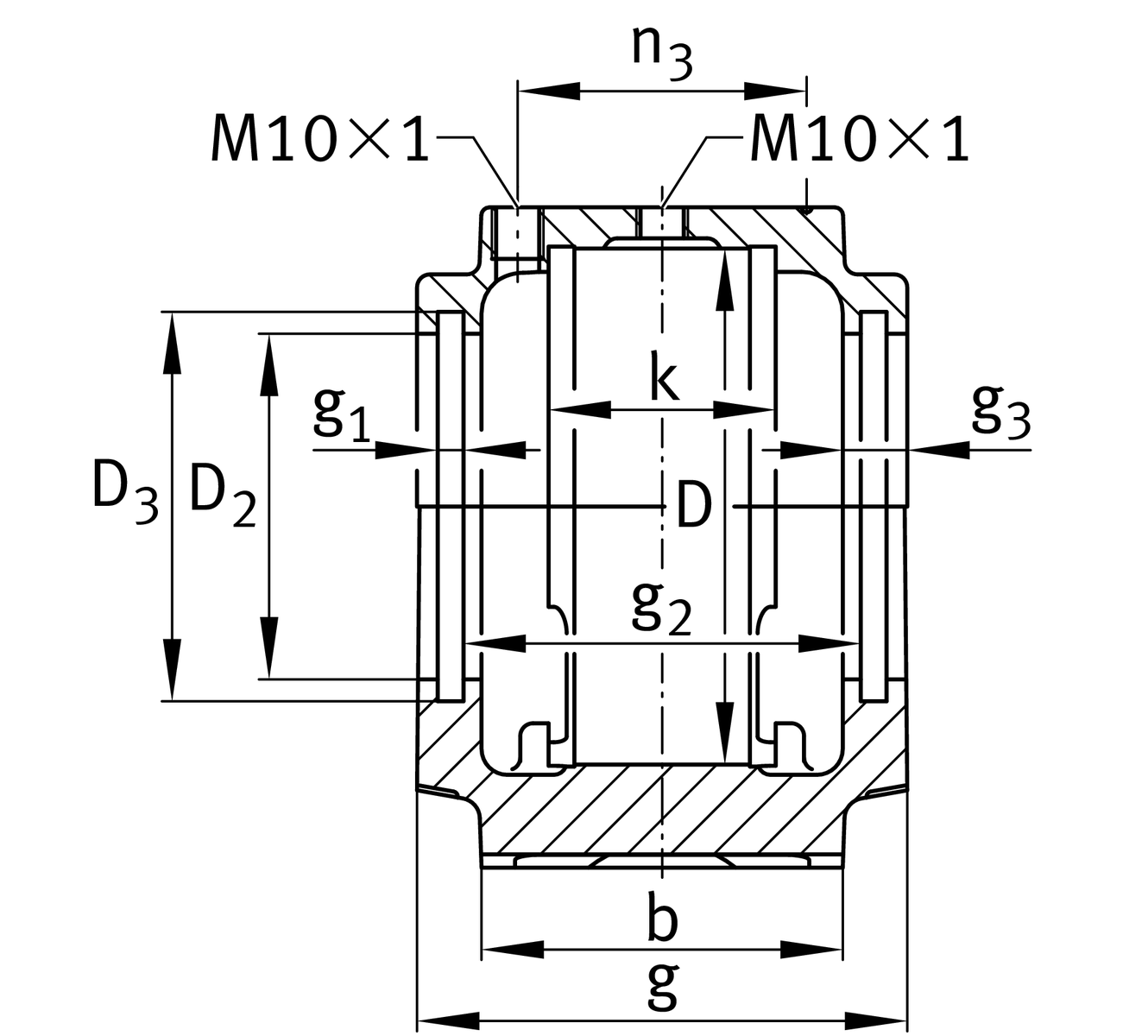

主要尺寸與性能資料
d
45 mm
Shaft diameter
d2
55 mm
Sealing shaft diameter
B
11 mm
total width
D3
75.5 mm
Outside diamater
D2
67 mm
Diameter Sealingseat
≈m
12.75 g
重量
