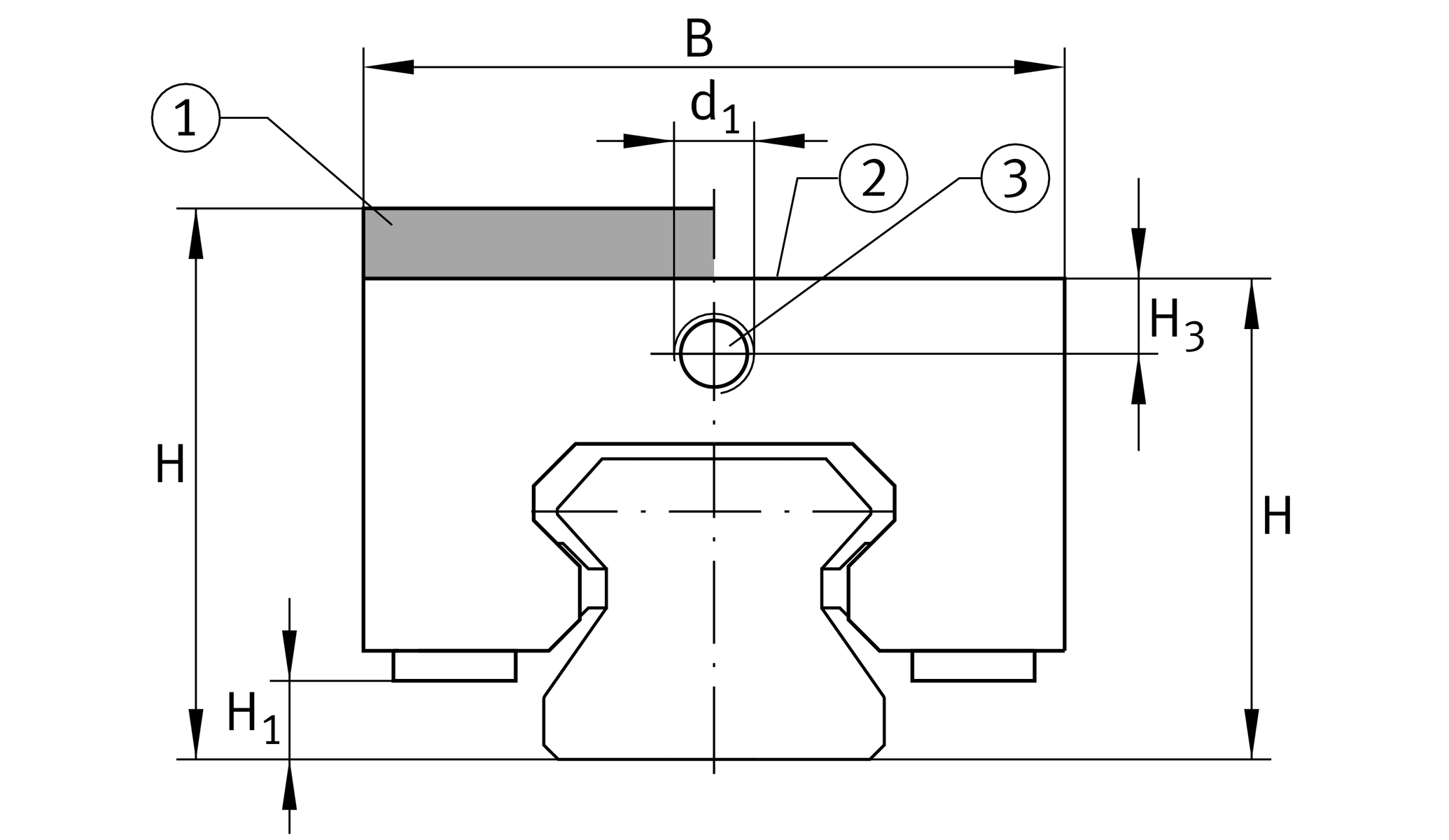

主要尺寸與性能資料
| H | 70 mm | height sytem |
沒有 | adapter plate | |
| B | 99 mm | width of braking and clamping element |
| L | 170 mm | length braking and clamping element |
5,100 N | clamping force 1 | |
| ≈m | 6.74 kg | 重量 |

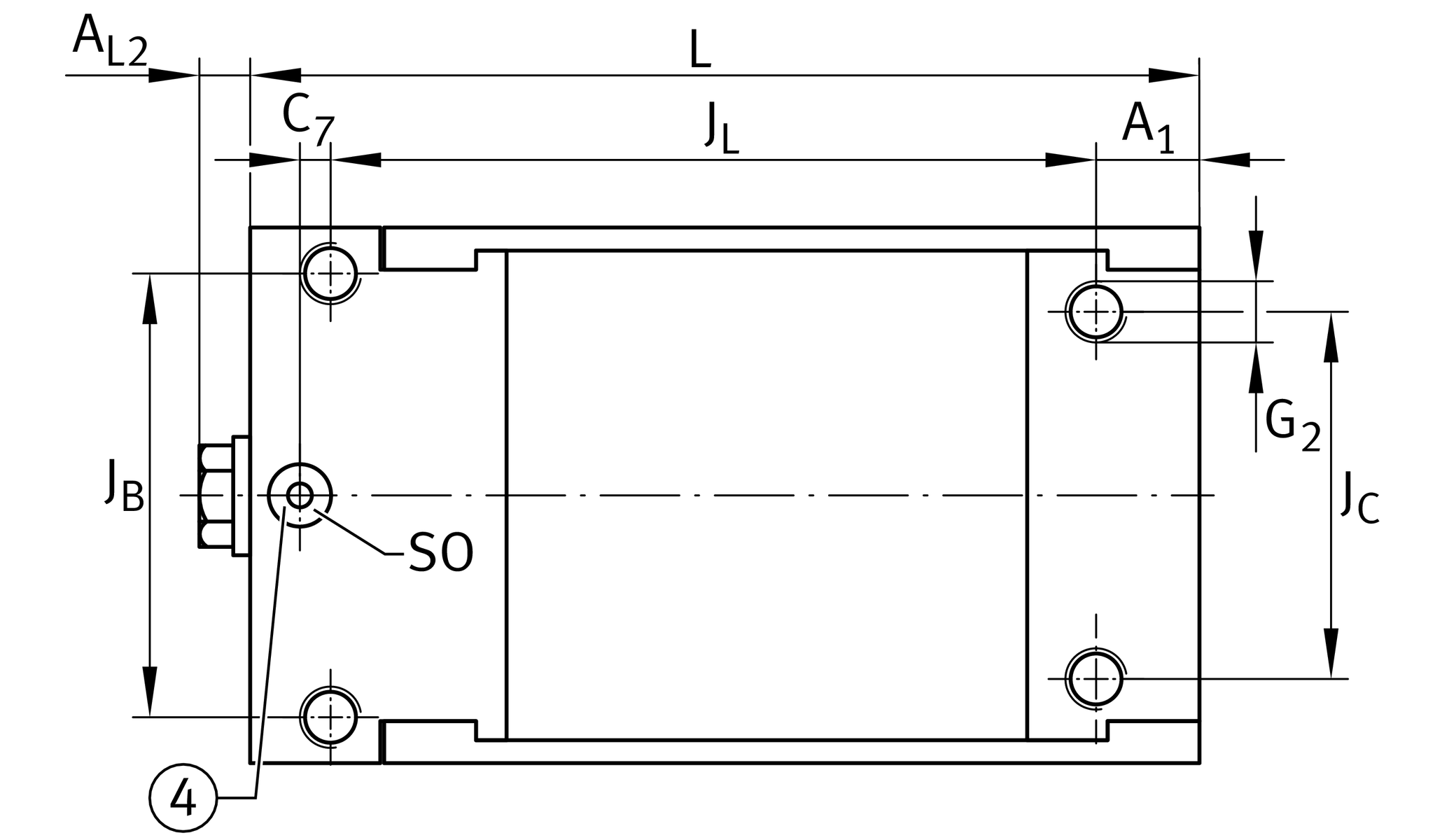

尺寸
| JB | 80 mm | hole pattern |
| JC | 72 mm | hole pattern |
| A1 | 18 mm | distance |
| JL | 138 mm | hole pattern |
| H1 | 17 mm | space (system) |
| H3 | 11.75 mm | mounting dimension |
| AL2 | 6 mm | distance |
| d1 | M10x1 | size thread |
| G2 | M12 | size thread above for DIN ISO 4762-12.9 |
| MA | 144 Nm | tightening torque above 2 |
您目前的產品型號
| Size code | 55 | |
| Version | D |
