安裝尺寸

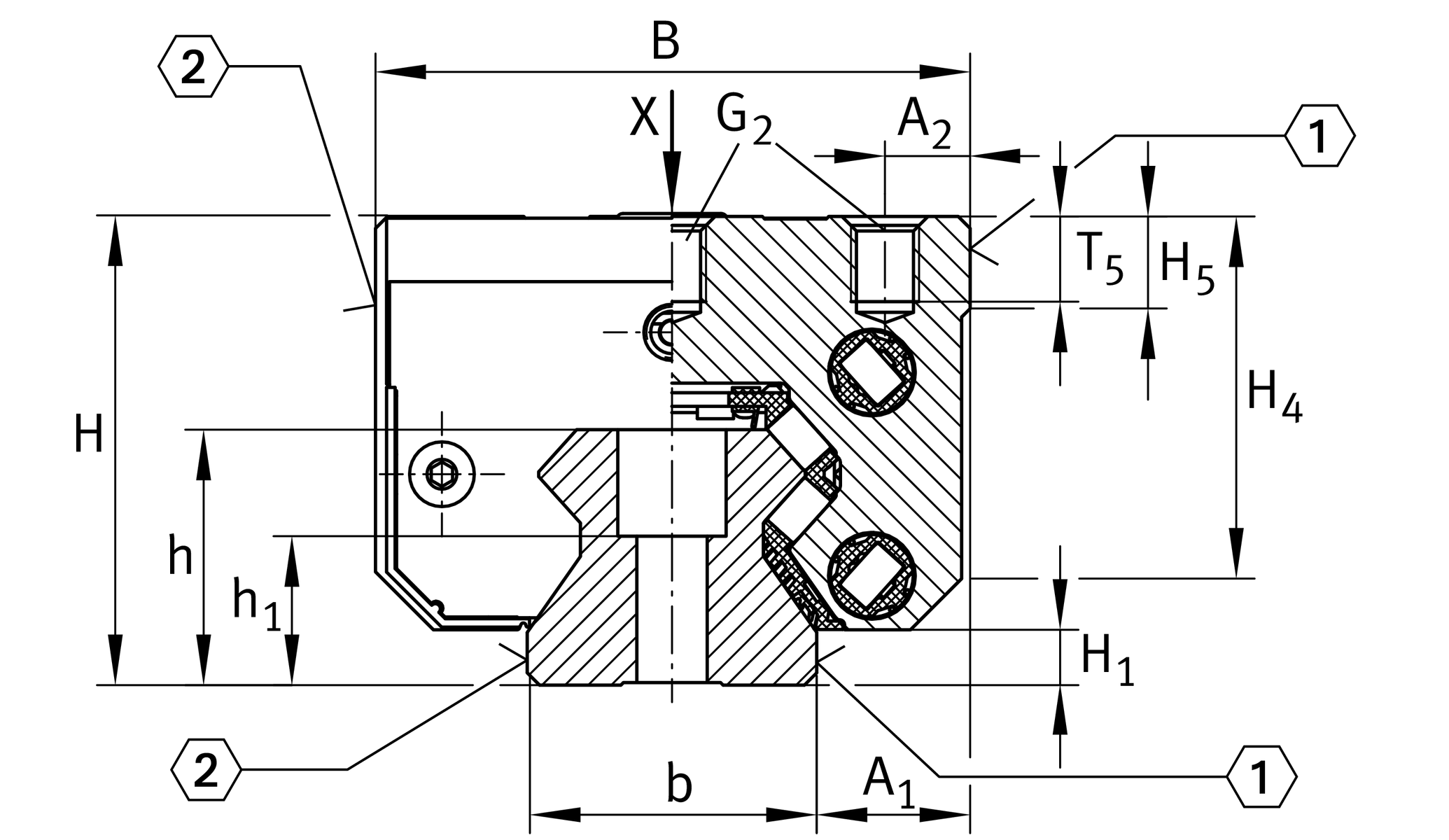

| A1 | 23.5 mm | |
| JB | 75 mm | |
| b | 53 mm | width rail |
| Tolb | -0.005 mm | 公差上限 |
| Tolb | -0.035 mm | 較低的公差 |
| A2 | 12.5 mm | |

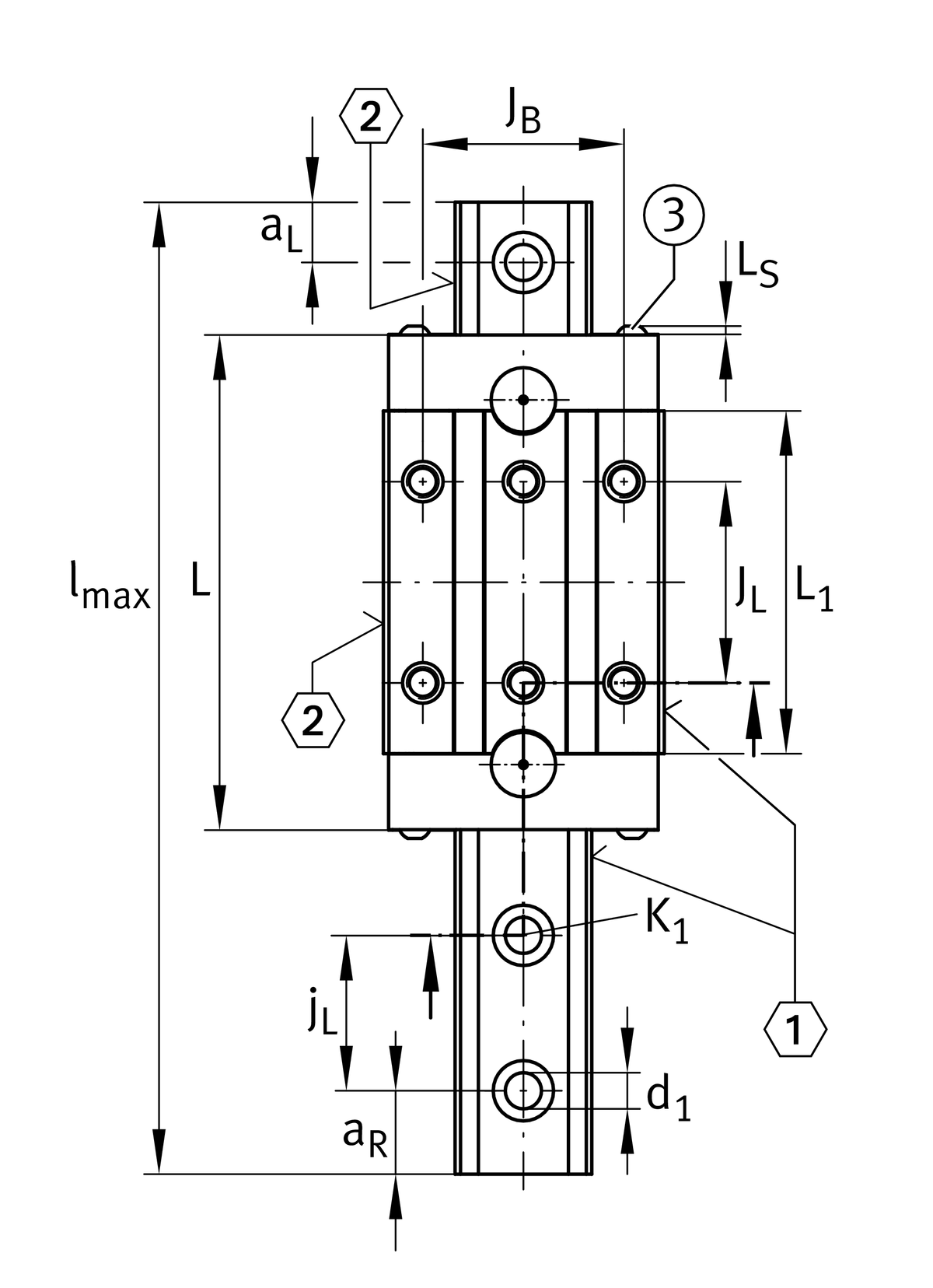

| L1 | 127 mm | |
| JL | 75 mm | |
| jL | 60 mm | |
| aL min | 20 mm | 1 |
| aL max | 47 mm | 1 |
| aR min | 20 mm | Distance 1 |
| aR max | 47 mm | 1 |
| H1 | 11 mm | |
| H4 | 61.4 mm | |
| H5 | 16 mm | |
| T5 | 15 mm | |
| h | 45 mm | |
| h1 | 22.5 mm | |
| Tol h1 | 0.5 mm | 公差上限 |
| Tol h1 | -0.5 mm | 較低的公差 |
| G2 | M12 | fixing screws |
| G2 MA | 140 Nm | maximum tightening torque 2 |
| K1 | M14 | fixing screws |
| K1 MA | 220 Nm | maximum tightening torque 2 |
| d1 | 12.5 mm | |

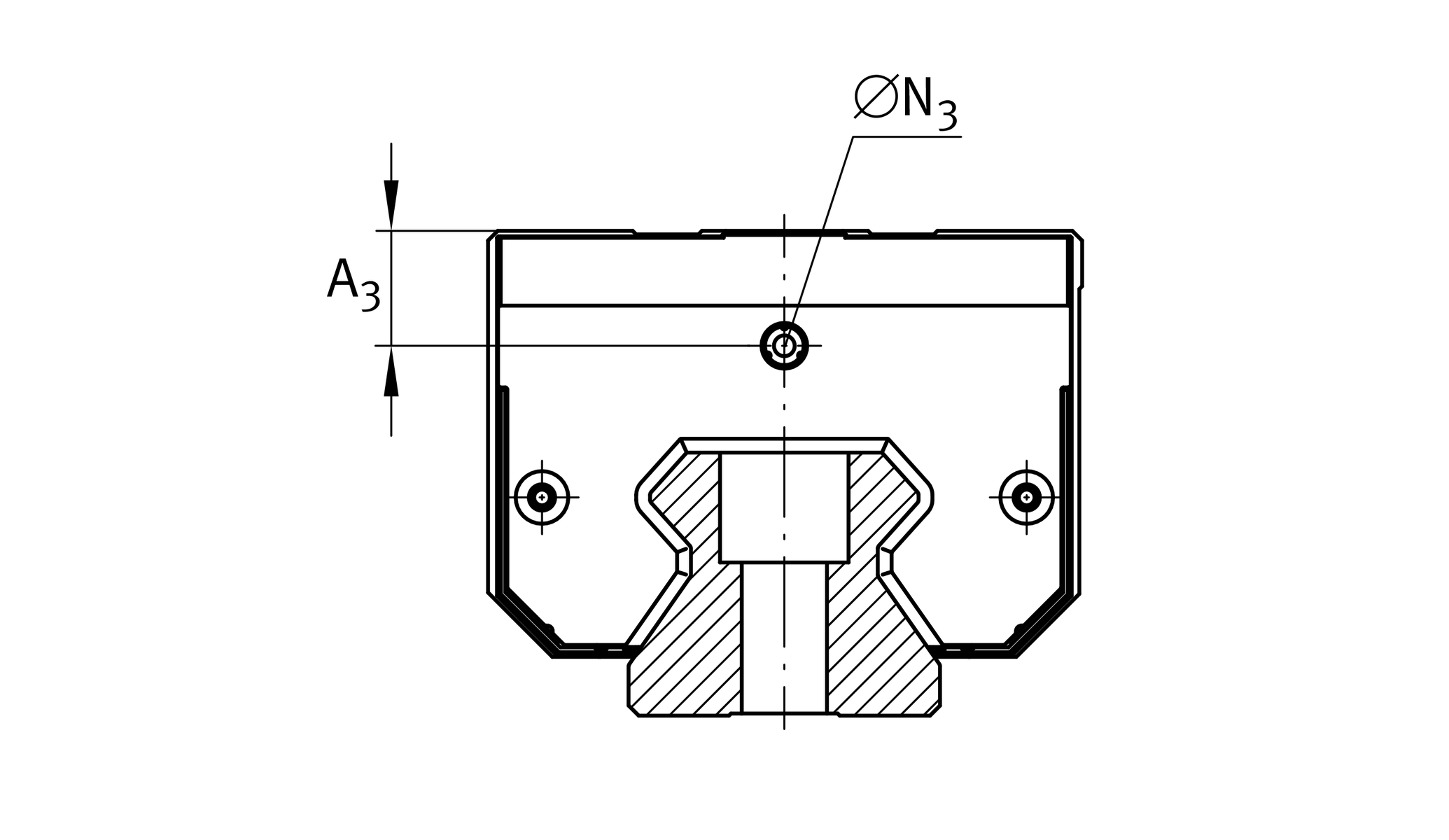

| A3 | 18.1 mm | position lubrication adapter |
| N3 | M6 | lubrication connector 3 |

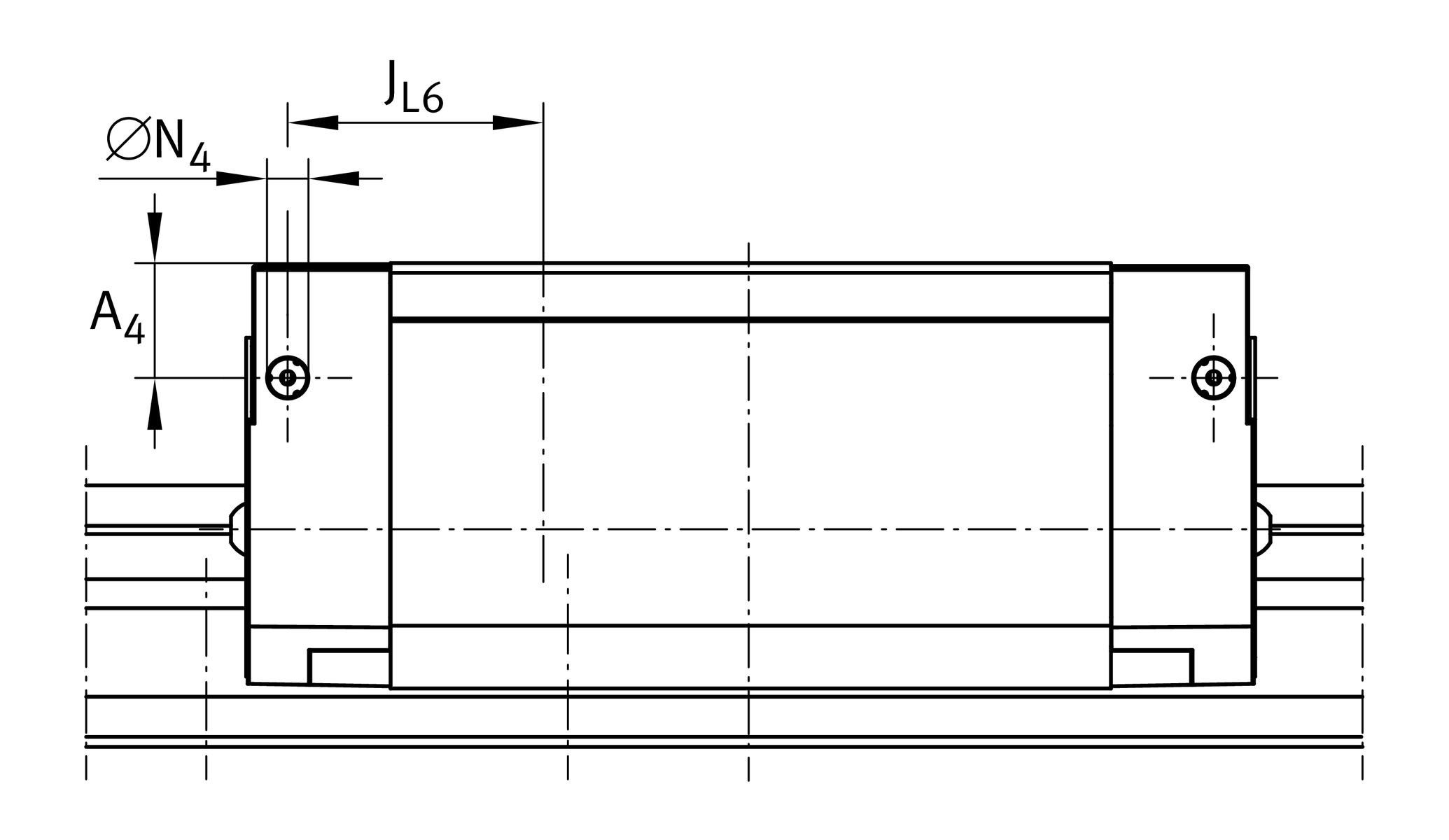

| A4 | 18.1 mm | position lubrication connector |
| N4 | M6 | lubrication connector 3 |
| JL6 | 42.9 mm | position lubrication connector |

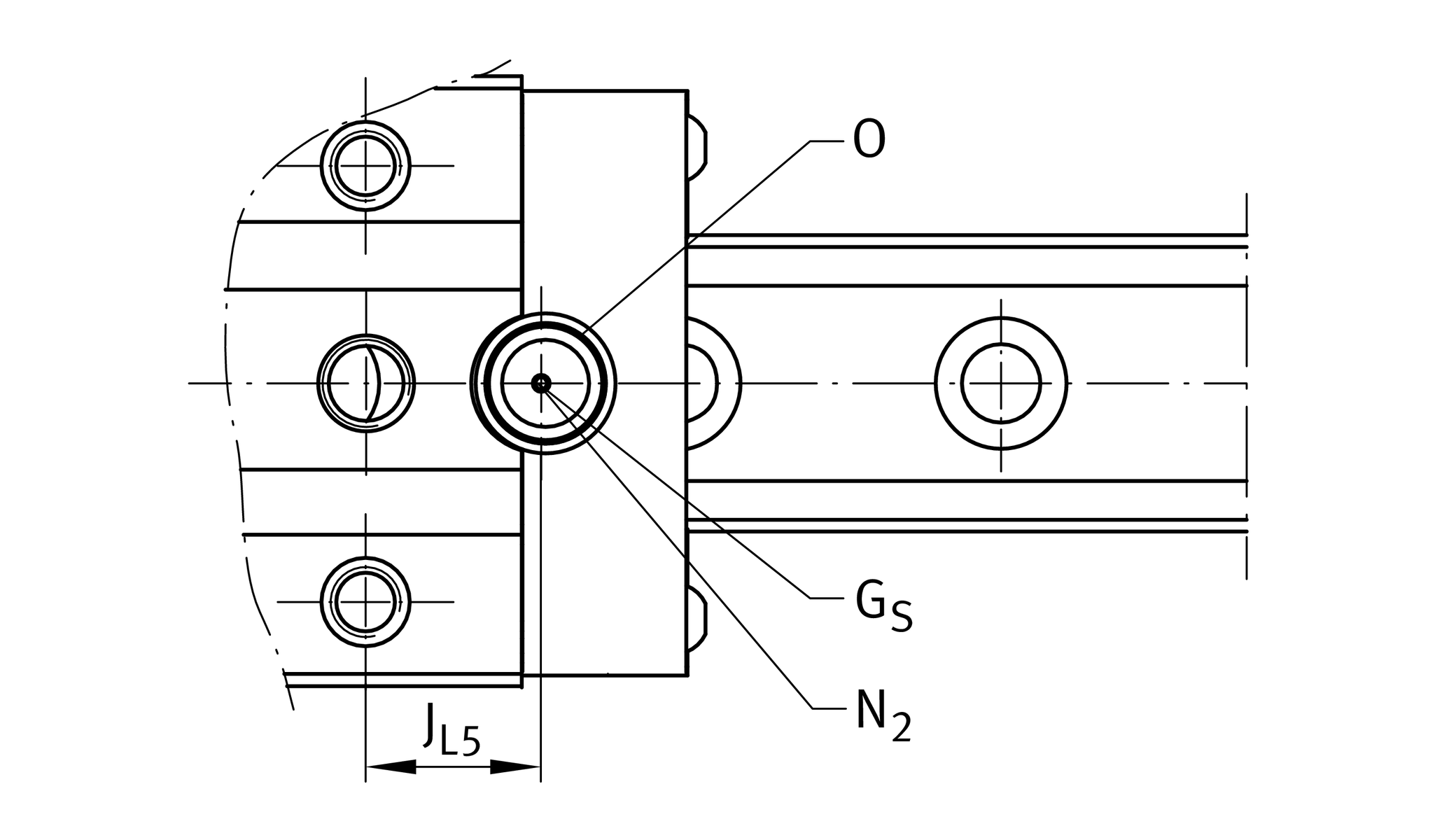

| N2 max | 6 mm | 4 |
| JL5 | 31.6 mm | 5 |
| GS | M4x4 | |
| O | 10x1,5 | O-Ring DIN 3771 |
Main dimensions
| lmax | 5,880 mm | Max length single piece guideway 6 |
| H | 80 mm | height system |
| B | 100 mm | width carriage |
| L | 172.7 mm | overall length carriage 7 |
科技數據
| C | 136,000 N | dynamic load rating 8 |
| C0 | 320,000 N | static load rating 8 |
| M0x | 3,287 Nm | static moment rating about X axis |
| M0y | 7,404 Nm | static moment rating about Y axis |
| M0z | 6,667 Nm | static moment rating about Z axis |
Related products
RWU55-F-H | Carriage | |
TSX55-E | Guideway |
您目前的產品型號
| Size code | 55 | |
| Carriage design | H | High carriage |
