科技數據
Piston pump | Functional principle | |
| VLub | 1,000 cm³ | Lubricant volume |
0.15 cm³ | Metering quantity (per outlet and stroke/impulse) | |
| pop | 70 bar | Operating pressure, max. |
Lubricating oil > 68 mm²/s | Lubricant | |
| npb | 4 | Number of pump bodies |
| nout | 8 | Number of outlets |
≤ 8 | Number of lubrication points: direct | |
≤ 16 | Number of lubrication points: with splitters | |
> 16 | Number of lubrication points: with progressive distributors | |
PA hose | Connection | |
| Uop | DC 24 V | Operating voltage |
M12 x 1, 4 pin | Connection plug for multi-function interface | |
| Imax | ≤ 350 mA | Current consumption (DC 24 V) |
microelectronic | Controller (integrated) | |
PLC | Controller (extern) | |
Integrated, electronic | Monitoring: pressure | |
Integrated, reed switch | Monitoring: fill level | |
Empty level, back pressure, internal error (PLC) | Error message | |
IP65 | Protection class | |
Aluminium (powder coated), polyamide | 軸承座 material | |
| tmin | -20 °C | Operating temperature, min. |
| tmax | 70 °C | Operating temperature, max. |
vertical | Mounting position | |

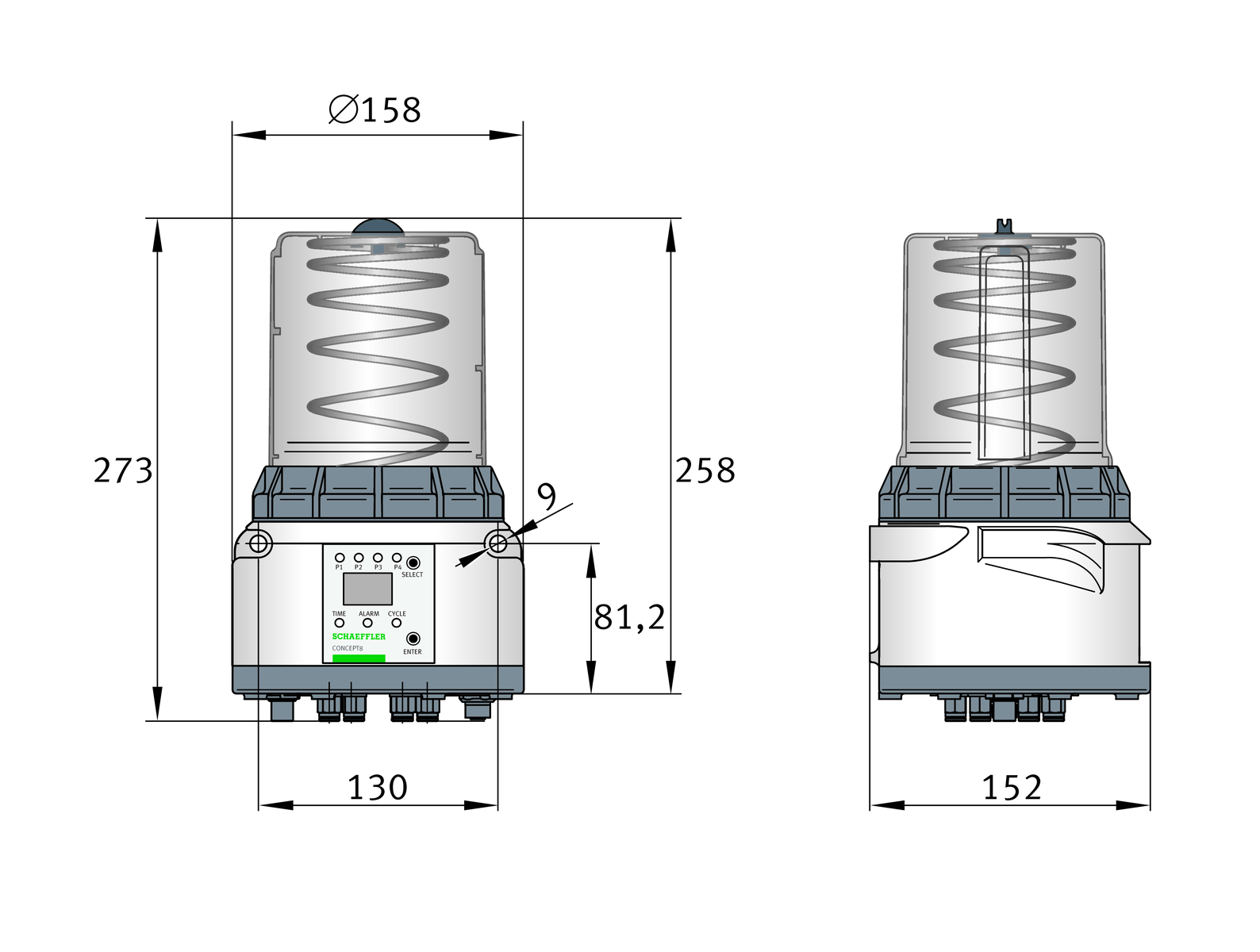

158 x 273 x 152 | Dimensions (mm) | |
| ≈m | 3 kg | 重量 |
您目前的產品型號
| Drive System | PP | Piston pump |
| Lubricant volume | V800/1000 | 800/1000 cm³ |
