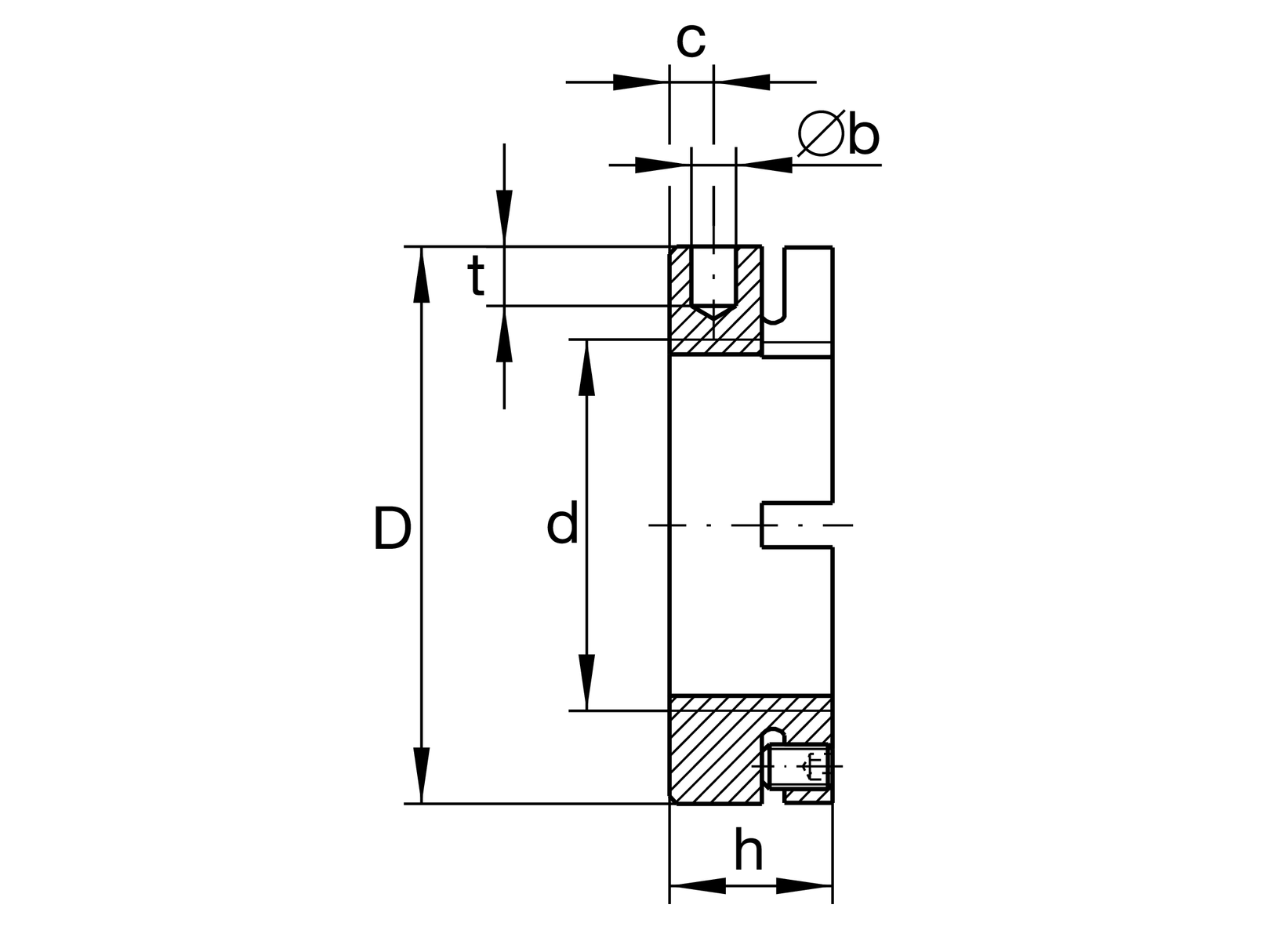

主要尺寸與性能資料
| d | M55X2 | 線 |
| D | 85 mm | 外徑 |
| h | 26 mm | 高度 |
| FaB | 520,000 N | Breaking load, axial |
| ML | 320 Nm | Breakawag |
| MAL | 95 Nm | Mounting torque reference |
| Mm | 7.7 kg*cm2 | 質量慣性矩 |
| ≈m | 563 g | 重量 |
安裝尺寸
| Mm | 15 Nm | Mounting torque set screw |

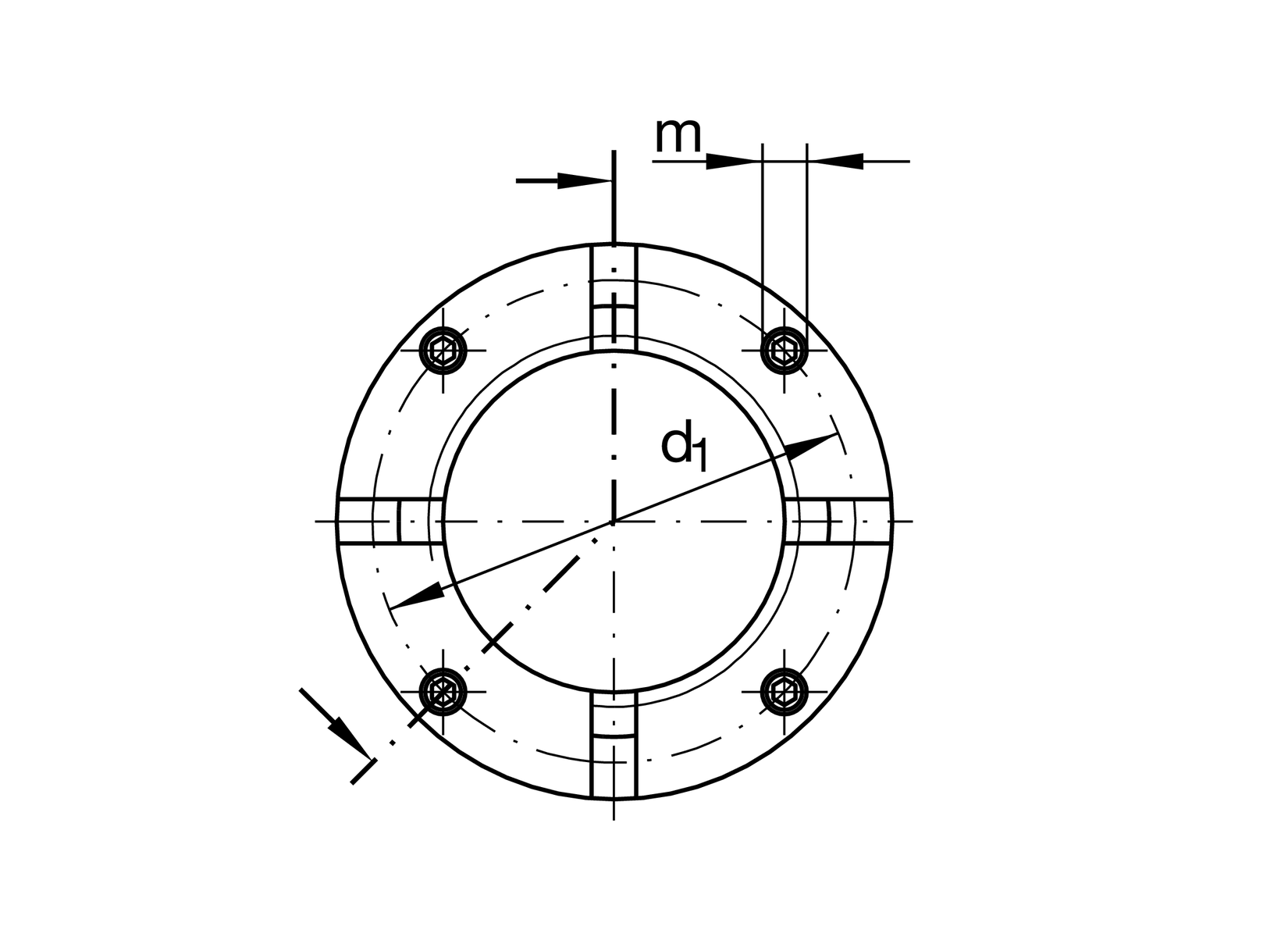

尺寸
| b | 6 mm | 內徑 blind hole |
| t | 8 mm | Depth blind hole |
| d1 | 75 mm | Pitch circle diameter 1 (holes) |
| c | 8 mm | Distance bore |
| m | M8 | Threaded - threaded pin |
H11 | 內徑 blind hole 軸承座 fit |
